2-2 Memory Module Installation
This motherboard provides two 240-pin DDR III DUAL INLINE MEMORY MODULES
(DIMM) socket for DDR III memory expansion available to maximum memory volume
of 8 GB DDRIII SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1 DDR III 800/DDR III 1066/ DDR III1333 X1 4GB
DIMM2 DDR III 800/DDR III 1066/ DDR III1333 X1 4GB
Total System Memory (Max 4GB) 2 8GB
Recommend DIMM Module Combination
：
1. One DDRIII Memory Module ----Plug in DIMMM1.
2. Two DDRIII Memory Modules---Plug in DIMM1 & DIMM2 for Dual channel function
Dual channel Limited!
1. Memory modules plugged in the same color DIMM must be of the same type, same
size, and same frequency for dual channel function.
2. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1
& DIMM2.
Install DDR SDRAM modules to your motherboard is not difficult, you can refer to
figure below to see how to install DDRIII 800/ DDRIII 1066/DDRIII 1333 SDRAM
module.

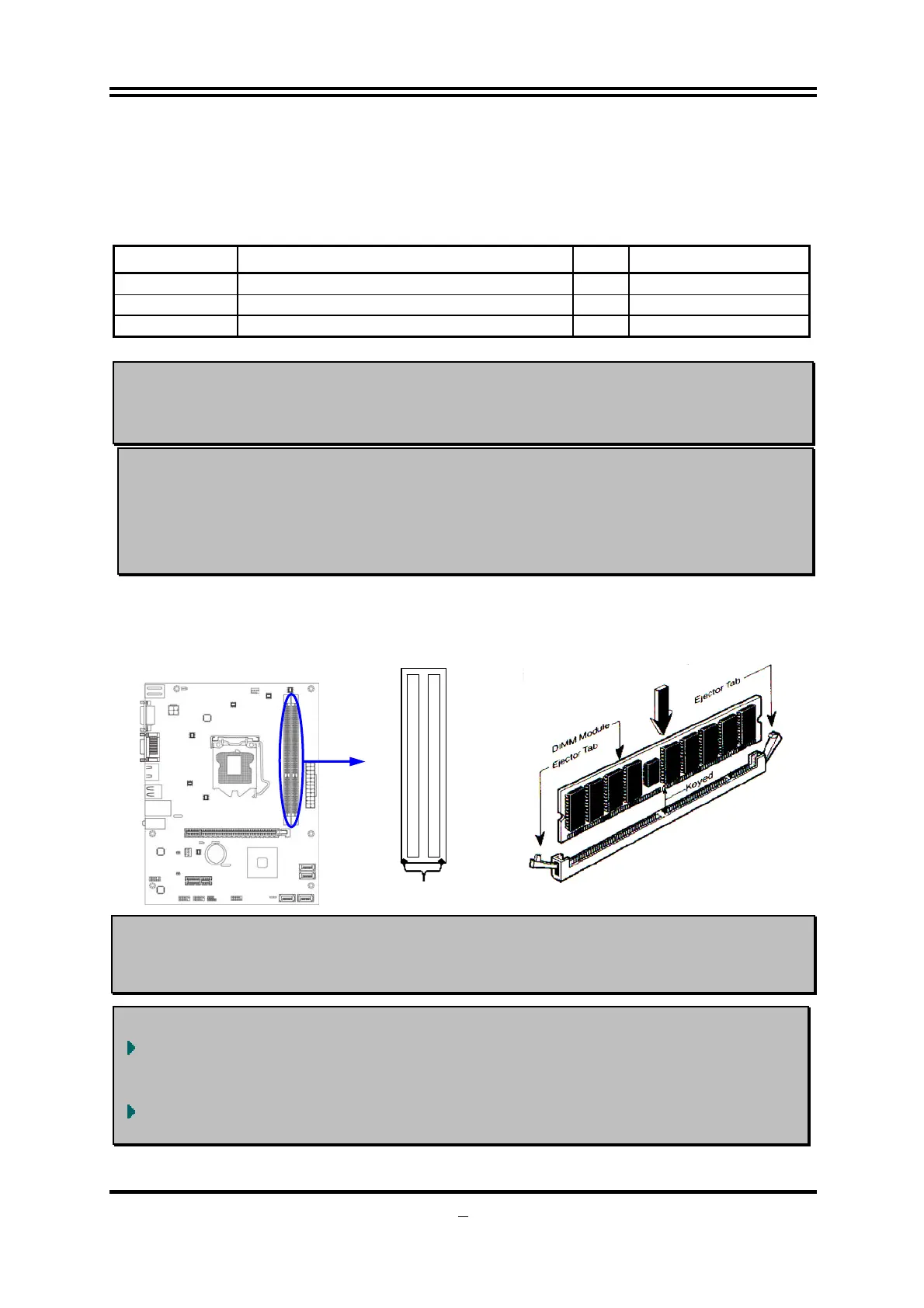

DIMM2 (BANK2+BANK3)
DIMM1 (BANK0+BANK1)
DIMM1 & DIMM2: Dual Channel
NOTICE!
When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides.
Installation Tips：
Open the two plastic clips of memory slots then push down the module
vertically into the slot. See to it that the hole of the module fit into the notch of
the slot;
The two plastic clips will automatically close if the memory module is fitted in a
proper way.
