Intel H61 Series User Manual

12

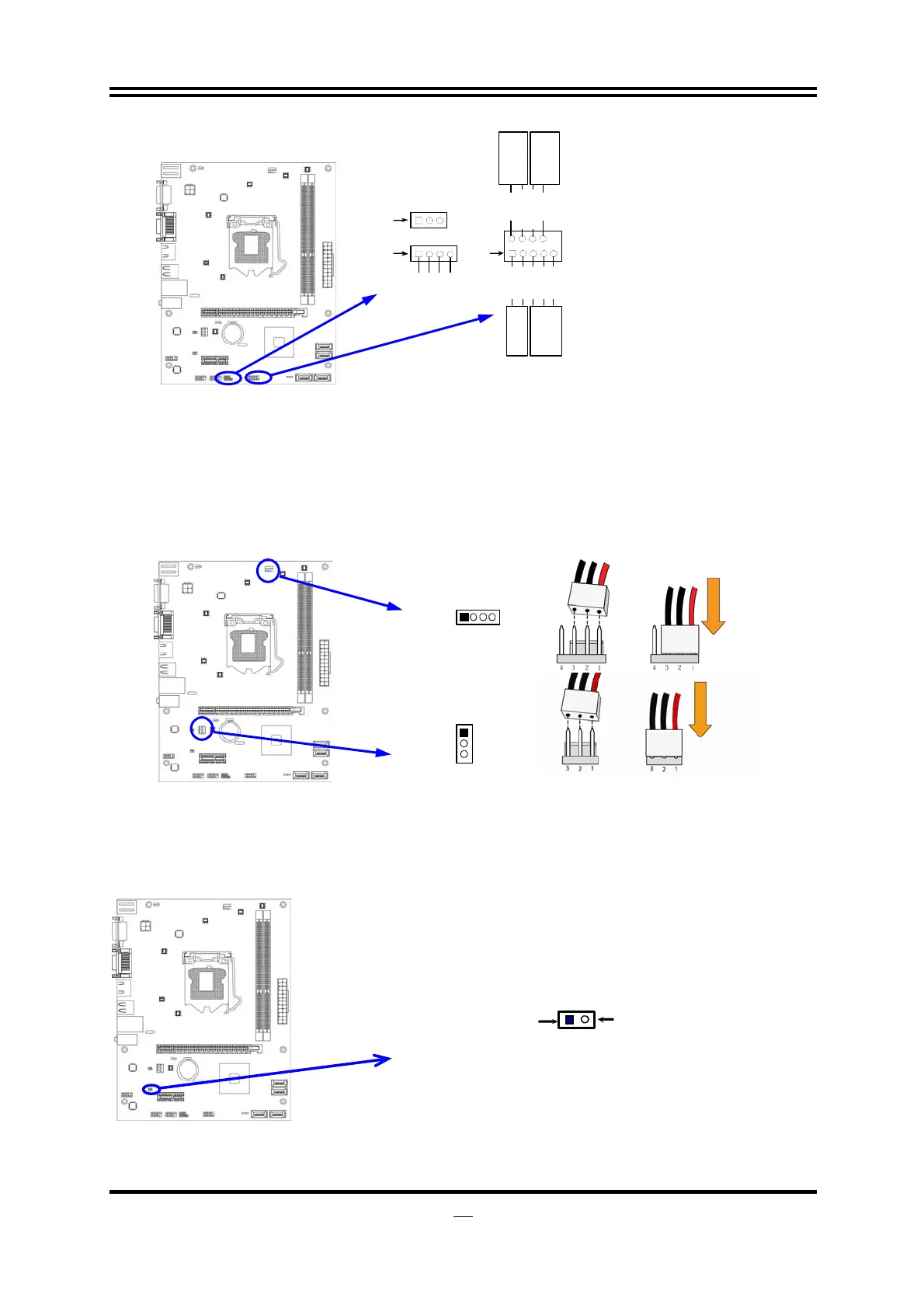

System Case Connections
HDLED
RESET
VCC5
GND
VCC5
PWR LED
PWRBTN
PWRBTN PWRLED
HDDLE RSTSW
NC
GND
JW FP
Pin 1
SPEAK
SPKR
GND
NC
VCC5
Pin 1
PWRLED
Pin 1
(8) FAN Headers: SYSFAN1 (3-pin), CPUFAN1 (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending
on the fan manufacturer, the wire and plug may be different. The red wire should
be positive, while the black should be ground. Please connect the fan’s plug to
the board taking into consideration the polarity of connector.
SYSFAN1
3
1
14
CPUFAN
(9) SPDIF Out header: HDMI_SPDIF1
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only
when your stereo system has digital input function.
HDMI_SPDIF Header
1
GND
2
HDM I _S PDI F_OUT

Intel H61 Series Specifications

General

Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Max Memory	16 GB
Memory Slots	2
SATA Ports	4 x SATA 3Gb/s
USB Ports	10 x USB 2.0
PCIe 3.0	No
RAID Support	No
PCI Express Slots	1 x PCIe 2.0 x16
Integrated Graphics	Supported (depends on CPU)
Audio	Realtek ALC887
LAN	10/100/1000 Mbps Ethernet
