Intel NUC6i5SYH - Secure 2.5 Drive; Close the Chassis; Closing the Intel NUC Chassis

Intel NUC Kit NUC6i3SYH & NUC6i5SYH User Guide
7

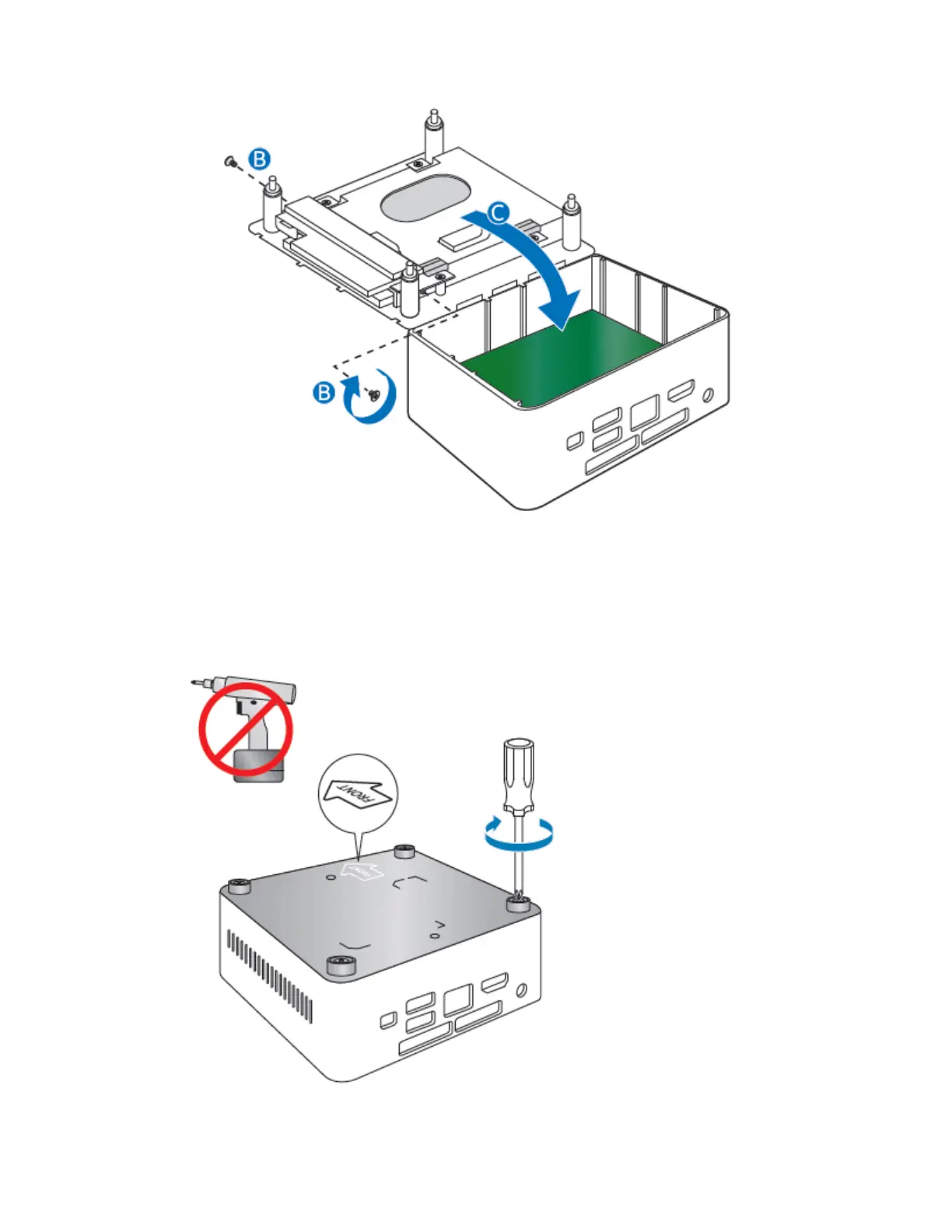

2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).
Set the drive bay bracket down inside the chassis (C),
Close the Chassis
After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by
hand with a screwdriver to avoid over-tightening and possibly damaging the screws.
