User Guide for NUC8i7BEHGA, NUC8i5BEHFA and NUC8i3BEHFA
8

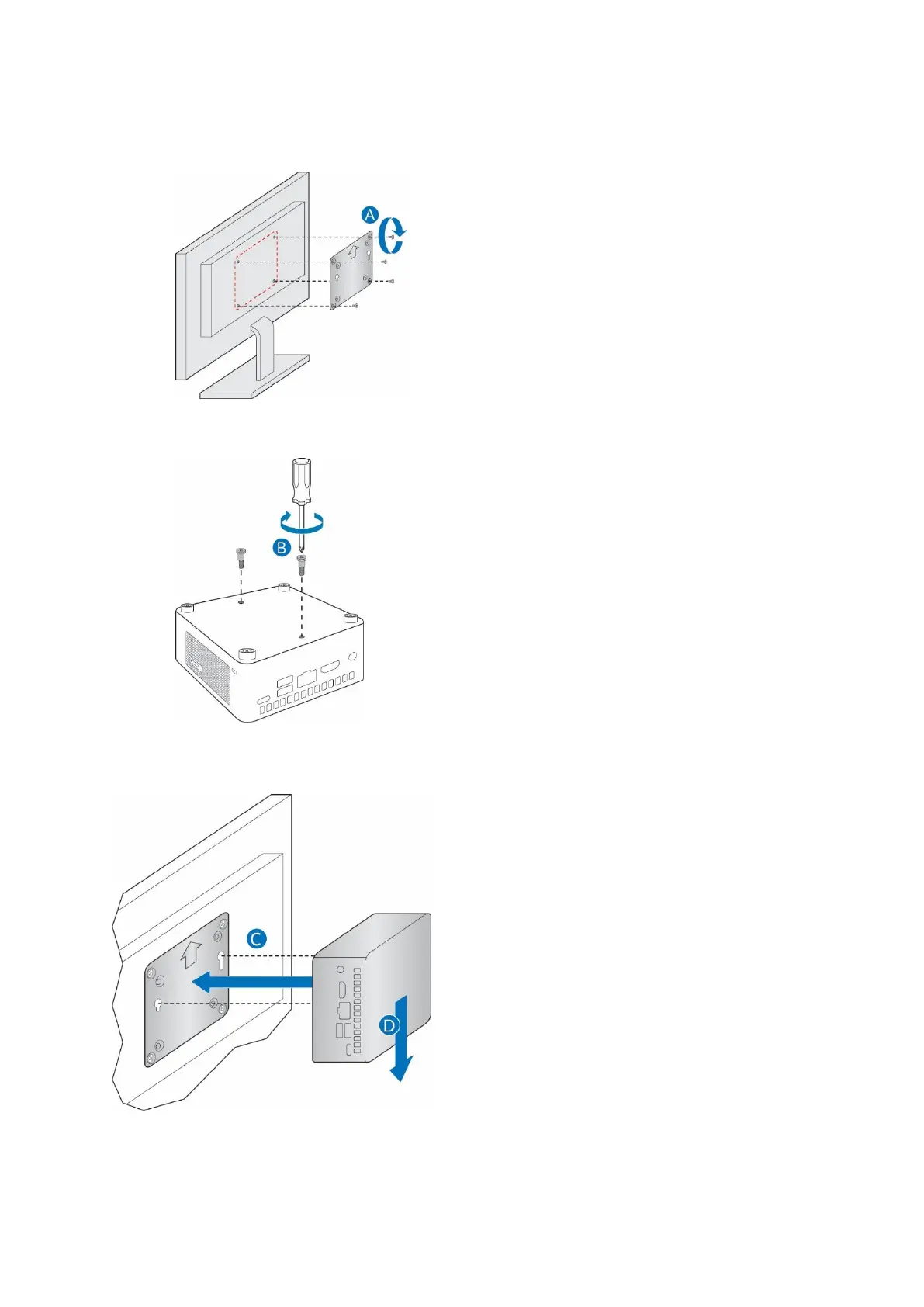

1. Using the four small black screws that were included in the box, attach the VESA bracket to
the back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.
3. Slide the Intel NUC onto the VESA mount bracket.
