Intel PRO/1000 MT User Manual

Indicator Lights
The Intel Server and Desktop network adapters feature indicator lights on the adapter backplate that serve to
indicate activity and the status of the adapter board. The following tables define the meaning for the possible
states of the indicator lights for each adapter board.
Dual Port QSFP+ Adapters
Label Indication Meaning
ACT/LNK
Green Linked at 40 Gb
Yellow Linked at 1/10 Gb
Blinking On/OFF Actively transmitting or receiving data
Off No link.

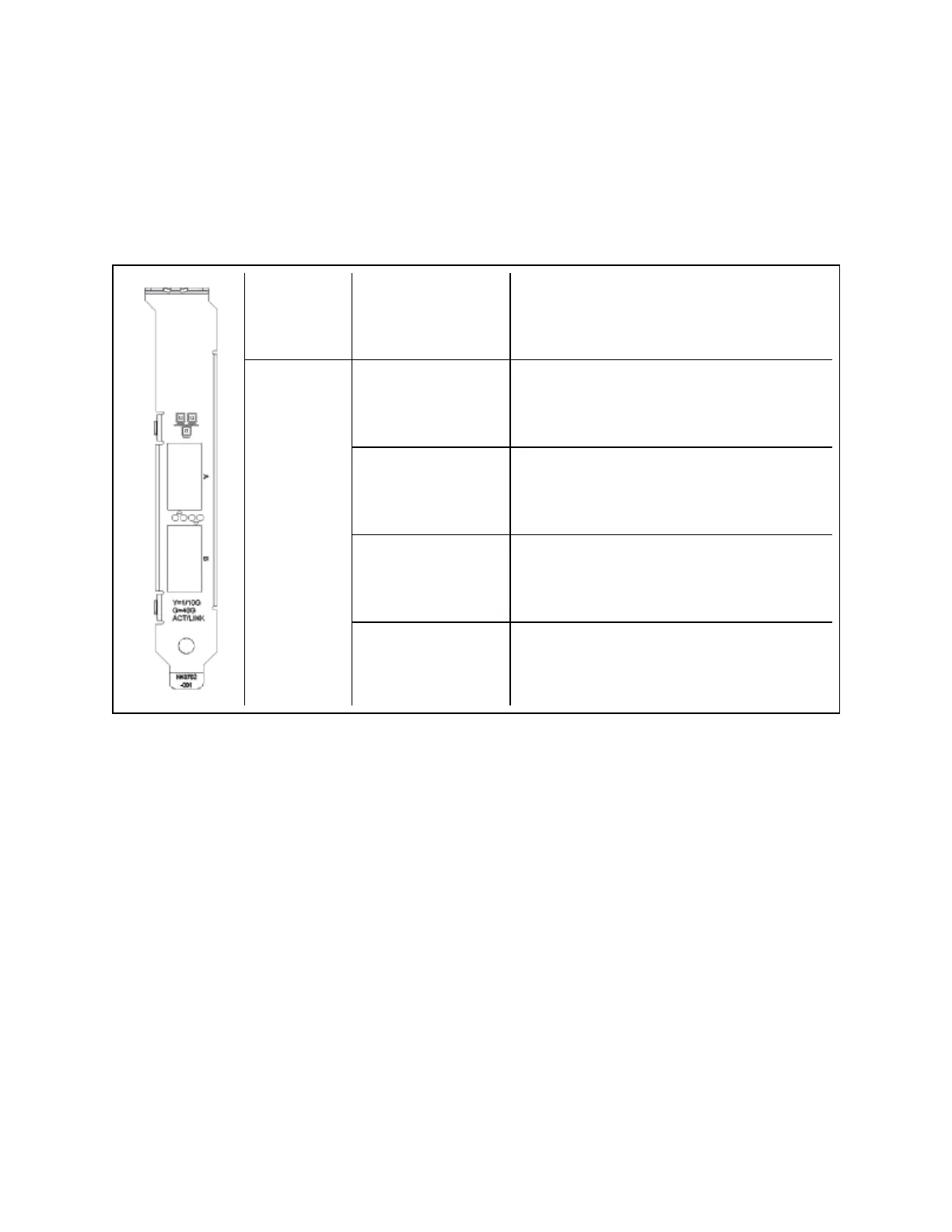

The Intel® Ethernet Converged Network Adapter XL710-Q2 has the following indicator lights:

Intel PRO/1000 MT Specifications

General

Product Name	Intel PRO/1000 MT
Interface	PCI
Data Transfer Rate	1 Gbps
Connector	RJ-45
Compatibility	PC
Device Type	Network adapter
Form Factor	Plug-in card
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Bus Type	PCI
Full Duplex Support	Yes
Jumbo Frames Support	Yes
Ports	1 x RJ-45
Features	Wake on LAN (WoL)
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operating Systems Supported	Windows, Linux
