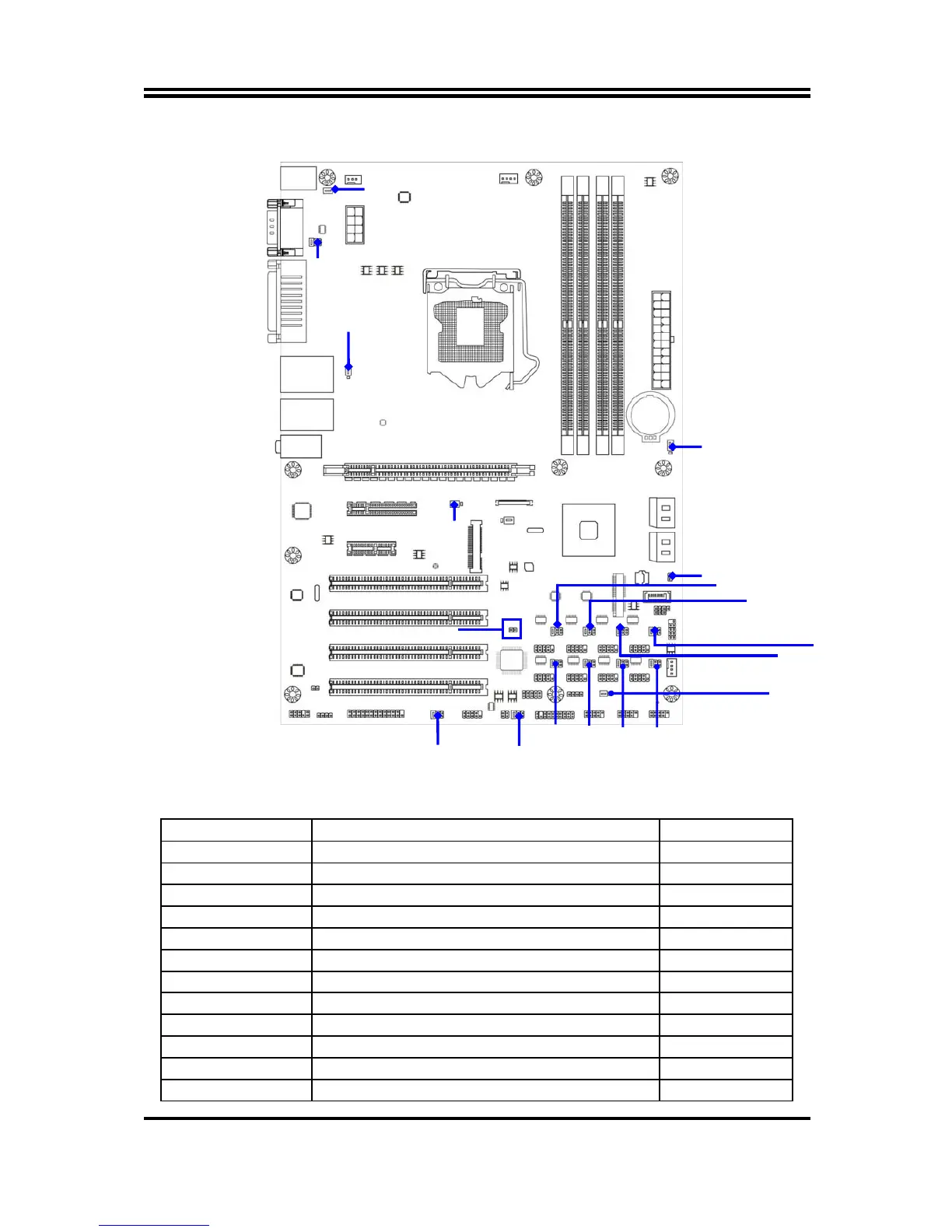

Motherboard Jumper Position
Jumper
Jumper Name Description
JBAT CMOS RAM Clear Function Setting 3-pin Block
JP3 USB Port Power On Function Setting 3-pin Block
JP5 USB Port Power On Function Setting 3-pin Block
JP8 COM2 Header Pin9 Function Selecting 6-pin Block
JP9 COM2 RS232/485/422 Function Selecting 6-pin Block
JP10 KB/MS/USB Power-On Function Setting 3-pin Block
JP11 COM2 Header Pin9 Function Selecting 6-pin Block
JP12 COM2 Header Pin9 Function Selecting 6-pin Block
JP13 COM2 Header Pin9 Function Selecting 6-pin Block
JP14 COM2 Header Pin9 Function Selecting 6-pin Block
JP15 COM2 Header Pin9 Function Selecting 6-pin Block
JP16 COM2 Header Pin9 Function Selecting 6-pin Block
JBAT
J
P10
JP5
J
P20
COPEN
J
P18
J
P13
J
P15
JP
9
J
P11
J
P19
J
P12
J
P2
JP
14
JP
16
JP
17
J
P8
JP
3
