Intel Q67 User Manual

28

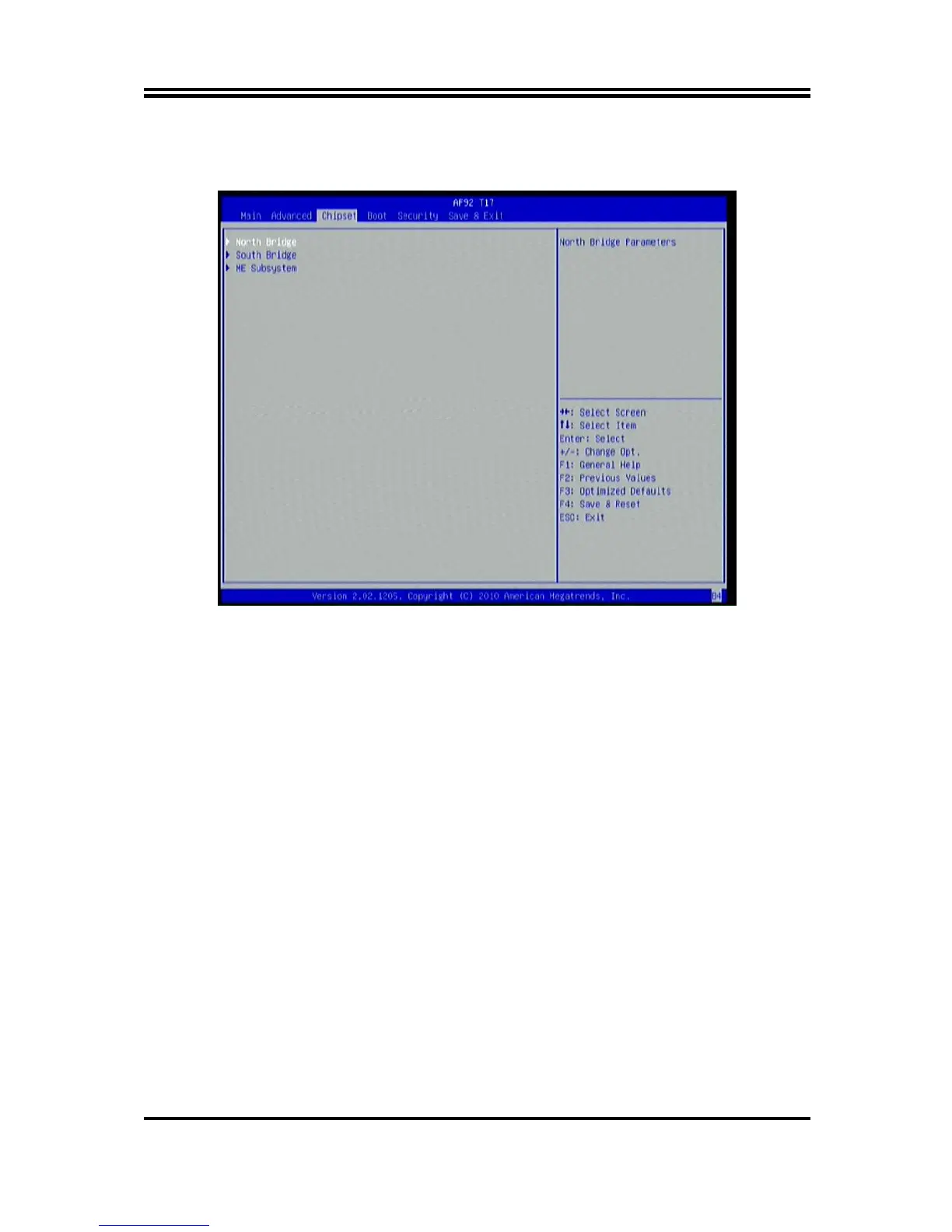

3-8 Chipset Menu
► North Bridge
LOW MMIO Align
The optional settings are: [64M]; [1024M].
VT-d
Use this item to enable or disable VT-d
Initiate Graphics Adapter
Select which graphics controller to use as the primary boot device.
The optional settings are: [IGD]; [PCI/IGD]; [PCI/PEG]; [PEG/IGD]; [PEG/PCI].
IGD Memory
Use this item to select IGO Share Memory Size
The optional settings are: [Disable]/[32m]/[64m]/[128m]/[256m]/[512m].
IGD Multi-Monitor
Use this item to enable or disable IGD Multi-Monitor by Internal Graphics Device.
PCI Express Port
The optional settings are: [Disabled]/[Enabled]/[Auto].
PEG Force Gen1
The optional settings are: Enabled]; [Disabled].
Detect Non- Compliance Device
Use this item to detect Non- Compliance PCI Express Device in PEG.

Intel Q67 Specifications

General

Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Max Memory	32 GB
PCI Express Revision	2.0
Memory Slots	4
Memory Support	DDR3 1066/1333 MHz
USB Ports	14
SATA Ports	6
Integrated Graphics	Yes
RAID Support	RAID 0, 1, 5, 10
CPU Support	2nd Generation Intel Core i7/i5/i3 Processors
