Intel Q77 - Chapter 2 Hardware Installation; Jumper Setting

8
Chapter 2
Hardware Installation
2-1 Jumper Setting

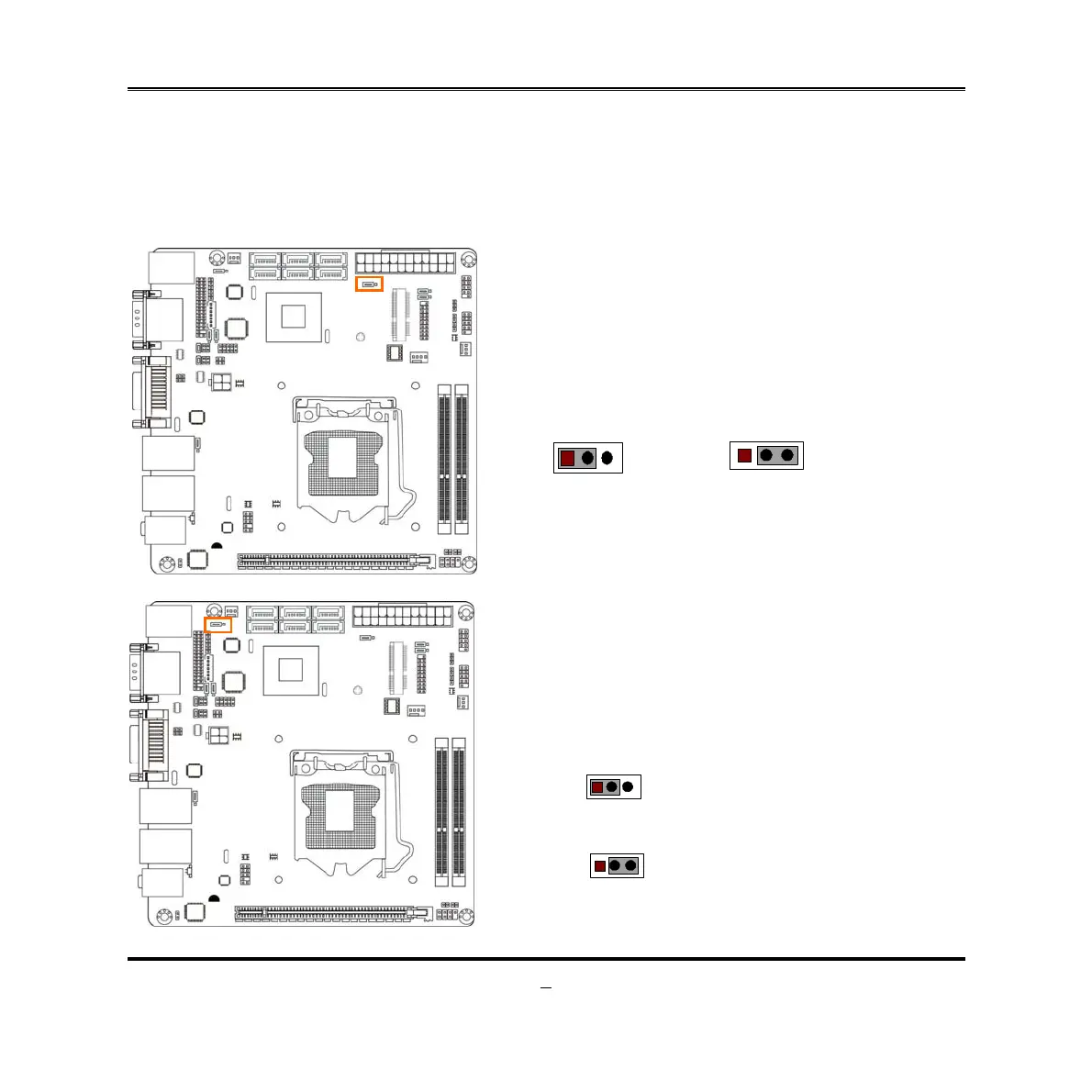

(1) JBAT (3-pin): Clear CMOS
CMOS Clear Setting
2-3 Short： Clear CMOS
JBAT
1-2 Short： Normal；
1
3
1
3
(2) JP1 (3-pin): KB/MS/Rear Panel USB3.0 Port Power On Function Setting
2-3 closed: KB/MS/ Rear Panel USB 3.0 Port Power-on Power-on Enabled
JP1
JP1
1-2 closed : KB/MS/Rear Panel USB 3.0 Port Power-on Disabled (Default)；
1
1
3
3
