Intel Q77 User Manual

41

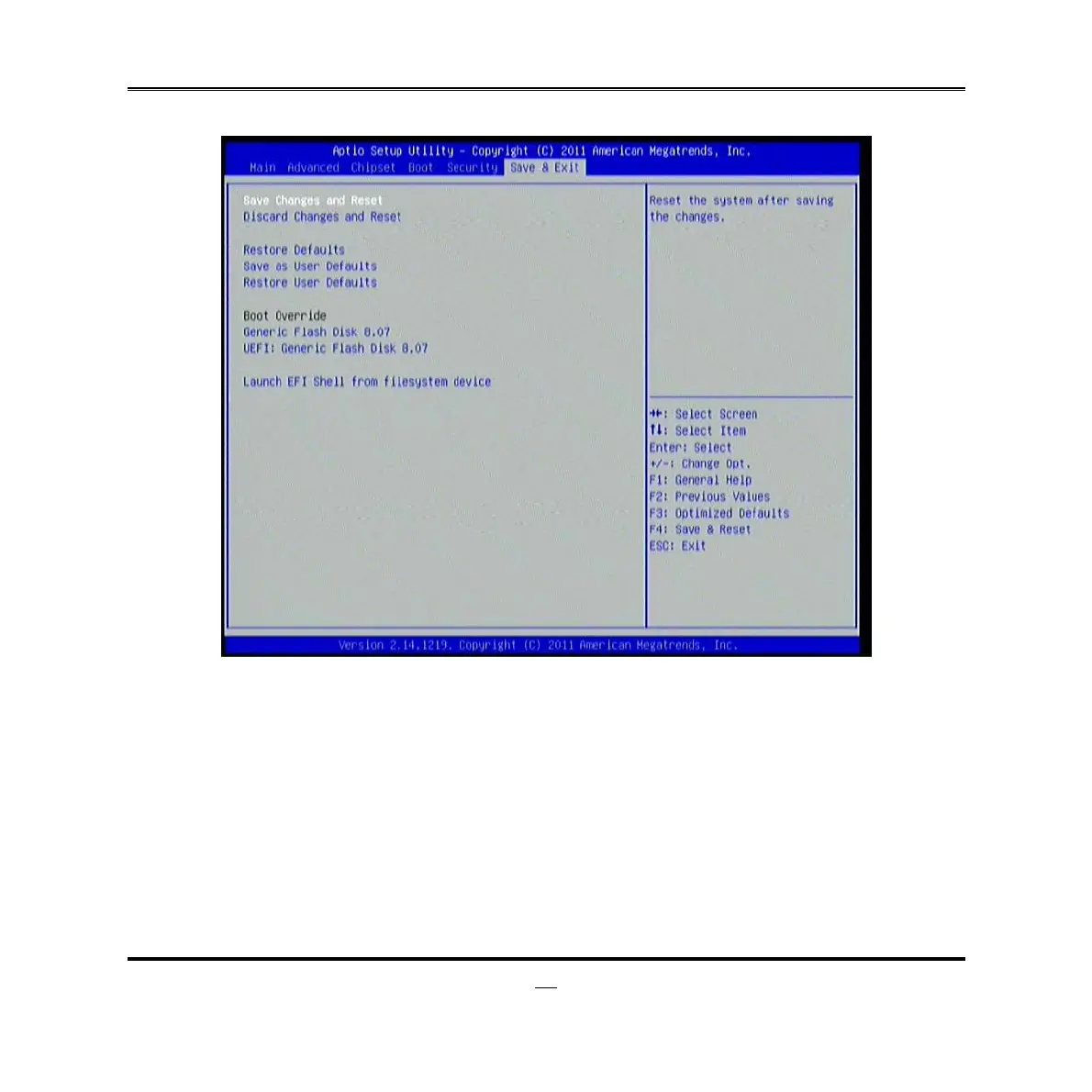

3-11 Save & Exit Menu
Save Changes and Reset
This item allows user to reset the system after saving the changes.
Discard Changes and Reset
This item allows user to reset the system without saving any changes.
Restore Defaults
Use this item to restore /load default values for all the setup options.
Save as User Defaults
Use this item to save the changes done so far as user defaults.
Restore User Defaults
Use this item to restore defaults to all the setup options.
Launch EFI Shell from file system device

Intel Q77 Specifications

General

Chipset	Intel Q77
Socket Type	LGA 1155
Memory Type	DDR3
Memory Slots	4
Maximum Memory Supported	32 GB
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 2.0 Ports	10
USB 3.0 Ports	4
PCI Express Revision	3.0
Integrated Graphics	Intel HD Graphics
PCIe 3.0 Support	Yes
CPU Support	Intel Core i7/i5/i3, Pentium, Celeron (2nd and 3rd generation)
Memory Support	DDR3 1066/1333/1600 MHz
RAID Support	RAID 0, 1, 5, 10
TDP	Not Applicable
