Intel® RAID Controller RS2BWC080 Hardware User’s Guide 13
3 Intel
®
RAID Controller RS2WC080
Characteristics

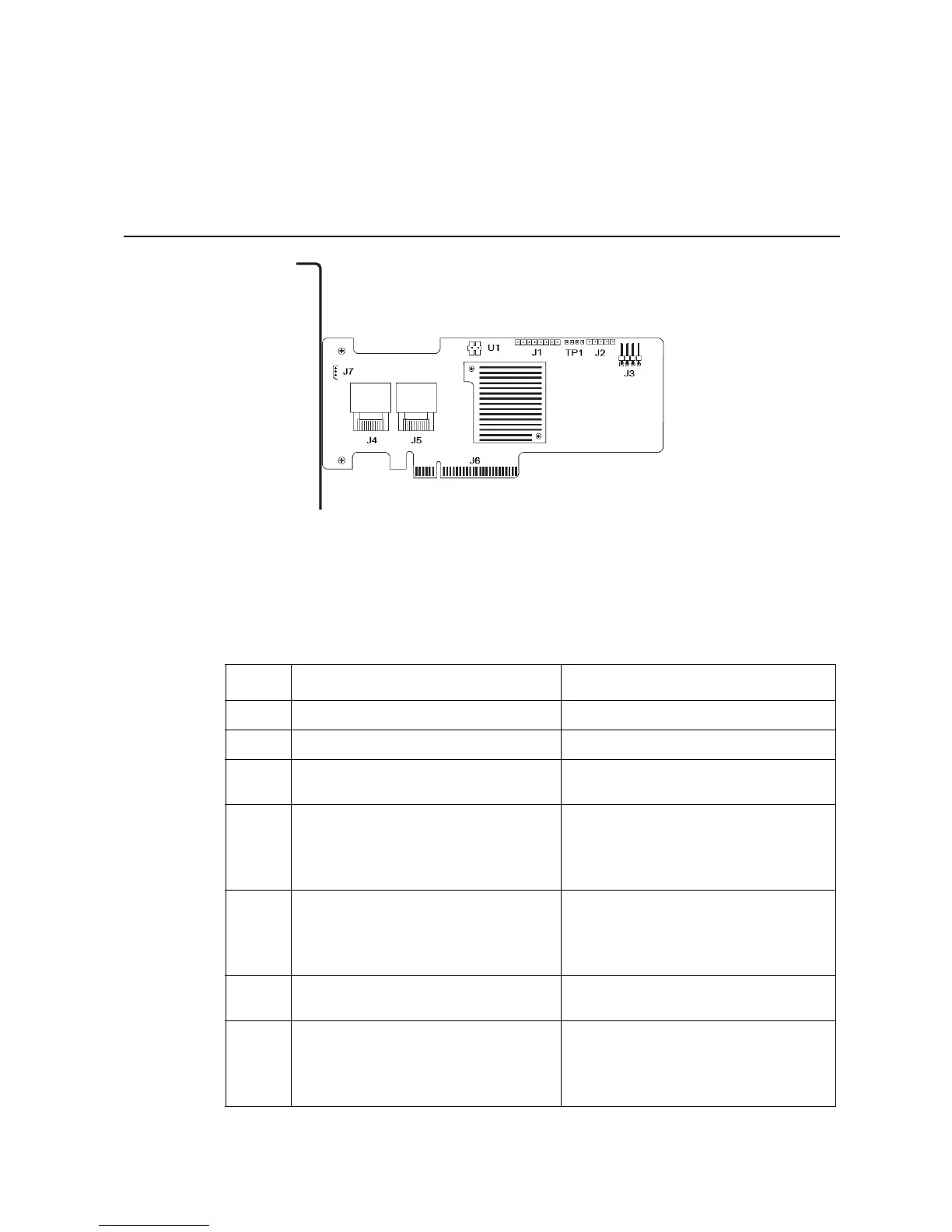

Figure 4. Card Layout
Table 1. Jumper Description
Jumper Type Description
J1 16-pin header (Not populated) Reserved for factory use
J2 10-pin header (Not populated) Reserved for factory use
J3 4-pin connector Connects to external, green or red LEDs
that indicate drive activity or faults.
J4 x4 Mini-SAS (SFF-8087) Ports 0–3 internal connector
Connects the cables from the controller to
SAS drives or SATA II drives, or a SAS
expander.
J5 x4 Mini-SAS (SFF-8087) Ports 4–7 internal connector
Connects the cables from the controller to
SAS drives or SATA II drives, or a SAS
expander.
J6 PCI* Express Gen 2 x8 board edge
connector
x8 interface that provides connections on
both the top and the bottom of the board.
J7 3-pin connector PMI-style I2C connector
Supports SES (SCSI Enclosure Services)
over I2C over Internal I2C backplane
cable.
