Intel X550-T2 User Manual

1. From the FCoEConfiguration menu, select Add an Attempt. All supported ports are displayed.

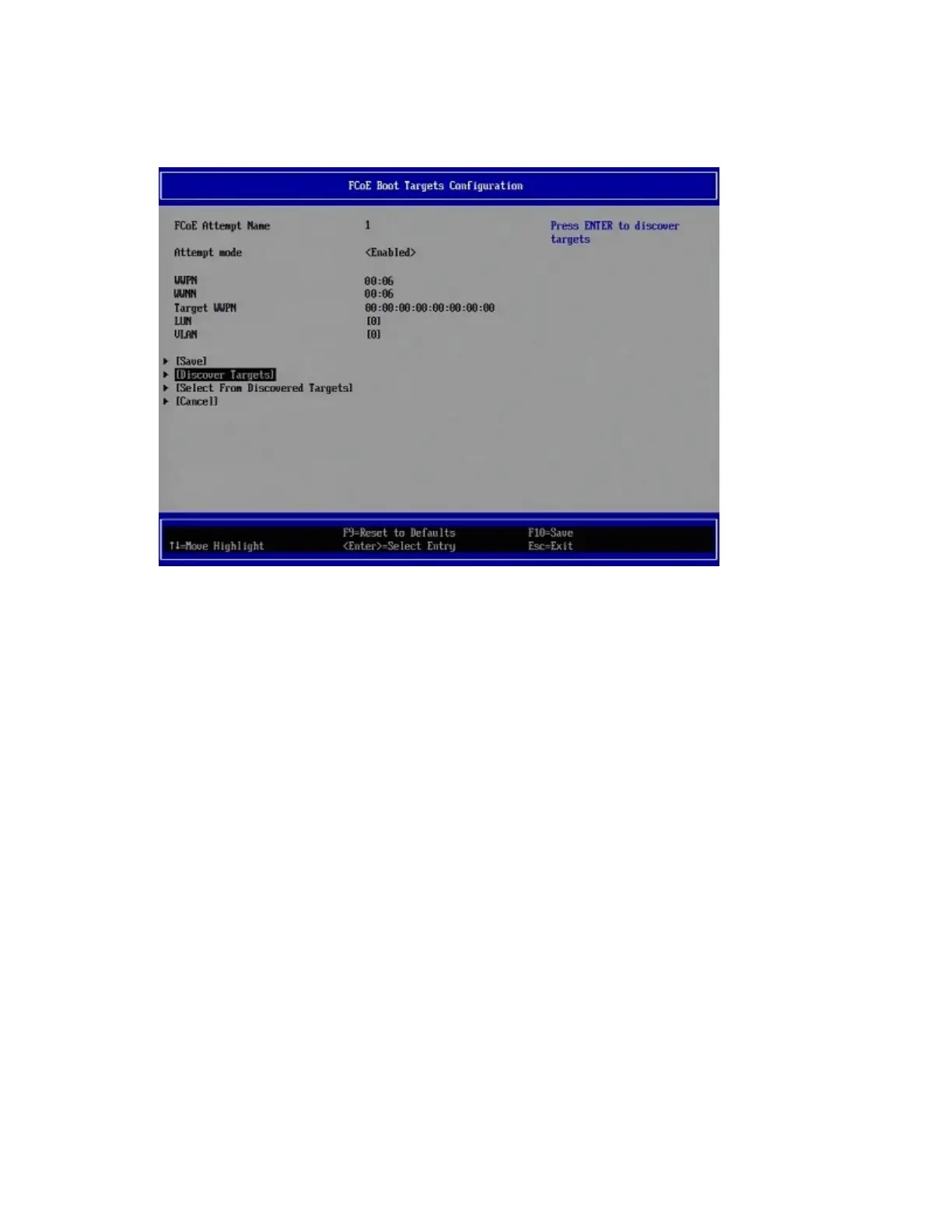

2. Select the desired port. The FCoE Boot Targets Configuration screen is displayed.
3. Select Discover Targets to automatically discover available targets (alternatively, you can manually
enter the fields on the FCoE Boot Targets Configuration screen). The Select from Discovered Tar-
gets option displays a list of previously discovered targets.
4. Select Auto-Discovery. Note that the auto-discovery process may take several minutes. When auto-
discovery is complete, the Select Target screen is displayed. Discover VLAN is the VLANassociated
with a discovered adapter. There can be more than one target on a given VLAN.

Intel X550-T2 Specifications

General

Product Type	Network Adapter
Ports	2 x 10GBase-T
Interface	PCI Express 3.0 x4
Data Transfer Rate	10 Gbps
Connector Type	RJ-45
Form Factor	Plug-in Card
Chipset	Intel X550
Connectivity Technology	Wired
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 70°C
Cabling Type	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
Features	VLAN support, Wake on LAN (WoL), PXE support
Compliant Standards	IEEE 802.3an, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x
Jumbo Frames	9.5KB
