8
From there you will have to make the settings according to the following information.
Note: if you have any questions about which connection mode to use, please contact your operator or internet provider
for more information.
» DHCP: if your connection to the Internet is made through an automatic IP address delivery connection, select the
DHCP
mode in the checkbox. This mode requires no additional conguration. Just click the button to proceed to the next
settings.

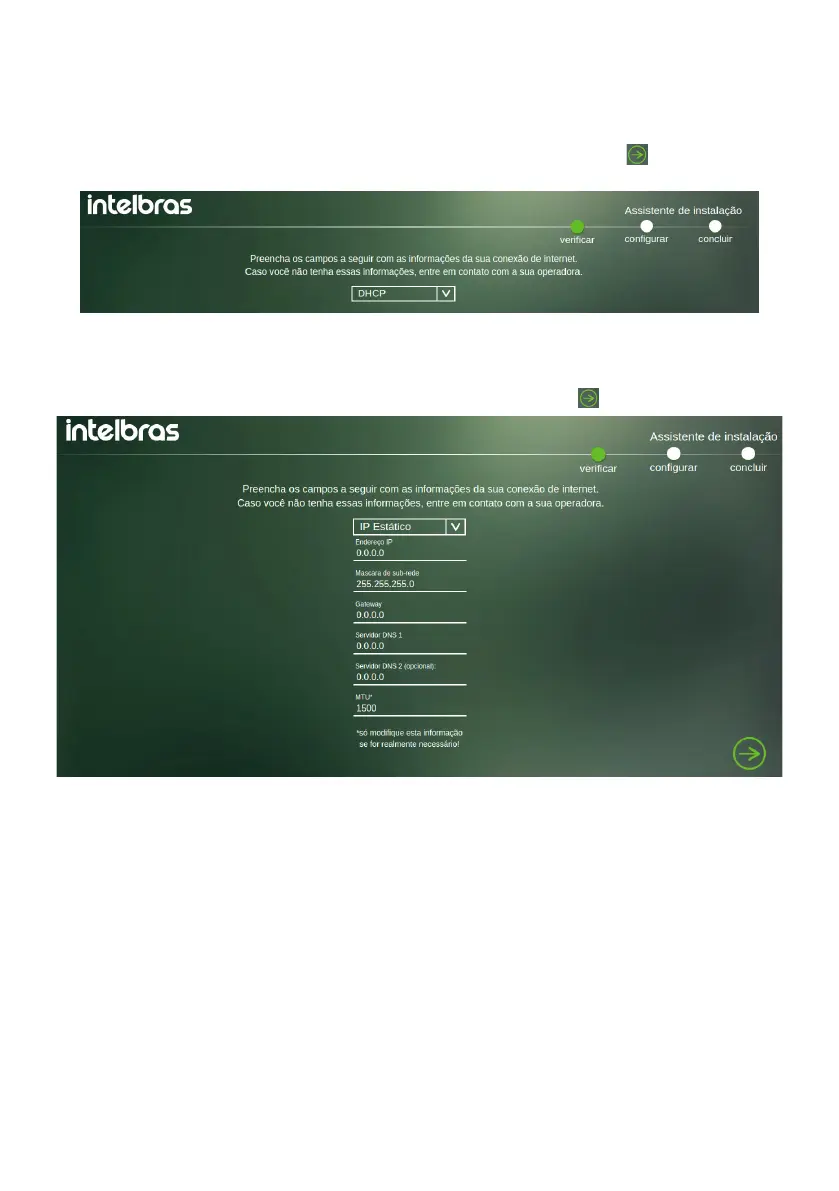

Internet conguration in DHCP mode
» Static IP: if your operator provides your Internet through this connection mode, select the
Static IP
mode in the checkbox
and ll in the requested information on the screen. You can obtain this information by contacting support from the
operator or internet service provider. After lling in the elds, simply click the button to proceed to the next settings.
Internet conguration in Static IP mode

Other manuals for Intelbras IWR 3000N

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intelbras IWR 3000N and is the answer not in the manual?

Intelbras IWR 3000N Specifications

General IconGeneral
Frequency Band2.4 GHz
Data Transfer Rate300 Mbps
LAN Ports4
WAN Ports1
WAN Port TypeRJ45
LAN Port TypeRJ45
Weight200 g
Wireless StandardIEEE 802.11b/g/n
SecurityWEP, WPA, WPA2
Operating ModesRouter, Repeater, WISP
Antenna2 external antennas
