Intelect® Mobile Stim and Combo Therapy Systems
F. Diadynamic Waveforms- Figures 4.8 - 4.12
The Diadynamic waveforms are rectified alternating currents. The
alternating current is modified (rectified) to allow the current to flow
in one direction only.
Output Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electrodes
Output Intensity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-80 mA
Treatment Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-60 Minutes
MF: (Monophasé Fixe)- Figure 4.8
Frequency of 50 Hz: phase duration of 10 ms followed by a pause of
10 ms.
DF: (Diphasé Fixe)- Figure 4.9
Frequency of 100 Hz: phase duration of 10 ms followed immediately
by another identical phase of 10 ms.
CP: Modulé en Courtes Périodes- Figure 4.10
1 second of MF followed abruptly by 1 second of DF.
LP: (Modulé en Longues Périodes)- Figure 4.11
Rhythmical fluctuation between 2 MF currents.
CP-iso: (Courtes Periodes Isodynamic)- Figure 4.12
A combination of MF and DF waveforms.

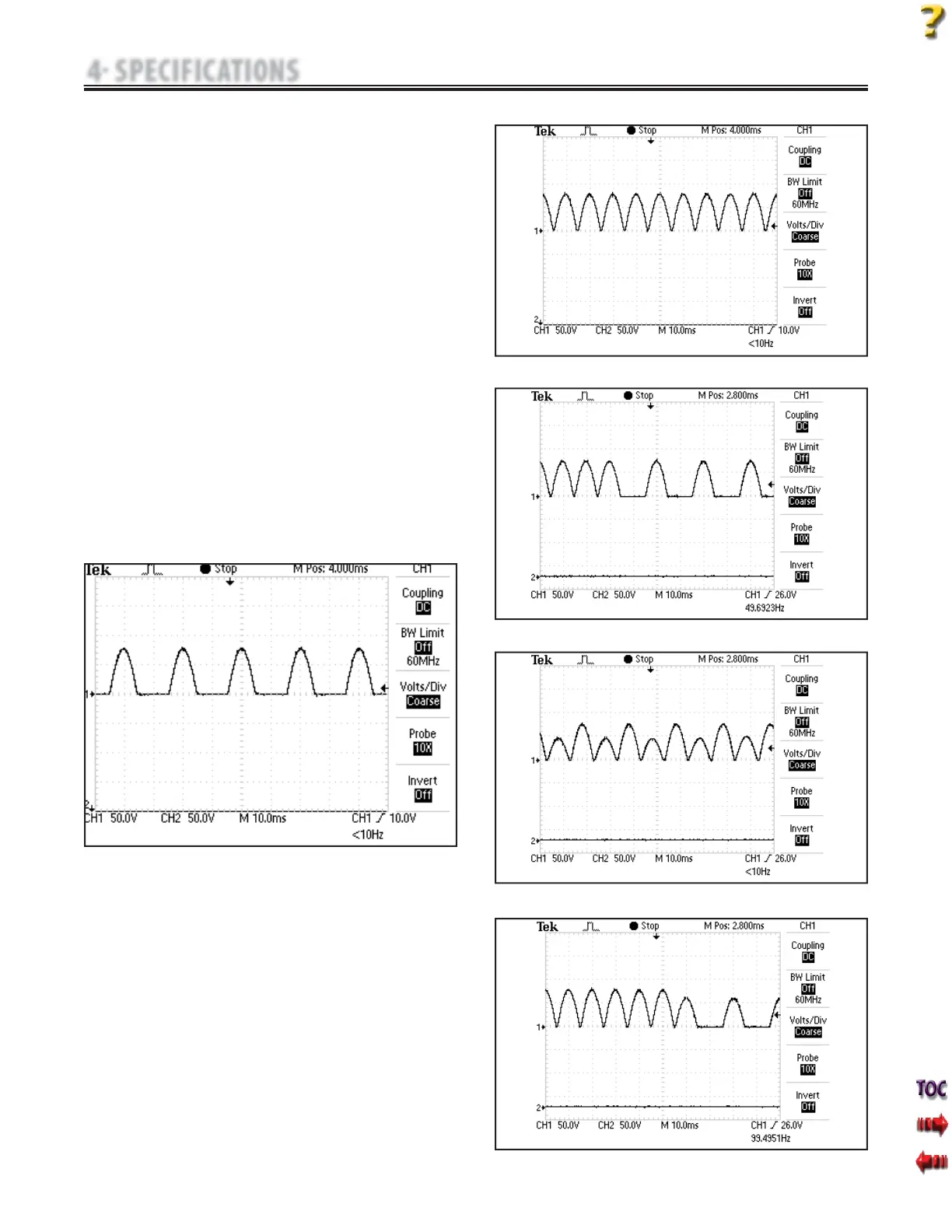

FIGURE 4.9
*CC= Constant Current
CV= Constant Voltage
FIGURE 4.8
FIGURE 4.10
FIGURE 4.11
FIGURE 4.12
