Intellitec 500A - Page 15

1485 Jacobs Rd.
Deland, FL 32724
386.738.7307
P/N 53-00912-000 Rev. D 080919
www.intellitec.com
Intellitec
INSTALLATION & SERVICE MANUAL
30A SMART ENERGY MANAGEMENT SYSTEM
TM
MODEL 500A
BRKR #2 RELAY #2 BRKR #1 RELAY #1 NEUTRAL
12 VOLT SIDE
J3 To Current Sensor
120/240 VOLT SIDE
BRKR #3 RELAY #3
EMS Controlled Loads 1HP, 15A, 120VAC,60HZ
ENERGY MANAGEMENT
CONTROL ELECTRONICS
BARRIER
RELAY #5 N.O.
RELAY #5 COM
RELAY #5 N.C.
RELAY #6 COM
RELAY #6 N.C
RELAY #6 N.O.
Remote Display Connector
AIR-CONDITIONERS
THERMOSTAT LEADS
LOAD 1.0A, 24VDC
J5
+12 VOLTS GROUND
J1 Hi-Pot Test
1 2 3
1 2 3 4 5 6

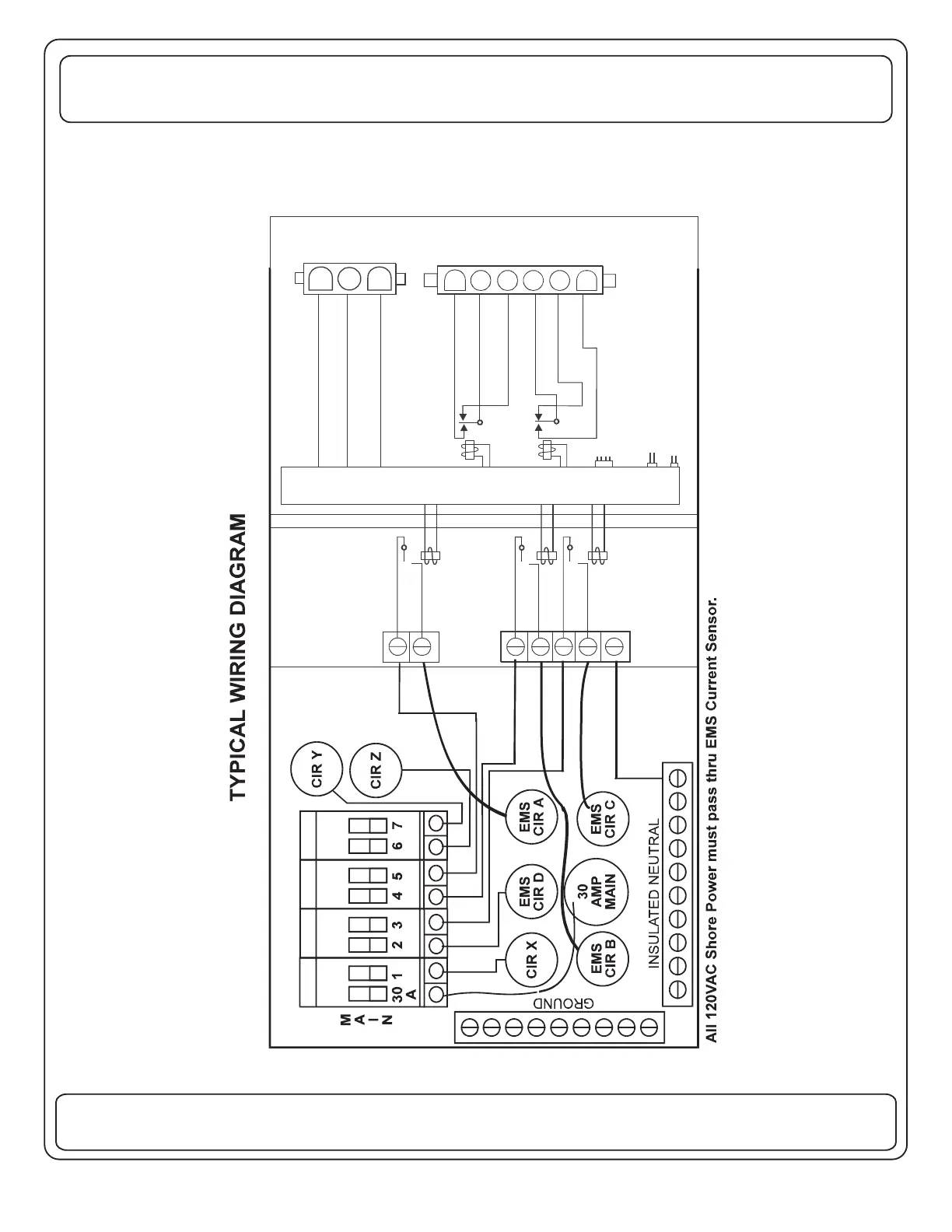

TYPICAL WIRING DIAGRAM
J2
J4
J6
J7
+12 VOLT GEN SET RUN
