Intellitec Battery Disconnect BD2 Installation Manual

BD0 FOR COACH - NO VOLTMETER
BD1 FOR COACH - WITH VOLTMETER
QTY 1 BDO BEZEL ASSY (BRN/GLD) 01-00066-000
(BLK/SLV) 01-00066-004
QTY 1 BD RELAY, 100 AMP, 12V 01-00055-000
QTY 1 CABLE, BDO/1 20 FEET 11-00063-000
QTY 1 BD1 BEZEL ASSY (BRN/GLD) 01-00066-001
(BLK/SLV) 01-00066-005
QTY 1 BD RELAY, 100 AMP, 12V 01-00055-000
QTY 1 CABLE, BDO/1 20 FEET 11-00063-000
Battery Disconnect
SPECIFICATIONS
Relay Actuation Voltage 10.5 Volts minimum
Continuous carry current 100 Amps maximum
Short term carry current 500 Amps - 30 seconds maximum

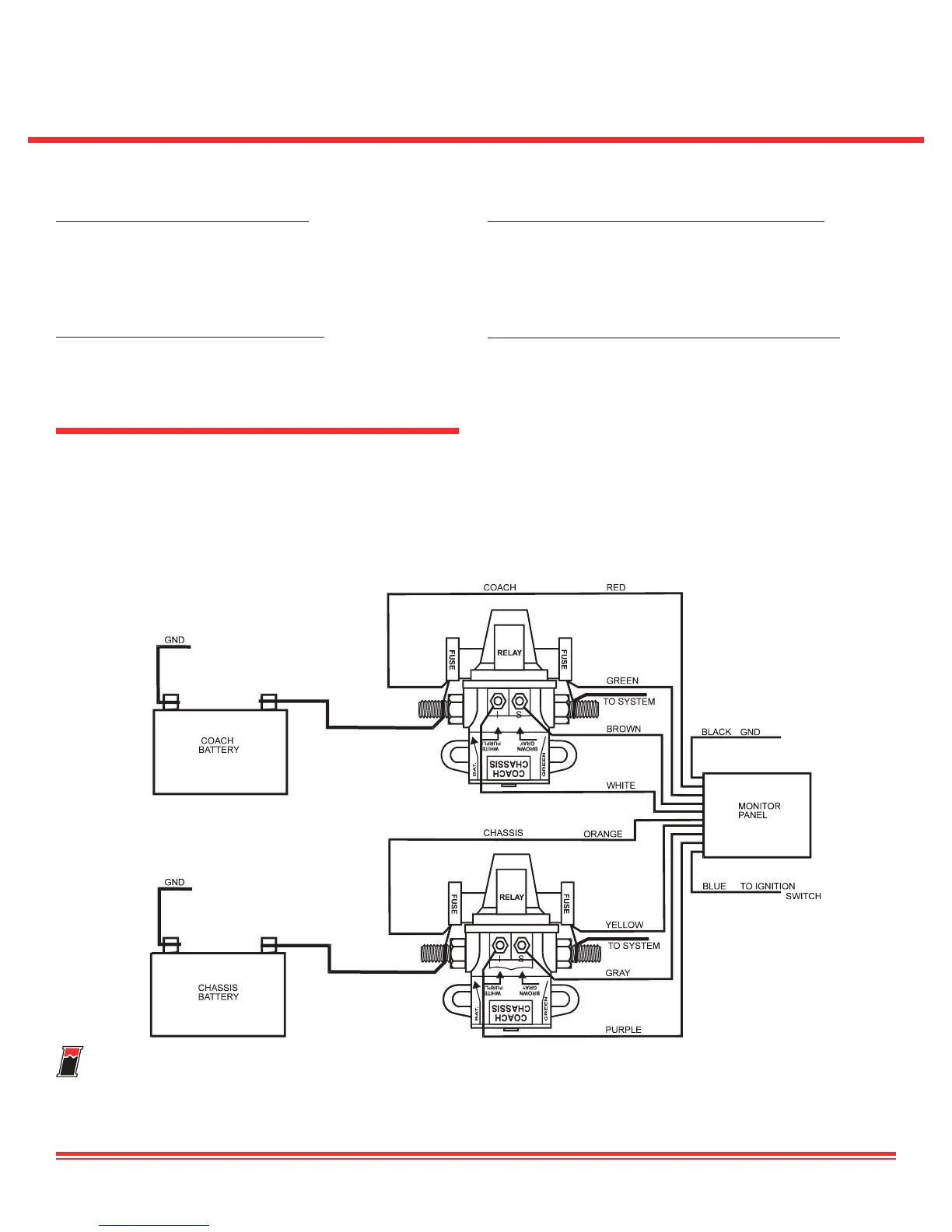

Typical Battery Disconnect Installation
BATTERY DISCONNECT SYSTEM
BD2 FOR COACH & CHASSIS - NO VOLTMETER
BD3 FOR COACH & CHASSIS - WITH VOLTMETER
QTY 1 BD2 BEZEL ASSY (BRN/GLD) 01-00066-002
(BLK/SLV) 01-00066-006
QTY 1 BD RELAY, 100 AMP, 12V 01-00055-000
QTY 1 CABLE, BD2/3 25 FEET 11-00139-000
QTY 1 BD3 BEZEL ASSY (BRN/GLD) 01-00066-003
(BLK/SLV) 01-00066-007
QTY 1 BD RELAY, 100 AMP, 12V 01-00055-000
QTY 1 CABLE, BD2/3 25 FEET 11-00139-000
