131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
P/N 53-00066-100 Rev. B 030905
www.intellitec.com
Intellitec
SERVICE MANUAL
BATTERY DISCONNECT

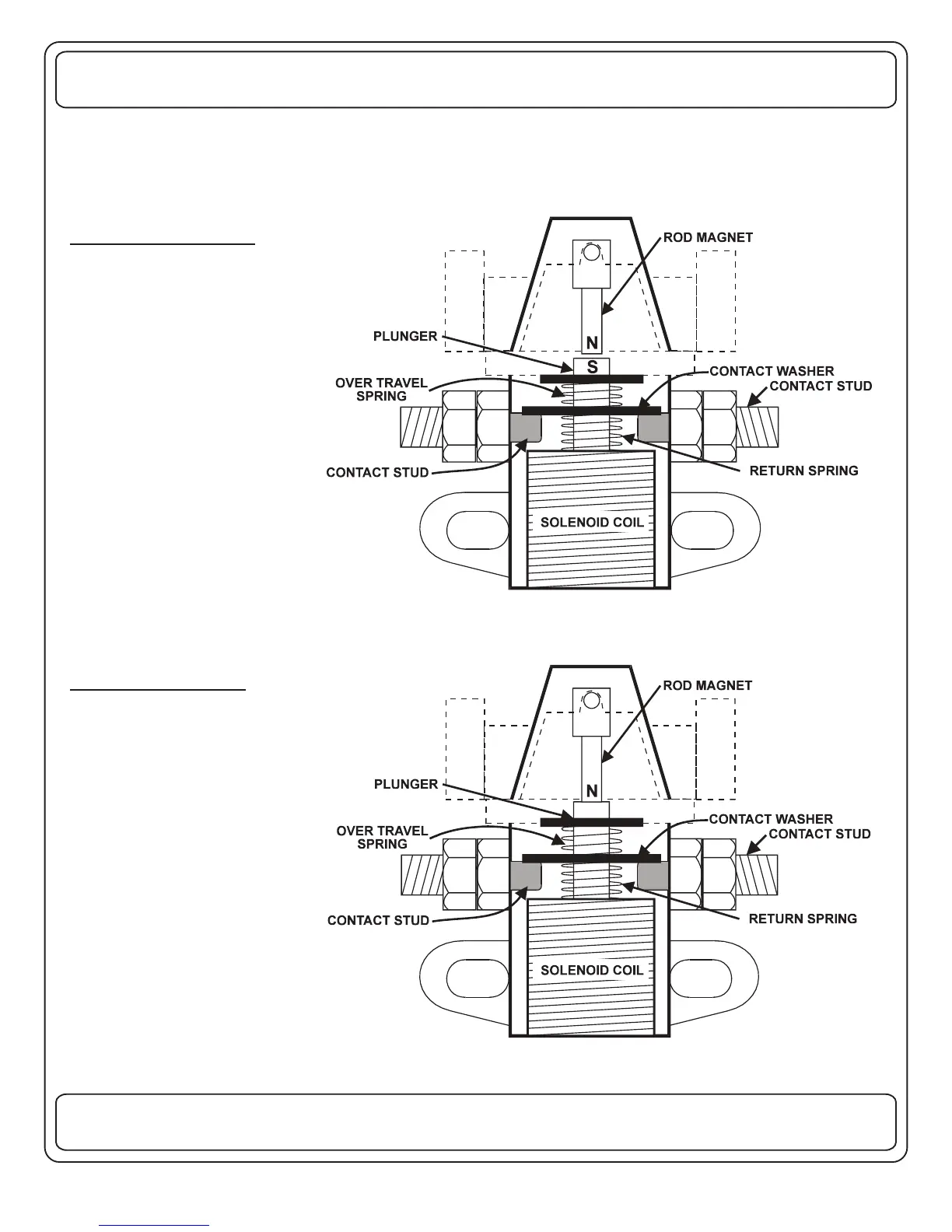

FIGURE 1
Relay Closing
Positive polarity applied to coil.
Current flowing in coil.
Plunger pulled in to coil.
Rod magnet attracted to
plunger by opposite polarity.
FIGURE 2
Relay Closed
Power removed from coil.
Magnet blocks plunger from
coming up, maintaining contact.
2
