Intellitec
SERVICE MANUAL
BATTERY DISCONNECT

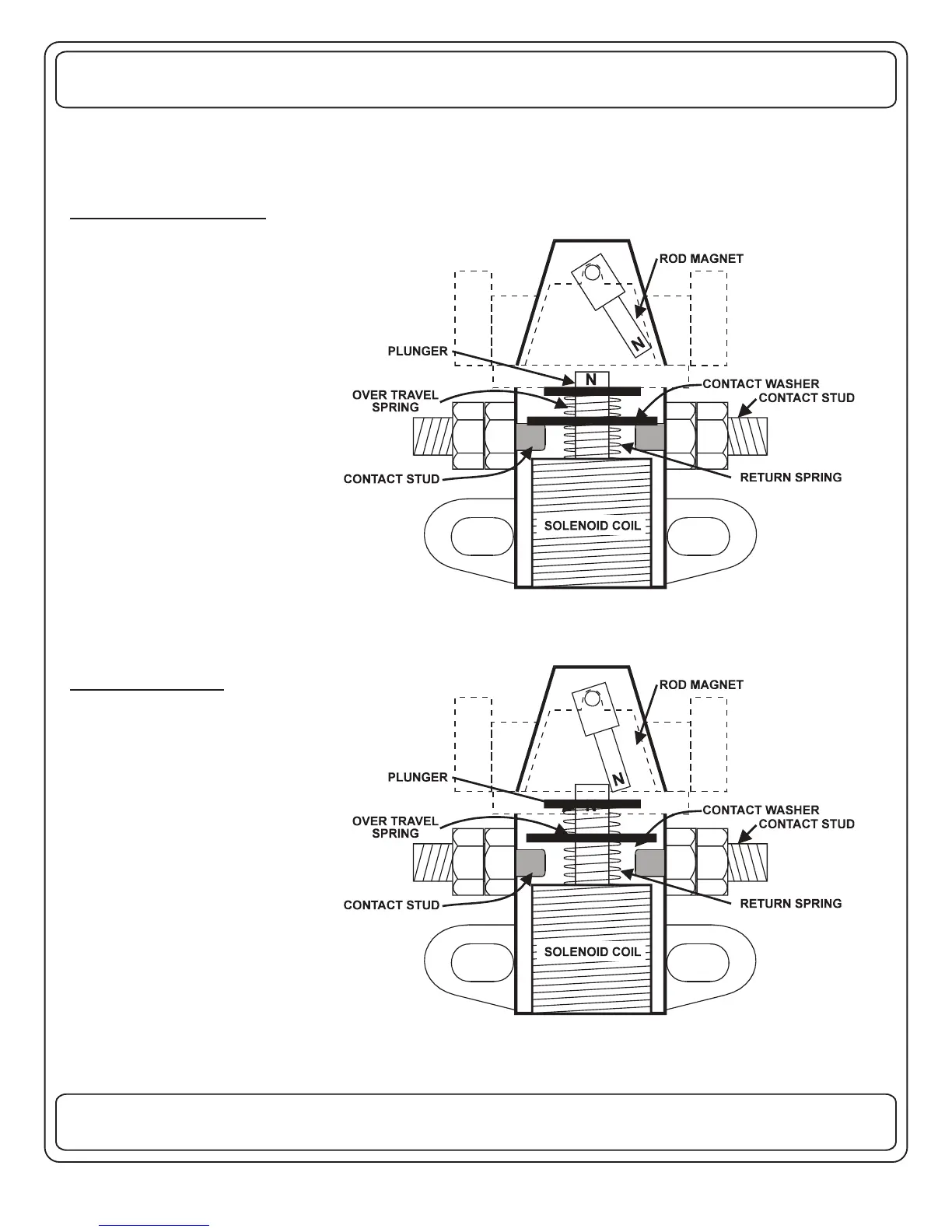

FIGURE 3
FIGURE 4
Relay Opening
Negative polarity applied to coil.
Current flowing in coil.
Plunger pulled in.
Rod magnet opposed by plunger
same polarity magnetic field,
swings out to side of housing.
Relay Open
Power removed.
No current flowing in coil.
Plunger pushed up by return spring
while magnet is off to the side.
Contacts open. Magnet comes
to rest at side of plunger.
4
