5

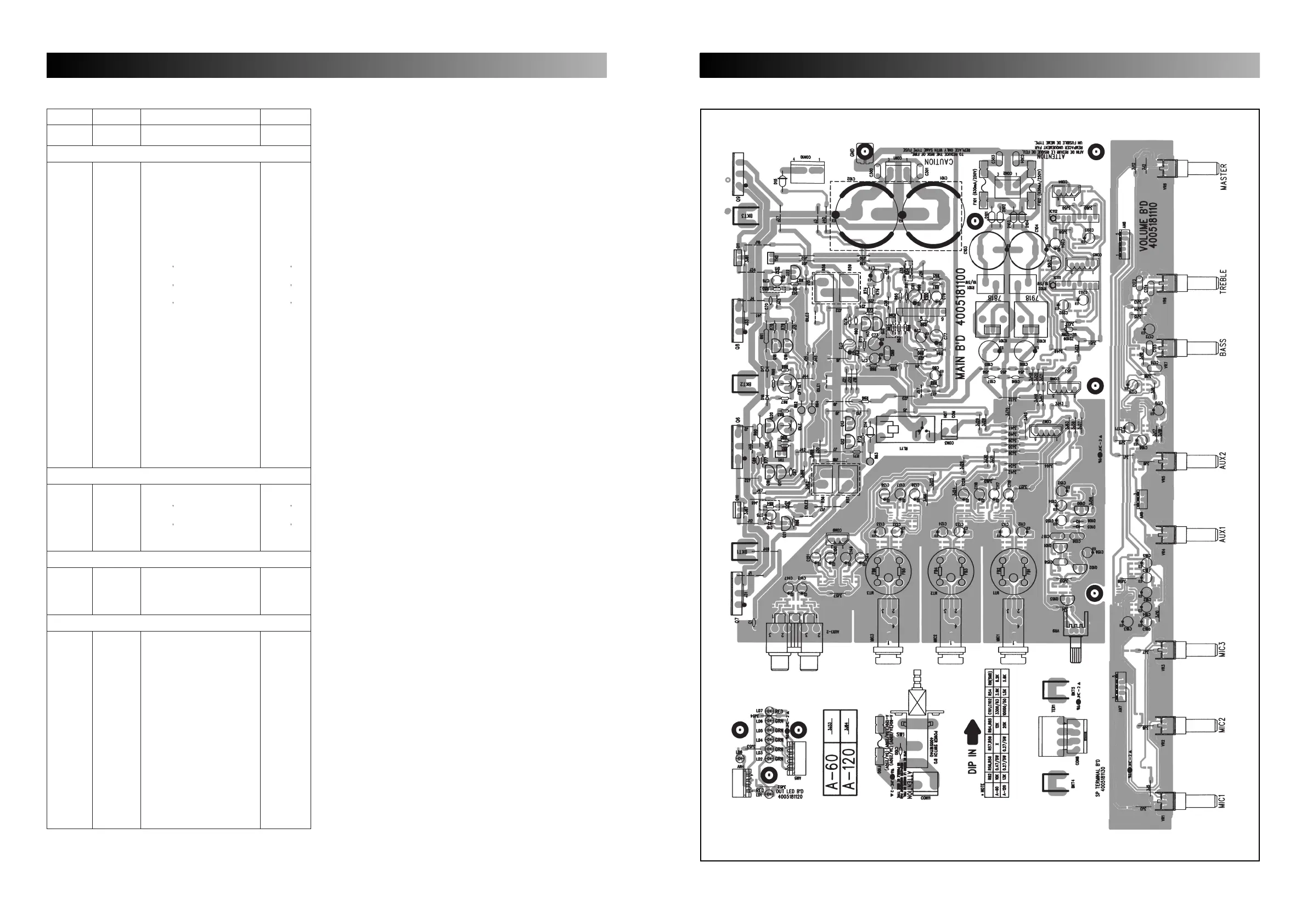

TOP AND BOTTOM VIEW OF P.C. BOARD
4
Ref No. Part No. ValueDescription
C153 S35104704321 CAP CL 47PF 50V J 1608 47P
C115 C116 S35106804321 CAP CL 68PF 50V J 1608 68P
VR6-7 3228069180 RK09S11F010353B 50KB
VR1-5 VR8 3228069190 RK09S11B000313A 10KA
C164 C167 3409210071-T CAP AF RSG 10UF 50V 5 P 10/50
C165 C168 3409210071-T CAP AF RSG 10UF 50V 5 P 10/50
C160 3409222071-T CAP AF RSG 22UF 50V 5 P 22/50
C172 C178 3409233071-T CAP AF RSG 33UF 50V 6 P 33/50
C162-163 3409247071-T CAP AF RSG 47UF 50V 6 P 47/50
C170-171
C173 3609102120-T CAP MA 0.001UF 100V 0.001/100(M)
C175-176 3609103120-T CAP MA 0.01UF 100V 0.01/100(M)
C174 3609152120-T CAP MA 0.0015UF 100V J 0.0015/100(M)
CON9 4355740621 CON ASS Y 3P 510MM A-60/120 CON ASS Y 3P
(510MM)
CON7 4355743319 CON ASS Y 5P (450MM) A-60/120 CON ASS Y 5P
(450MM)
CON8 4355764012 CON ASS Y 5P (250MM) A-60/120 CON ASS Y 5P
(250MM)
IC106-107 S21101080002 IC 2068 SOIC8 NJM 2068DD
R151-152 S30101017121 RES TF 100 1/16W 1608 100
R158-159
R156 S30101027121 RES TF 1K 1/16W 1608 1K
R157 S30101037121 RES TF 10K 1/16W 1608 10K
R165 S30101227121 RES TF 1.2K 1/16W 1608 1.2K
R200-205 S30101237121 RES TF 12K 1/16W 1608 12K
R208-209 S30101337121 RES TF 13K 1/16W 1608 13K
R210 S30101837121 RES TF 18K 1/16W 1608 18K
R148 R153 S30102727121 RES TF 2.7K 1/16W 1608 2.7K
R206-207 S30103927121 RES TF 3.9K 1/16W 1608 3.9K
R150 R155 S30104717121 RES TF 470 1/16W 1608 470
R149 R154 S30104737121 RES TF 47K 1/16W 1608 47K
C161 C166 S35100504321 CAP CL 5PF 50V J 1608 5P
C177 S35101004321 CAP CL 10PF 50V J 1608 10P
C169 S35101514321 CAP CL 150PF 50V J 1608 150P
LD1 LD7-8 2308684231 LED REC KLR208 2*5 RED KEC RED
LD2-6 2308684271 LED REC KLG208 2*5 GRE KEC GREEN
CON5 4355740421 CON ASS Y 4P 510MM A-60/120 CON ASS Y 4P
(510MM)
CON4 4355740521 CON ASS Y 5P 510MM A-60/120 CON ASS Y 5P
(510MM)
R1-8 S30106817121 RES TF 680 1/16W 1608 680
TER1 4408193904 TERMINAL BLOCK(M) 4P TERMINAL
BLOCK(M)4P
TER2 4408194004 TERMINAL BLOCK(F) 4P TERMINAL
BLOCK(F)4P
WAF6 4428596604 LOCK WAFER LW-1143-04P LW-1143-04P
C100 3549472407 CAP DE2E3KH472MA4B 0.0047/400V
WAF11 4428596603 LOCK WAFER LW-1143-03P LW-1143-03P
SW1 4648199920 SW POWER SDD1PASL011 A-60/120 POWER S/W
OPT1(A60) 2818086100 TRANS OUTPUT A-60 O.P.T
OPT1(A120) 2818086200 TRANS OUTPUT A-120 O.P.T
OPT1(A60UL) 2818085900 TRANS OUTPUT A-60(UL) O.P.T
OPT1(A120UL)
2818086000 TRANS OUTPUT A-120(UL) O.P.T
PT1(A60) 2828060000 TRANS POWER 120V A-60 120V
2828060010 TRANS POWER 220V A-60 220V
2828060020 TRANS POWER 230V A-60 230V
2828060030 TRANS POWER 240V A-60 240V
PT1(A120) 2828059900 TRANS POWER 120V A-120 120V
2828059910 TRANS POWER 220V A-120 220V
2828059920 TRANS POWER 230V A-120 230V
2828059930 TRANS POWER 240V A-120 240V
F100(A60) 5508112937 FUSE 51S 20MM 3A/250V K/U/C/J 120V
5508212730 FUSE NB 20MM 2A/250V KS 220V
5508412736 FUSE TS 20MM 2A/250V U/C/S/V 230V/240V
F100(A120) 5508103337 FUSE 53S 20MM 5A/250V K/U/C/J 120V
5508112837 FUSE51S 20MM 2.5A/250V K/U/C/J 220V
5508412836 FUSE TS 20MM 2.5A/250V U/C/S/V 230V/240V
OUTPUT LED B’D (4005181120)
SP TERMINAL B’D (4005181130)
POWER SW B’D (4005181140)
VOLUME B’D (4005181110)
