Inter-m M-2000 Service Manual

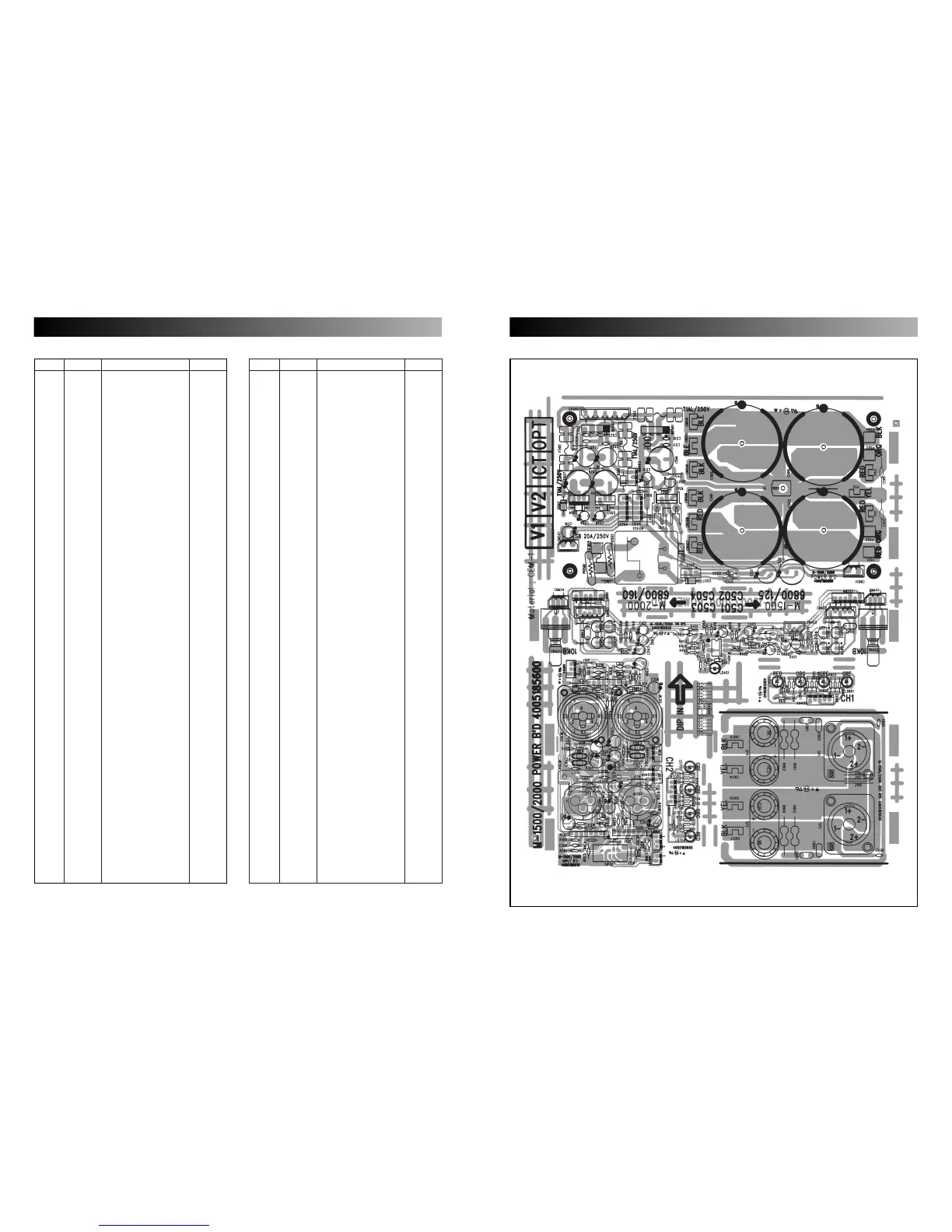

TOP AND BOTTOM VIEW OF P.C. BOARD
54
C101 3409247041-T CAP AF RSG 47UF 25V 5P 47/25
C103, C105 3409210141-T CAP AF RSG 100UF 25V 6P 100/25
C106-109 3409247971-T CAP AF RSG 4.7UF 50V 5P 4.7/50
C111-112, 3609472120-T CAP MA 0.0047UF 100V J 0.0047/100 (M)
C117, C120
C114 3609473120-T CAP MA 0.047UF 100V 0.047/100 (M)
C118-119 3609273120-T CAP MA 0.027UF 100V J 0.027/100 (M)
C122 3409247071-T CAP AF RSG 47UF 50V 6P 47/50
C123 3409810141-T CAP AF NP 100UF 25V 100/25 NP
CN101, 4428599002 WAFER YW025-02 YW025-02P
CN104
CN102 4428595005 LW5267/LWB0640/2.5MM-05P WAFMW5P2.54
CN103 4428595006 LW5267/LWB0640/2.5MM-06P WAFMW6P2.54
CN106-108 4465998210 TERMINAL (250) PCB TAB
CR102, 3509101231-A CAP CE B 100PF 50V K AXIAL 100P
CR115-116
CR104 3529330311-A CAP CE SL 33PF 50V J AXIAL 33P
CR110 3529680311-A CAP CE SL 68PF 50V J AXIAL 68P
CR113 3529050311-A CAP CE SL 5P 50V M AXIAL 5P
CR124-125 3509331231-A CAP CE B 330PF 50V K AXIAL 330P
CR123 3529220311-A CAP CE SL 22PF 50V J AXIAL 22P
D101, 2058100996 DIODE RECTIFIER LT1N4006 (4007) 1N 4006
D105-106,
D124, D134
D103-104, 2058304100 DIODE IN4148 1N 4148
D107-114,
D119-120,
D123
D116, D118 2058512190 DIODE ZENER 10V 1W (IN4740A) UZ 10BM/1W
D121-122 2058322100 DIODE 1SS145 ROHM 1SS142
D126, D125 2058100110 DIODE PS2010 PYUNG CHANG PS207
IC101 2118010232 IC NJM072D JRC NJM 072D
IC102 2118050410 IC TA7317P TOSHIBA TA 7317P
L101 2648099940 COIL INDUCTOR 1.2UM 1.2uH
Q101, Q104 2028407990 TR NPN 2SC 3298A(Y), KTC4370A(Y) KTC 4370
Q102 2028107984 TR PNP 2SA 1306A (Y), KTA1659A(Y) 2SA 1659
Q103, Q137 2008207100-T TR PNP 2SA 970BL-TPE2 2SA 970BL
Q105 2008400960 TR NPN 2SC 1567A-R MATSUSHITA 2SC 1567A
Q106 2008206997-T TR PNP KTA 949Y (KTA 1024) KEC M-1500 KTA 949Y
Q106 2008005999 TR PNP 2SA 1546 NEC M-2000 2SA 1546
Q107 2008606107-T TR NPN KTC 2229Y (KTC 3206Y) M-1500 KTC 2229Y
Q107 2008405999 TR NPN 2SC4001 NEC M-2000 2SC 4001
Q108 2028407990 TR NPN 2SC 3298A(Y), KTC4370A(Y) M-1500 2SC 4370A
Q108 2028407995 TR NPN MJE15032 (MOTOROLA) M-2000 MJE15032
Q109 2028811998 FET N-CH 2SK215 HITACHI 2SK 215
Q110 2028611998 FET P-CH 2SJ 78 HITACHI 2SJ 78
Q111 2028107984 TR PNP 2SA 1306A(Y), KTA 1659A(Y) M-1500 KTA 1659
Q111 2028107995 TR PNP MJE15033 (MOTOROLA) M-2000 MJE15033
Q121-126 2028407122 TR NPN 2SC5200 TOSHIBA (M-1500) 2SC5200
Q121-126 2028407888 TR NPN 2SC 3264 W/ACC (M-2000) 2SC3264
Q127, Q138 2008606108-T TR NPN KTC2240BL (KTC 3200BL) KTC 2240BL
Q131-136 2028107118 TR PNP 2SA1943 TOSHIBA (M-1500) 2SA1943
Q131-136 2028107944 TR PNP 2SA 1295 W/ACC (M-2000) 2SA1295
R101 3009561973 RES CF 560 1/5W J N 560
R102 3009113973 RES CF 11K 1/5W J N 11K
R103 3009331973 RES CF 330 1/5W J N 330
R104 3009121973 RES CF 120 1/5W J N 120
R105, R110, 3079151275 RES ERD-2FCVG 151T 1/4W R FR150
R129-130
R106 3009202973 RES CF 2K 1/5W J N 2K
R107 3002470953 RES CF 47K 1/5W F N M-1500 47K 1%
R107 3009303973 RES CF 30K 1/5W J N M-2000 30K
R108 3009222973 RES CF 2.2K 1/5W J N 2.2K
R109 3002180953 RES CF 18K 1/5W FN M-1500 18K 1%
R109 3009303973 RES CF 30K 1/5W J N M-2000 30K
R111-112 3009564973 RES CF 560K 1/5W J N 560K
R113 3079331275 RES ERD-2FCVG 331T 1/4W R FR 330
R114 3079680275 RES ERD-2FCVG 680T 1/4W R FR 68
R115, 3079470275 RES ERD-2FCVG 470T 1/4W R FR 47
R131-132
R116-117, 3009104973 RES CF 100K 1/5W J N 100K
R177, R179,
R184
R118-119, 3009562973 RES CF 5.6K 1/5W J N 5.6K
R125
Ref No. Part No. ValueDescription
R120, 3089101275 RES NFR 100 1/4W J R PHILKO FR 100
R146-151,
R164-169
R121 3079121275 RES ERD-2FCVG 121T 1/4W R FR 120
R122-123 3009393273 RES CF 39K 1/4W J 39K 1/4W
R124 3079121275 RES ERD-2FCVG 121T 1/4W R FR 120
R126 3009122973 RES CF 1.2K 1/5W J N 1.2K
R127-128 3039223475 RES MO 22K 1W R 22K 1W
R133 3089150275 RES NFR 15 1/4W J R PHILKO FR 15
R134-139, 3089479275 RES NFR 4.7 1/4W J R PHILKO FR 4.7
R152-157
R140-145, 3049478783 RES CE 0.47 5W J T HAN NAE 0.47 5W
R158-163
R170-171 3089332275 RES NFR 3.3K 1/4W J R PHILKO FR 3.3K
R172-173 3009823973 RES CF 82K 1/5W J N M-1500 82K
R172-173 3009124973 RES CF 120K 1/5W J N M-2000 120K
R174 3039479572-F RES MO 4.7 2W J N 4.7 2W
R175-176, 3009223973 RES CF 22K 1/5W J N 22K
R185
R178 3009184973 RES CF 180K 1/5W J N 180K
R180 3009682973 RES CF 6.8K 1/5W J N 6.8K
R181 3009473973 RES CF 47K 1/5W J N 47K
R182-183 3009822973 RES CF 8.2K 1/5W J N 8.2K
R186-187 3009150973 RES CF 15 1/5W J N 15
RY501 5528009810 RELAY VKP-31H42 31H42
TH101 2438007993 POSISTOR PTH 9M04 BE 222TS 2F BE222TS
TH102 2438007995 POSISTOR PTH 9M04 BH 471TS 2F BH471TS
VR101 3248322220 RES SEMI CS 2.2KB 10/5 2.2KB
Ref No. Part No. ValueDescription
