Inter-m P-2000 Operating Manua

44

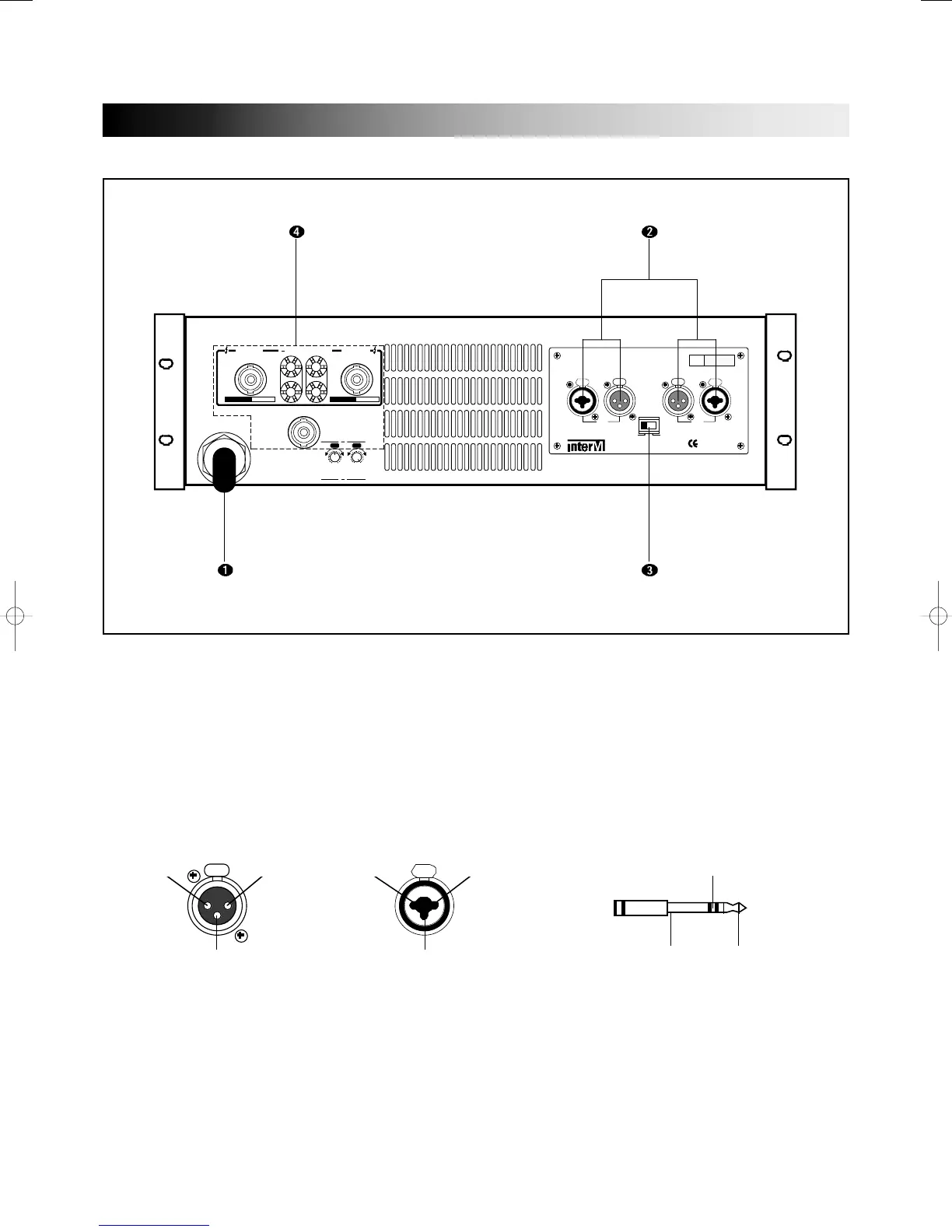

REAR PANEL CONTROLS
S/N
PROFESSIONAL SOUND REINFORCED AMPLIFIER
MODEL NO : P-3200
MADE IN KOREA
CAUTION;
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
AVIS;
RISQUE DE CHOC ELECTRIOUE NE PAS OUVRIR.
PUSH
PUSH
PUSH
PUSH
BRIDGED
PARALLEL
STEREO
~AC INPUT
230V 50Hz, 1100W
CONNECTOR
PIN 1+ POS
PIN 2+NEG
SEE MANUAL, BR. SW.
BRIDGED
4Ω MIN.
STEREO
2Ω MIN. / CH.
CONNECT
(CH 1) PIN 1+, PIN 1-
(CH 2) PIN 2+, PIN 2-
DUAL CHANNEL OUTPUT CONNECTOR
BRIDGED MONO
( + )
CHANNEL 1
CHANNEL 2
( )
PIN 1-GND
PIN 1+ POS
PIN 1-GND
PIN 1+ POS
CH 1
CH 2
BRIDGED MONO USE
CHANNEL 1 INPUT ONLY
CHANNEL 1 CONTROL
ADJUSTS GAIN
CH 2
CH 1
PUSH
2
1
3
HOT
GROUND
COLD
PUSH
2
1
3
HOT
GROUND
COLD
COLD
GROUND
HOT
FOR LINK
XLR MALE COMBINATION
PL55 phone jack connector
FOR INPUT
1. AC INPUT
Plug this AC input cord into AC outlet.
2. INPUT AND LINK OUTPUT CONNECTORS
Input connectors are provided both balanced combination jacks. The XLR jacks are provided for link. When
used to bridged mono, input signal is connected only channel one.
3. MODE SELECTOR
By the mode selector switch, these amplifier can be used for stereo, input parallel and bridged mono
function.
They are wired 1-ground,
pin 2-hot(+), and pin 3 cold (–).
They are wired tip-hot(+),
ring-cold(–), and
sleeve-ground.
GROUND GROUNDHOT HOT
