PUBLIC ADDRESS MIXING AMPLIFIER
8
PA-206/212/224
6. EXTERNAL CHIME (EXT CHIME) SWITCH TERMINAL
It is a terminal to connect the switch when operating the 4-note scale chime of this device on the outside.
W
hen the contact closure comes in external chime switch terminal, 4-note scale chime operates.
7. EXTERNAL MUTE SWITCH TERMINAL
It is a terminal to connect the switch when operating the degree that the sound of INPUT 1 – 6, CHIME, EXT
IN are decreasing in this device. When the contact closure comes in External MUTE switch terminal, the
sound of INPUT 1~6, CHIME, SIREN, EXT IN decreases as much as the volume controlled with the TEL IN
priority control volume and priority control volume (PRIORITY MUTE).
8. SPEAKER OUTPUT TERMINAL
It is a terminal to use when connecting the speaker. When connecting the speaker, use not to be in overload
state.
※ You can control SP1 - 5 terminal with the speaker selection switch on the front side.
※ Be careful not to use 8/4 terminal and SP1 - 5 terminal (high-impedance speaker terminal)
simultaneously.
When connecting the speaker, connect the speaker to use to the speaker terminal on the rear panel in
accordance with the following connection after removing the power cord from the outlet.
※ Caution: Be careful not to make total impedance of the speaker terminal to be lower than defined
impedance in any case. Impedance and output voltage are as the following table.
※ Caution: Select the impedance selection switch to use before connecting the speaker.
※ Caution: Be careful not to use 8/4 terminal and SP1 - 5 terminals simultaneously.

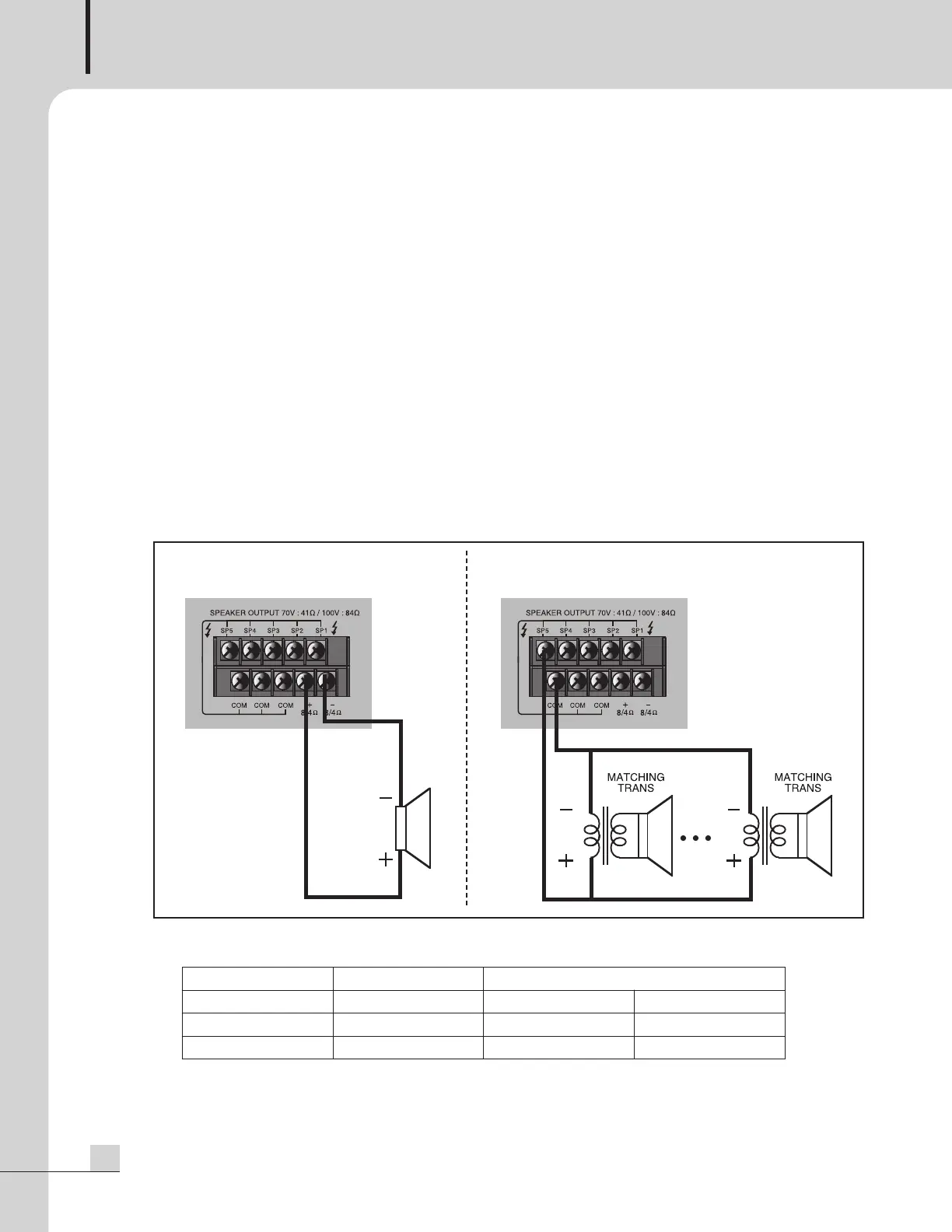

8/4+,8/4- SP1~5•COM
Low Impedance
Speaker Connection
High Impedance
Speaker Connection
8/4Ω SP1~5•COM terminal
PA-206 8/4Ω 100V/167Ω 70V/82Ω
PA-212 8/4Ω 100V/84Ω 70V/41Ω
PA-224 8/4Ω 100V/42Ω 70V/21Ω
To Next Page
