PUBLIC ADDRESS MIXING AMPLIFIER
7
PA-206/212/224

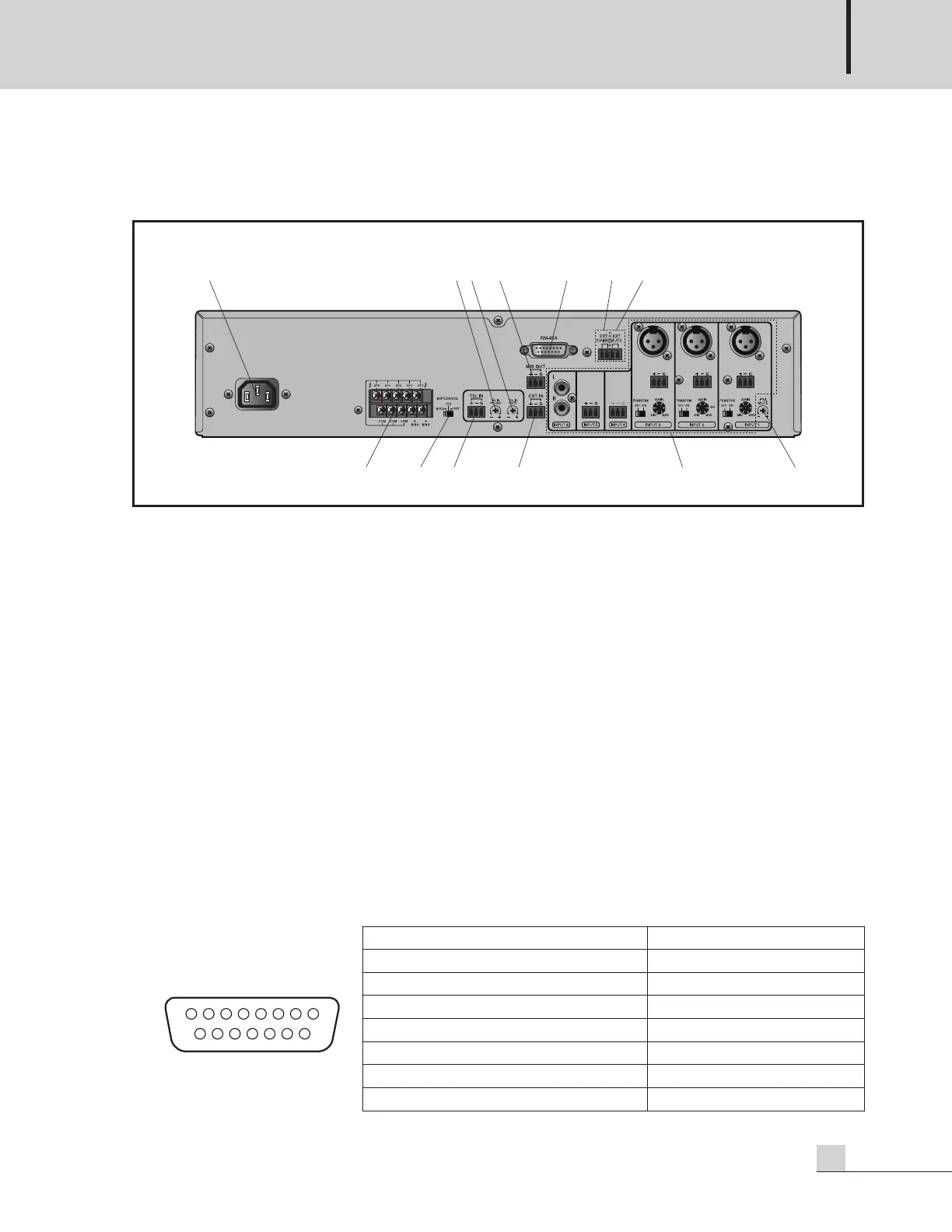

Rear Panel
Rear Panel
1. AC INPUT
It is a terminal to supply power to this device. The power used for this is AC 220V, 230V, 240V, 50/60Hz.
Do not bend by force, pull, twist, heat, or cut the power cord. It may cause a fire or electric shock by
damaging the cord.
2. TEL IN VOLUME CONTROLLER
It is a controller to control the volume of TEL IN input. Use by controlling to desired volume.
3. TEL IN PRIORITY CONTROL VOLUME (TEL IN MUTE)
This is a volume that adjusts the volume of INPUT 1, CHIME, and SIREN sound when a signal is input to the
TEL IN. By using TEL IN priority adjustment volume, user can adjust the input signal to INPUT 1, CHIME, and
SIREN. By using priority adjustment volume of INPUT 1, user can adjust the volume of INPUT 2~6, EXT IN.
4. MIX OUTPUT (MIX OUT) TERMINAL
It is an output terminal to connect when recording the sound printed from this device or using other amps in
parallel. It is a balanced type and pin arrangements are +, -, G.
5. RM-05A CONNECTION TERMINAL
It is a terminal to use by connecting our RM-05A. Pin arrangement of the terminal is as follows.
1 2 3 4 5 76
8 9 10 11 12 13
Pin 1: Remote amplifier input signal hot (+) Pin 9: Remote control ground
Pin 2: Remote amplifier input signal cold (-) Pin 10: DC +24V
Pin 3: Signal ground Pin 11: Remote chime
Pin 4: Remote control 1 (SP1) Pin 12: NC
Pin 5: Remote control 2 (SP2) Pin 13: NC
Pin 6: Remote control 3 (SP3) Pin 14: NC
Pin 7: Remote control 4 (SP4) Pin 15: NC
Pin 8: Remote control 5 (SP5)
