5
PA-2312
P
UBLIC ADDRESS 2 CH POWER AMPLIFIER

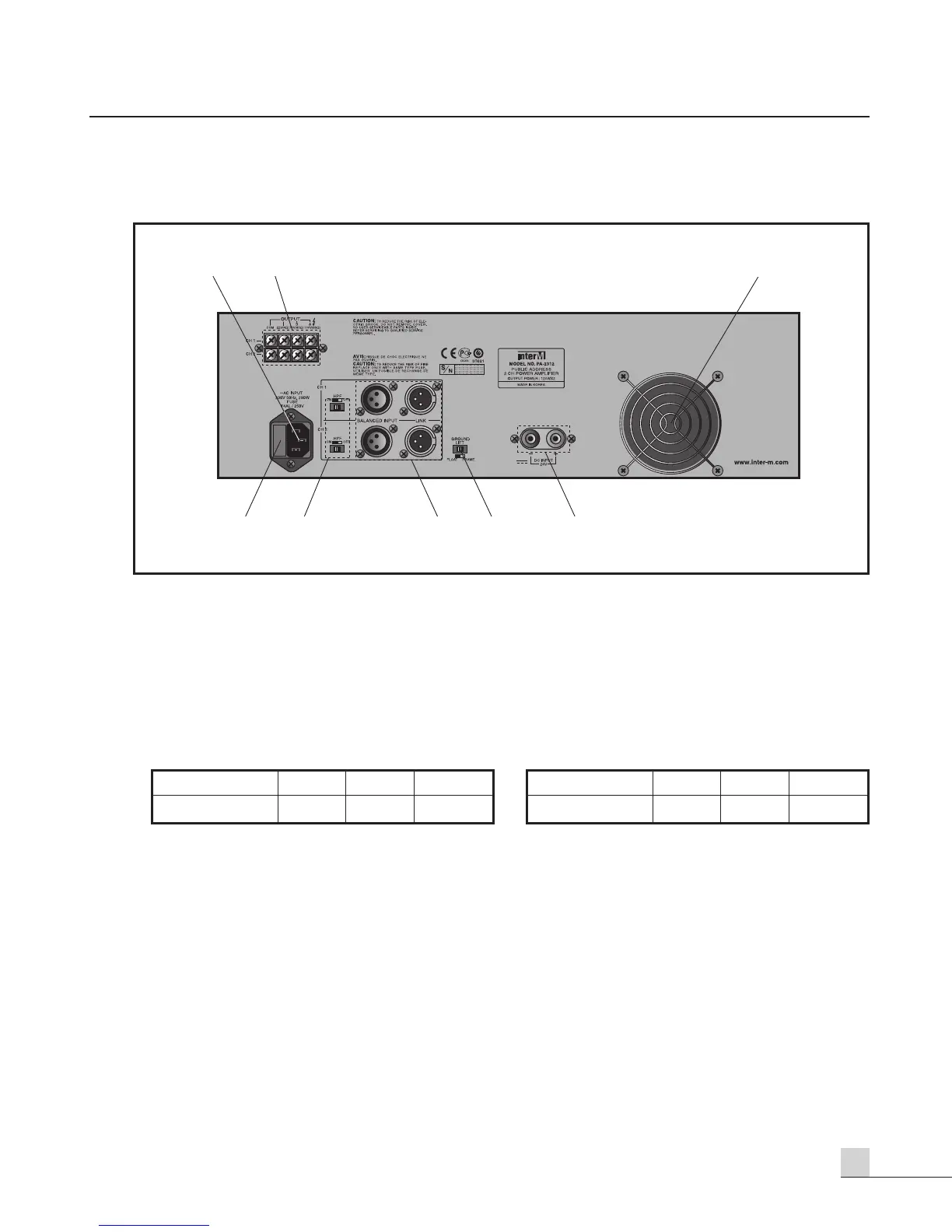

Rear PanelRear Panel
1. AC INPUT POWER
Connect the supplied standard AC input cable here.
2. SPEAKER OUTPUT TERMINALS
These terminals are provided for connecting speakers to the unit. Make certain the combined impedance of
the speakers is equal to or higher than the rated output impedance of the amplifier.
The impedance and output voltage are as follows.
•USA/CANADA & Associated Version •EC & Associated, JAPAN Version
3. FAN VENTS
These vents provide hot air flow out of the unit. It is important to keep them free of obstructions, to prevent the
unit from overheating. It is also important to operate the unit in a dust-free environment.
4. AC FUSE HOLDER
This holder contains the AC overload protection fuse. If the fuse has blown out, replace it with a fuse of the
same type and rating.
If the fuse continues to blow, please refer servicing to qualified service personnel.
5. HIGH-PASS FILTER SWITCH
This switch activates the high-pass filter circuit, which reduces excessive low frequency content to protect
speakers and components.
Impedance 4Ω 5.2Ω 41Ω
Output Voltage 22V 25V 70V
Impedance 4Ω 41Ω 83Ω
Output Voltage 22V 70V 100V
