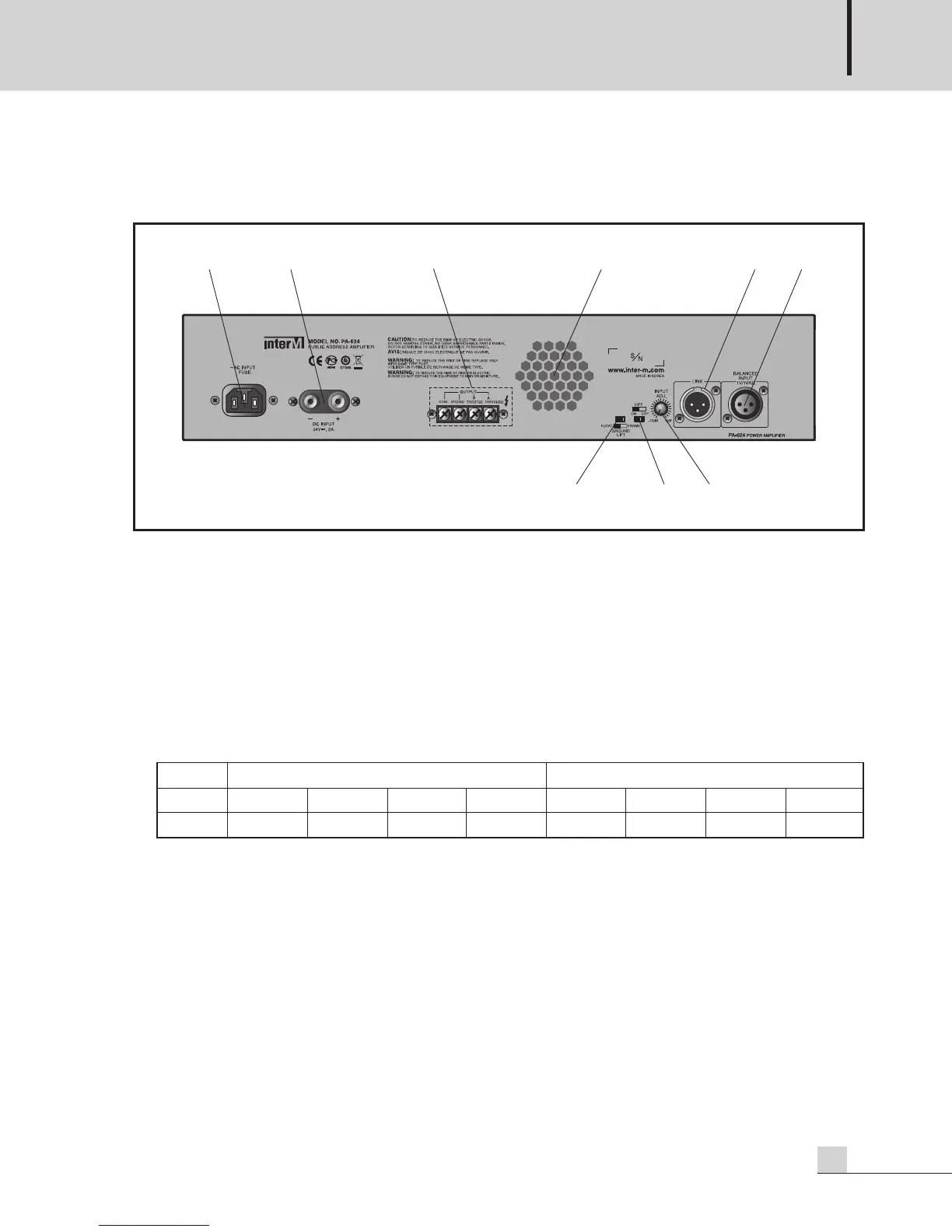

Rear Panel
Rear Panel
1. AC POWER INPUT
Connect the supplied standard AC input cable here.
2. DC INPUT TERMINALS
This is the input terminal for the DC 24V use, please do not forget to check the voltage and polarity (+), (-)
before connecting.
3. SPEAKER OUTPUT TERMINALS
These terminals are used to connect speakers to the unit. You may select 4Ω , 70V or 100V. Make certain the
combined impedance of the speakers is equal to or higher than the rated output impedance of the amplifier.
* In Western Hemisphere(North America, South America and Caribbean), the jack has only 3 terminals
because there is no 100V output.
4. FAN VENTS (PA-624 ONLY)
It is the fan vents located on the front that lower the temperature inside by taking in air. When temperature
reaches a certain level, the speed of the fan gets faster.
Please make certain the vents are not blocked when installing.
5. LINK JACK
The link jack is used for transferring the same input signal to other equipment.
6. INPUT JACK
This is the terminal that receives the signal from the other units such as a pre-amplifier. Please use a
balanced XLR connector with input sensitivity 1V(0dB).
PUBLIC ADDRESS AMPLIFIER
5
PA-612/624
MODEL EC & Associated, JAPAN Version USA/CANADA & Associated Version
PA-612 COM 4Ω/22V 41Ω/70V 83Ω/100V COM 4Ω/22V 41Ω/70V N/A
PA-624 COM 4Ω/31V 21Ω/70V 42Ω/100V COM 4Ω/31V 21Ω/70V N/A
