PUBLIC ADDRESS MIXING AMPLIFIER
8
PU-103/106/112
- 6.3ø Phone Jack
5. INPUT 2 LEVEL SELECT SWITCH
This is the switch to adjust level of INPUT 2
- MIC: for microphones
- AUX: for source devices
6. INPUT 3 TERMINAL

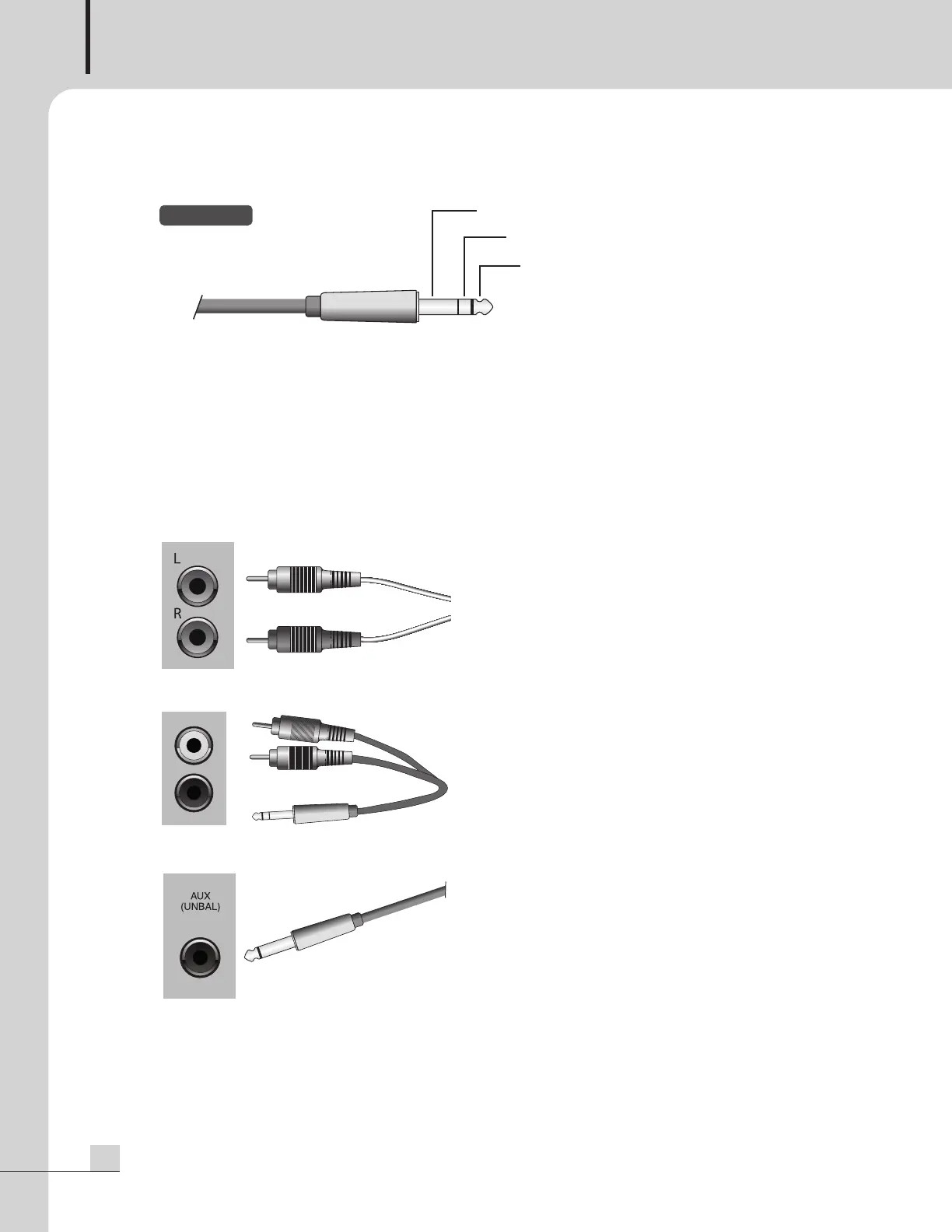

AUX input terminal for such devices as microphone, PC, CD player, and DVD player. Please refer to the
following picture about the suitable cables.
- RCA JACK
- ‘Y’ cable is needed when connecting to PC
- 6.3ø Phone Jack
7. SPEAKER OUTPUT TERMINAL
This is the terminal for speakers. 4Ω(8Ω), 70V, 100V cannot be used at the same time. Make certain that the
total impedance is not less than the rated impedance indicated. It may cause overload and malfunction.
