Inter-m PU-103 - Rear Panel

PUBLIC ADDRESS MIXING AMPLIFIER
7
PU-103/106/112

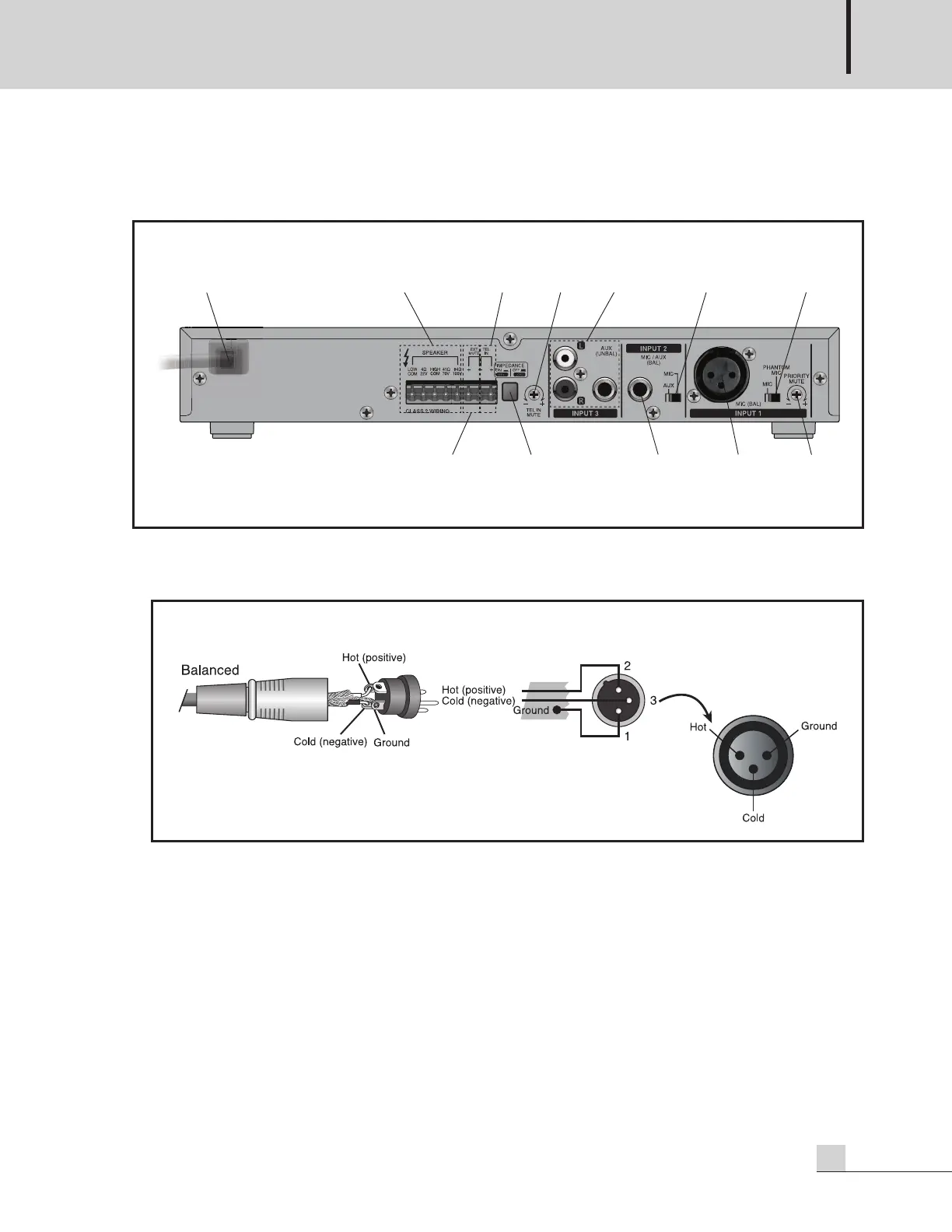

Rear Panel
Rear Panel
1. INPUT 1 TERMINAL
This terminal is for microphones. Be sure to use a balanced cable.
2. SELECT SWITCH OF INPUT 1 PHANTOM MIC
This is the switch to select types of microphones. Be able to use either dynamic microphone or condenser
microphone, and the phantom power of +15V is supplied when using the condenser microphone.
- MIC: for general dynamic microphones
- PHANTOM MIC: for condenser microphones
3. PRIORITY MUTE CONTROL VOLUME
INPUT 1 has priority over INPUT 2~3. Output level of INPUT 2~3 lowers when signal is present on INPUT 1.
Priority mute control volume adjusts the output level on INPUT 2~3.
4. INPUT 2 TERMINAL
This terminal is for such devices as microphone, computer, CD player, and DVD player. Please refer to the
following picture about the suitable cables. 6.3ø phone Jack.
12 7 9 11 6 5 2
8
10 14 3
XLR
XLR JACK
