5
PX-0288
8x8 AUDIO MATRIX

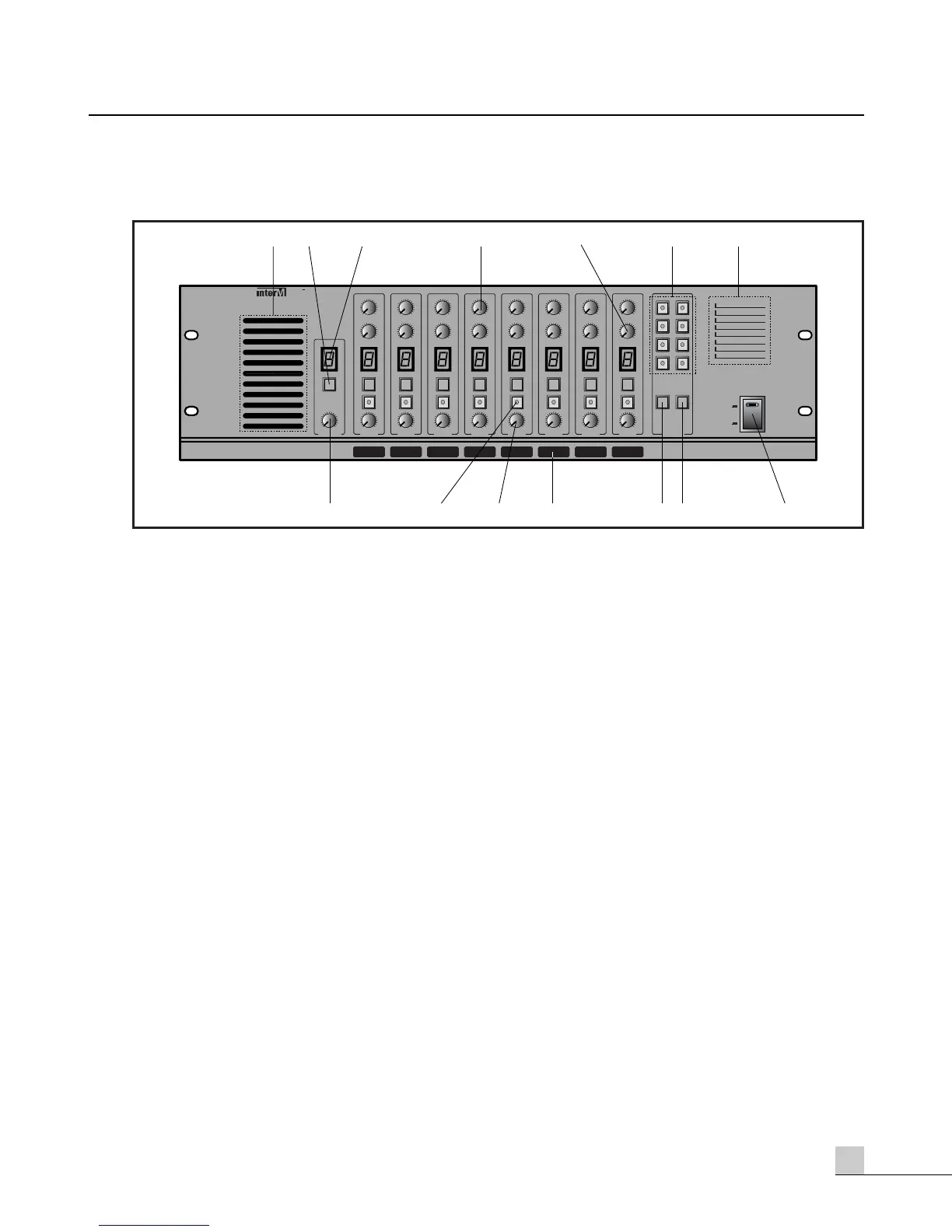

PX-0288 Front Panel
PX-0288 Front Panel
1. MONITOR SPEAKER
This built in monitor loudspeaker allows for any of the 8 input sources to be selected and auditioned.
2. INPUT CHANNEL SELECTOR SWITCH
This selects which input will supply each zone (or which zone will supply the monitor loudspeaker). A
different input will be selected with each press of the button.
3. INPUT SELECTION DISPLAY
This displays the number of the input channel which has been selected for each zone (or which zone has
been selected for the monitor loudspeaker).
4. REMOTE MIC STATION LEVEL CONTROL
This determines the level of the signal originating from the remote microphone station for each channel. Turned
fully counterclockwise is "MINIMUM" or no signal, and turned fully clockwise is "MAXIMUM" or full signal.
5. PAGING MIC LEVEL CONTROL
This adjusts the signal level originating from the paging microphone for each channel. Turned fully
counterclockwise is "MINIMUM" or no signal, and turned fully right is "MAXIMUM" or full signal.
6. INDIVIDUAL ZONE PAGING SELECTOR SWITCH
Depressing this switch determines which zone(s) the paging microphone signal will be sent to. The switch will
illuminate to indicate that the selected zone will receive the paging signal.
7. LABEL AREA
This area is provided to allow each input source to be labeled according to the needs of the installation.
