RM-88
REMOTE MIC STATION

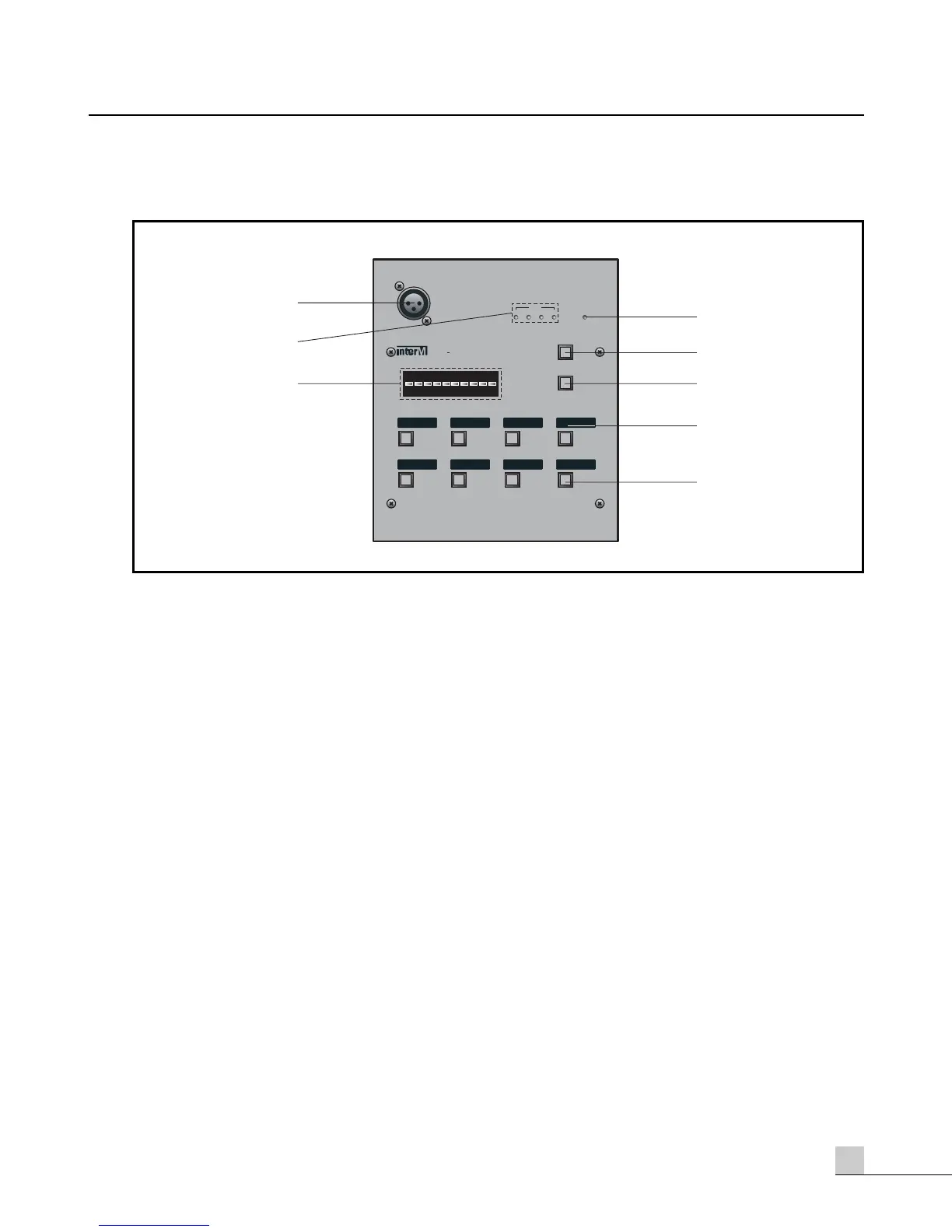

RM-88 Front Panel
RM-88 Front Panel
1. REMOTE MIC INPUT
This allows one microphone to be connected to the RM-88.
2. AUDIO LEVEL METER
It displays the audio level of input or output.
3. BUSY INDICATOR
This indicates which of the RM-88 are in use at the moment. There are no priorities given to the remotes so
the first to make signal is the only one active at any time.
4. POWER INDICATOR
This confirms that the remote is connected and has power applied.
5. ALL BUTTON
When depressed this switch selects all eight zones to receive the signal from this station.
6. TALK BUTTON
This push-to-talk button switches "on" or "off" the microphone input with each depression of the switch. Each
corresponding zone will display an “A” indicating that the zone is receiving an announcement.
7. ZONE SELECTOR
This button switches "on" or "off" the corresponding zone with each depression of the switch. Multiple zones
may be selected at one time.
8. LABEL LOCATION
This allows the option of marking or labeling each zone for easy identification.
5
6
8
4
1
7
2
3
