MICOM DATA (DECK)
17
SAM8 PRODUCT FAMILY (S3C8465)
Samsung’s new SAM8 family of 8-bit single-chip CMOS microcontrollers offers a fast and efficient CPU, a
wide range of integrated peripherals, and various mask-programmable ROM sizes
A dual address/data bus architecture and a large number of bit-or nibble-configurable I/O ports provide a
flexible programming environment for applications with varied memory and I/O requirements.
Timer/counters with selectable operating modes are included to support real-time operations. Many SAM8
microcontrollers have an external interface that provides access to external memory and other peripheral
devices.
A sophisticated interrupt structure recognizes up to eight interrupt levels. Each level can have one or more
interrupt sources and vectors. Fast interrupt processing (within a minimum six CPU clocks) can be
assigned to one interrupt level at a time.
KS88C2416/C4632 MICROCONTROLLER (S3C8465)
The KS88C4616/C4632 single-chip 8-bit microcontroller is designed for useful 10-bit resolution A/D
converter, UART, SIO, ZCD extended PWM application field. Its powerful SAM87 CPU architecture
includes. The internal register file is logically expanded to increase the on-chip register space.
The KS88C4616/C4632 has 16/32 K bytes of on-chip program ROM. A sophisticated bus interface enables
access to external memory and other peripherals when you use the chip in ROM-less mode. Following
Samsung’s modular design approach, the following peripherals are integrated with the SAM87 core:
– Large number of programmable I/O ports (total 56 pins)
– One asynchronous UART module
– One synchronous SIO module
– Analog-to-digital converter with eight input channels and 10-bit resolution
– One 8-bit basic timer for watchdog function
– One 8-bit timer/counter with three operating modes (timer 0)
– One 8-bit timer for zero-cross detection circuit (timer 2)
– Two general-purpose 16-bit timer/counters with four operating modes (timer module 1)
– PWM block with one capture module, 16-bit timer/counter, PWM extension mode, and two PWM outputs
– One zero cross detection module
The KS88C4616/C4632 is a versatile general-purpose microcontroller that is ideal for use in a wide range
of electronics applications requiring complex timer/counter, PWM, capture, SIO, UART and ZCD functions.

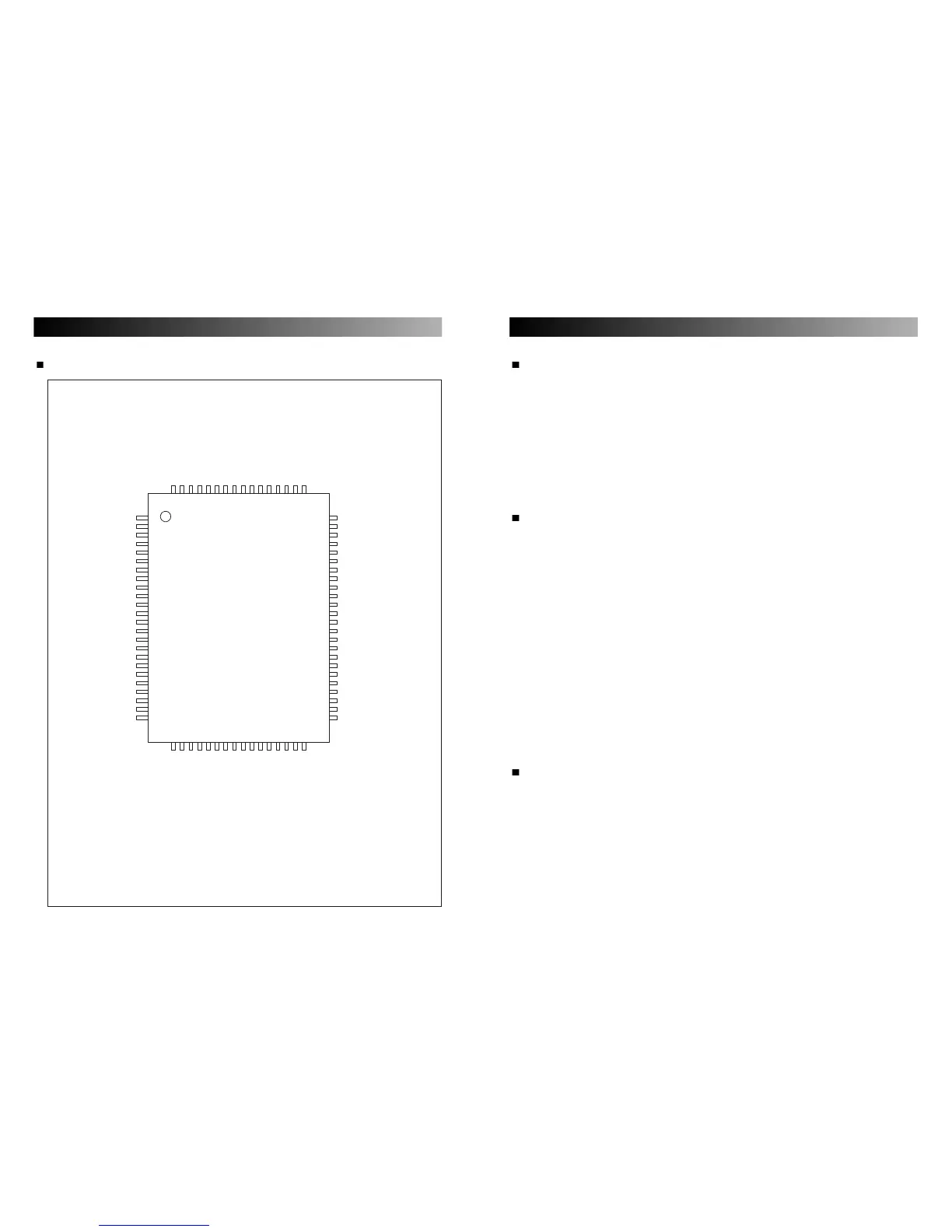

It is available in a 64-pin SDIP or 64-pin QFP package.
OTP
The KS88P4632 is an OTP (One Time Programmable) version of the KS88C4616/C4632 microcontroller.
The KS88P4632 microcontroller has an on-chip 32-Kbyte one-time-programmable EPROM instead of a
masked ROM. The KS88P4632 is comparable to the KS88C4616/C4632, both in function and in pin
configuration.
