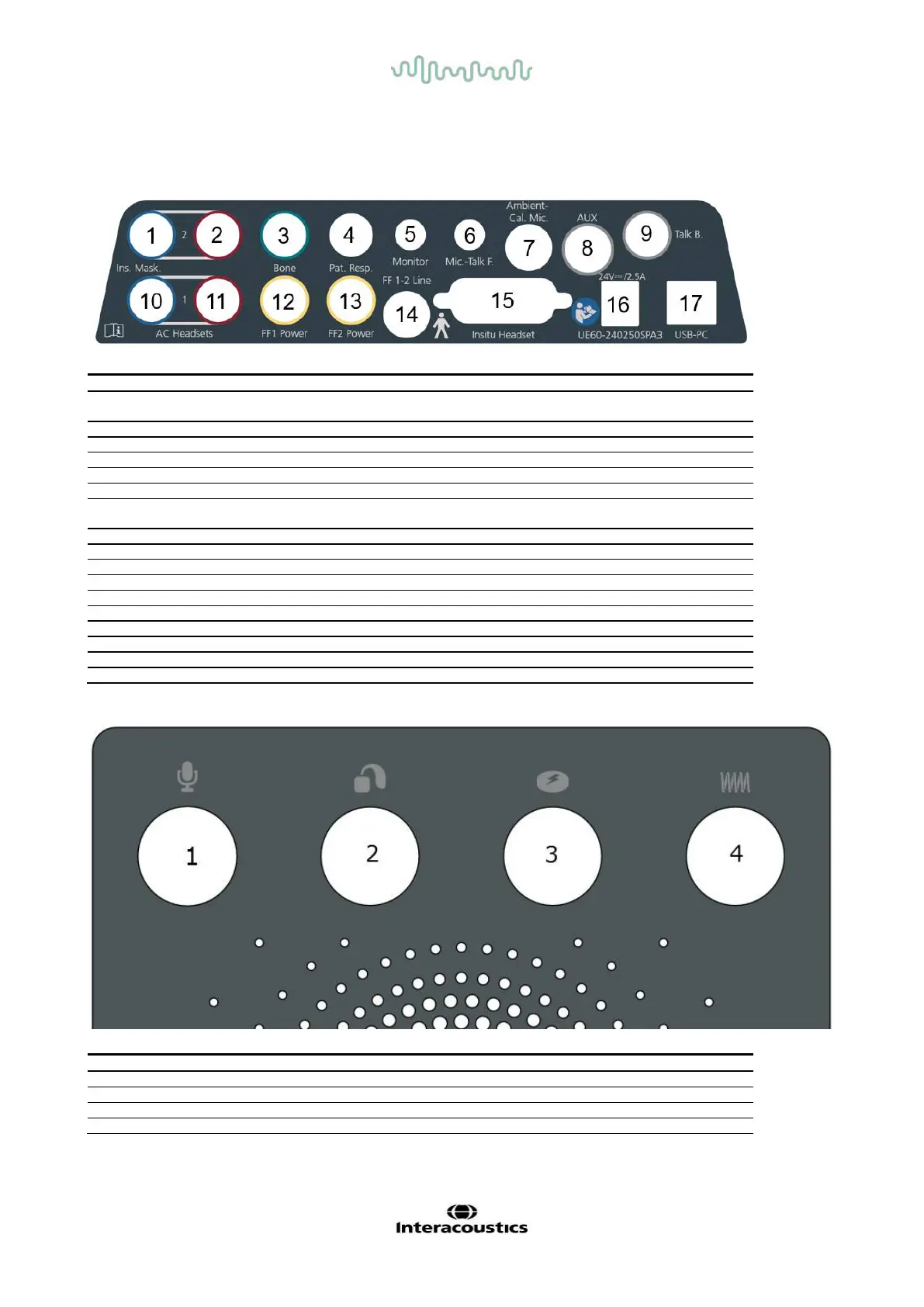

2.4 Connection panel dictionary
Position:
Symbol:
Function:
1
Headset 2 Left and Ins.
Masker
Socket for Insert phone or HF Phone or Insert Masker
2
Headset 2 Right
Socket for Insert phone or HF Phone
3
Bone
Socket for Bone headset
4
Pat. Resp.
Socket for Patient Response Button
5
Monitor
Socket for Monitor Headset
6
Mic. –Talk F.
Socket for Talk forward Microphone
7
Ambient- Cal. Mic.
Socket for Ambient Noise Microphone or Automatic FF Verification
Microphone
8
AUX
Socket for line in from External Sound Source
9
Talk B.
Socket for Talk back Microphone
10
AC Headset Left
Socket for Left AC Phone or HF Phone
11
AC Headset Right
Socket for Right AC Phone or HF Phone
12
FF1 Power
Socket for power out to FF loudspeaker
13
FF2 Power
Socket for power out to FF loudspeaker
14
FF 1-2 Line
Socket for line output to FF loudspeaker
15
Insitu Headset
Socket for Insitu REM headset
16
UE60-240250SPA3
Socket for external power supply
17
USB-PC
Socket for USB connection to PC
Position:
Symbol:
Function:
1
Reference
Socket for Reference Microphone
2
Coupler
Socket for Coupler Microphone
3
Battery
Socket for Battery Simulator power out
4
Telecoil
Socket for Telecoil out
