D-0004578-R – 2022/05 Page 37
Affinity2.0/Equinox2.0 - Instructions for Use - US

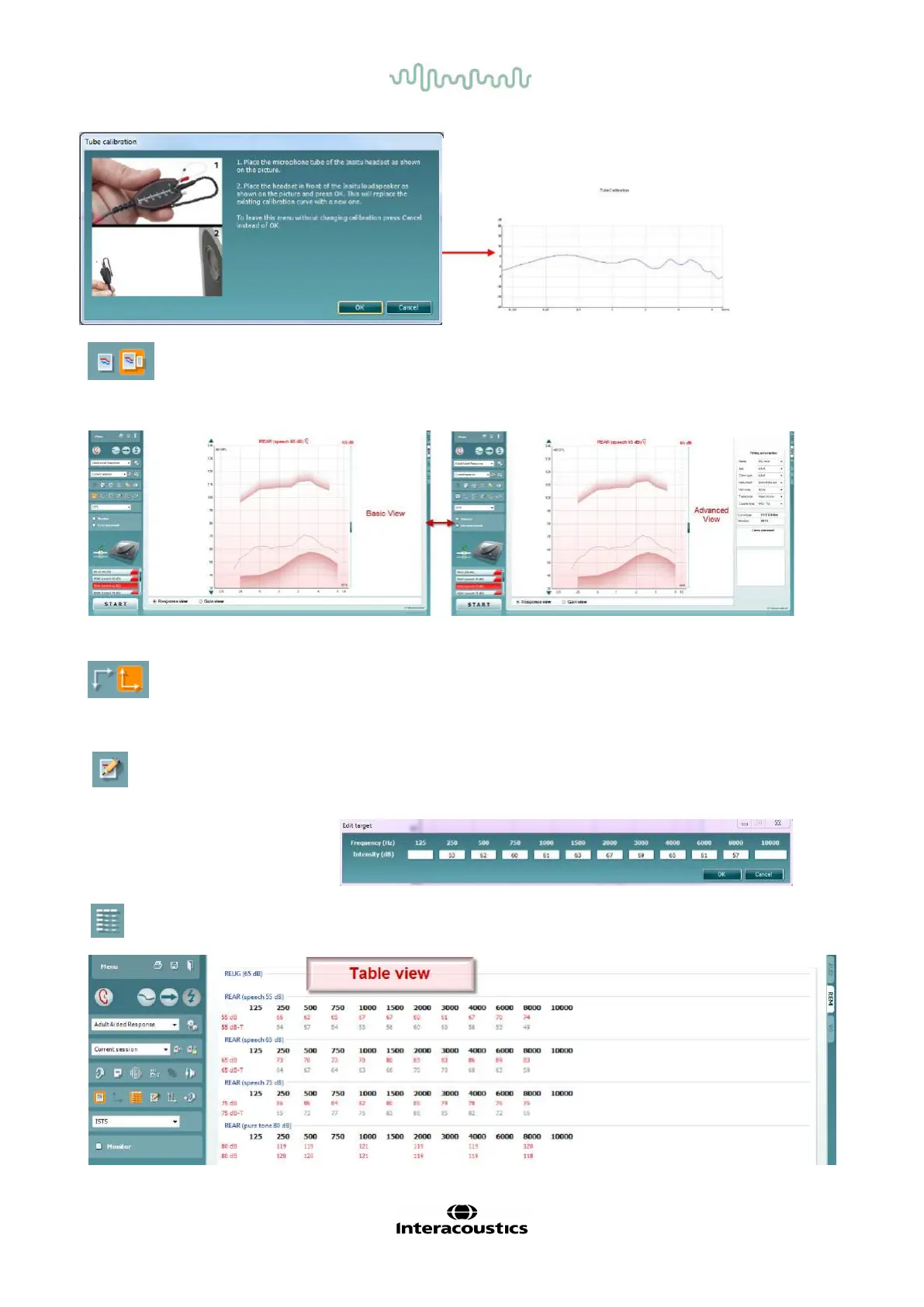

Simple View/Advanced View buttons toggle between an
advanced screen view (including the test and f itting prescription
information on the right-hand side) and a simpler view with a
Normal and Reversed Coordinate System buttons enable you
to toggle between reversed and normal graph displays.
This may be helpf ul for counselling purposes since the reversed
view look more like the audiogram and may theref ore be easier for
the client to comprehend when explaining his/her results.
Insert/Edit Target button allows you to type in an individual
target or edit an existing one. Press the button and insert the
preferred target values in the table as illustrated below. When
satisfied click OK.
Table View button provides a chart view of the measured and target
values.
