D-0004578-R – 2022/05 Page 40
Affinity2.0/Equinox2.0 - Instructions for Use - US

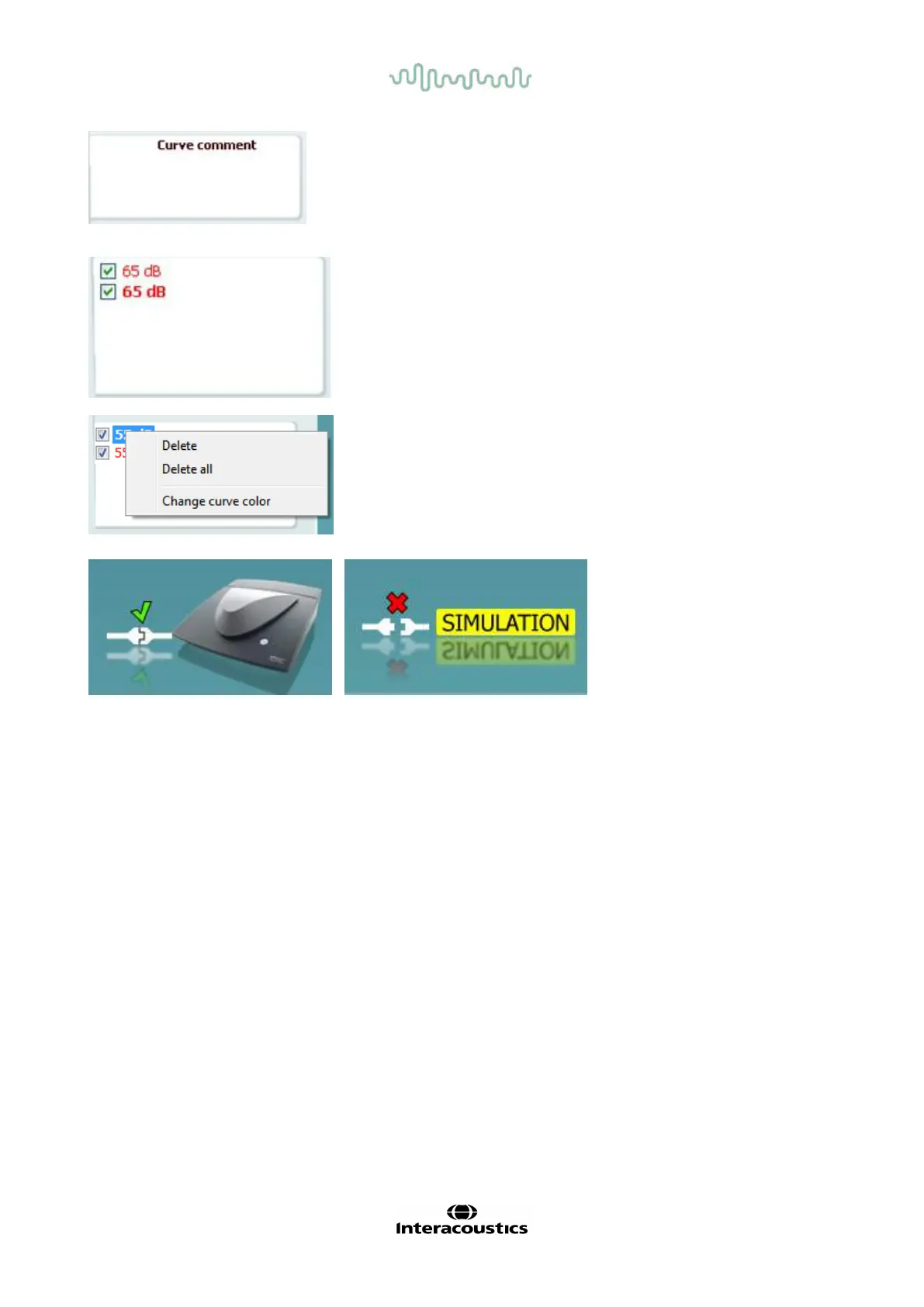

A Curve Comment f or each curve can be typed into the
comment section on the right-hand side.
Select a curve using the curve tag boxes under Curve display
options and write a comment in the comment section.
The comment will then appear in the comment section
whenever the curve is selected.
Curve Display Options are found in the lower right-hand
corner.
If you have measured more curves of the same type (e.g. REIG
curves), they will be listed by their input level. Tick the ones that
are to be displayed on the graph.
Right clicking on the input level in the curve display will give the
fitter various options.
Hardware indication picture: The picture indicates whether the
hardware is connected.
When opening the Suite, the system will search f or the hardware. If it does not detect the hardware,
then the system will automatically continue in simulation mode and the Simulation icon (above right)
will show in place of the connected hardware indication picture (above left).
