AUTO TUNING GAS
Setting Parameters

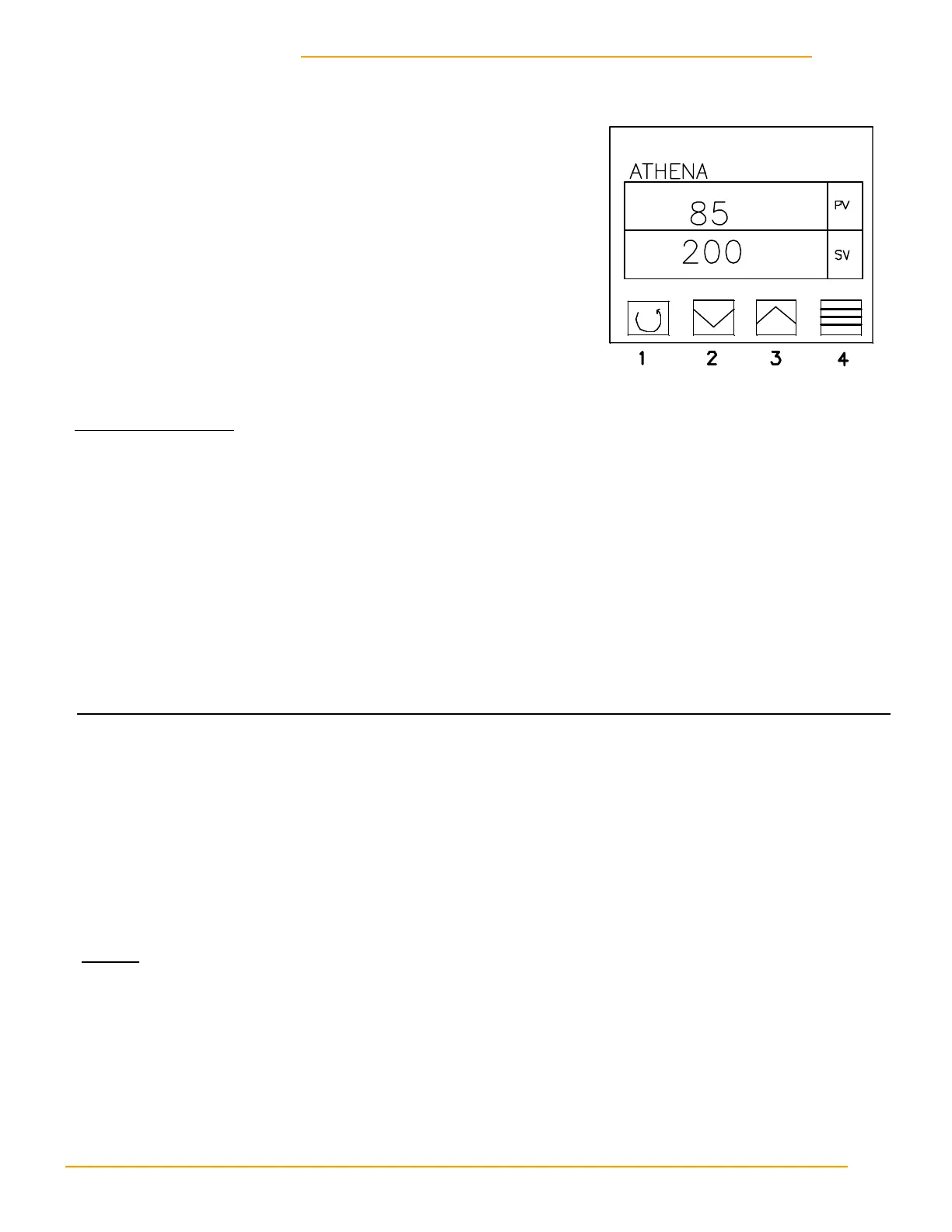

1. Push button #1 to Access Menu (Ac.Cd will flash, then menu # will flash).
2. Use arrow buttons to get to correct menu.
3. Once in correct menu, use button #1 to scroll through menu to view parameters.
4. Use arrow buttons to change parameters.
MENU 03 MENU 05
CY.t1 00 SnSr J
SP.tt off OUt1 Ht.P
LSP.L 0 OUt2 Alr
USP.L 500 Unlt F
1. Blowers on.
2. Push arrow buttons to set SV (set value) 350° F.
3. Push Button #4 and hold until “Tune” flashes— once flashes then release.
4. Turn burner \ heat switch to ON—(switch will return to center).
5. Auto Tune will begin.
5. When "Tune" stops flashing, procedure is complete.
NOTE:
• Dryer must be ambient temperature before auto tune.
• If dryer is double burner, do both sections at same time.
• When all is set and working correctly, put controller into Menu 01. This allows only the
changing of SV. Once in menu 01, button #1 must be depressed for a full 30 seconds to
access other menus.
