Interchange MD8 Series - Electric Hot Air Auto Tuning

1. BLOWERS ON
2. PUSH ARROWS TO SET SV TO 300 DEG. F
3. PUSH BUTTON #4 & HOLD IT IN UNTIL "TUNE" FLASHES, THEN
RELEASE.
4. TURN BURNER\HEAT SWITCH TO ON (SWITCH WILL RETURN TO CENTER)
5. AT THIS POINT AUTO TUNING WILL BEGIN. WHEN TUN
E
STOPS FLASHING,PROCEDURE IS COMPLETE.
*NOTE* DRYER MUST BE AT AMBIENT TEMP. BEFORE AUTO TUNE
*NOTE* IF DRYER IS A DOUBLE BURNER,DO BOTH SECTIONS AT SAME
TIME.
*NOTE* WHEN ALL IS SET & WORKING CORRECTLY,PUT CONTROLLER
INTO MENU 01. THIS ALLOWS ONLY THE CHANGING OF SV.
ONCE IN MENU O1,BUTTON #1 MUST BE DEPRESSED FOR
AFULL30SEC.TOACCESSOTHERMENUS.

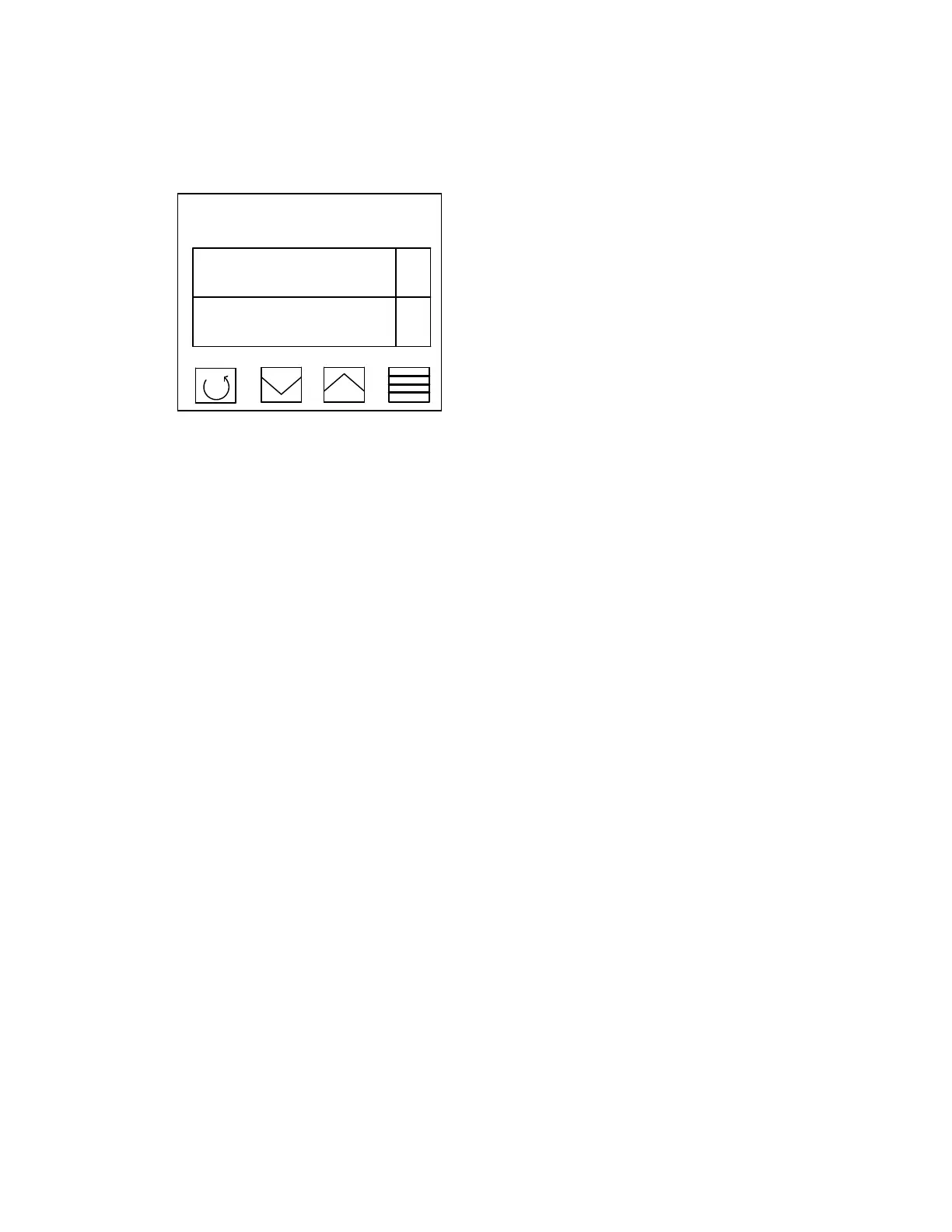

PUSH BUTTON #1 TO ACCESS MENU (Ac.Cd will flash, then menu # will flash) USE ARROW BUTTONS TO
GET TO CORRECT MENU.
ONCE IN CORRECT MENU, USE BUTTON #1 TO SCROLL THROUGH
MENU TO VIEW PARAMETERS.USE ARROW BUTTONS TO CHANGE PARAMETERS.
MENU 03 MENU 05
CY.t1 15 SnSr J
SP.tt off OUt1 Ht.P
LSP.L 0 OUt2 ALr
USP.L 500 UnIt F
SETTING PARAMETERS
AUTO TUNING
2
3
4
P
V
S
V
ATHENA
85
300
TEMPERATURE CONTROL
1
AUTO TUNING FOR
ELECTRIC HOT AIR MD8
Electric Autotuning
