Interflex Datensysteme GmbH 9/23

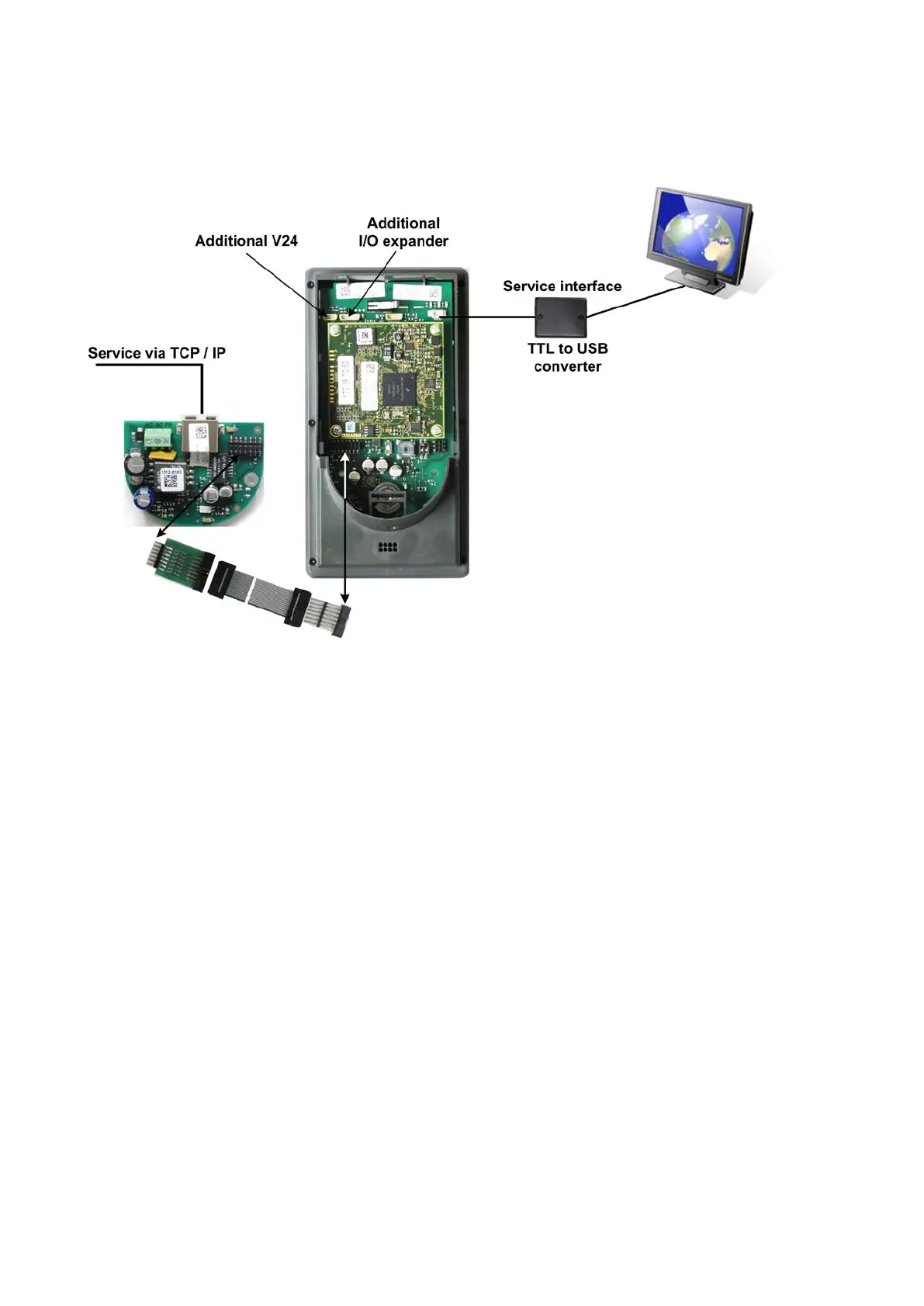

13 Service Interface
Kit no. 75-99-0006 is required for servicing. This kit contains a serial/USB converter as well as a 14-pin flat
conductor cable with a 14-pin adapter board. Detailed information can be found in the mounting instructions
no. 95-10304 which are included in the delivery of the kit.
A service connection is possible via:
1. the service interface connected through a serial/USB converter (order no. 75-99-0006).
2. TCP/IP with Telnet or SSH.
By means of a remote program like PuTTY, the appropriate OC task commands can be issued. Please note
the setting of 115,200 baud as well as Xon and Xoff if the TTL/USB converter is being used.
