13.1 Install Drivers
To operate the service interface of the IF-57xx, you need a USB to UART Bridge VCP driver. You can find
this driver in our Notes Peripherals Database or on the enclosed CD. If necessary, you can download it from
the Internet under the address USB Serial Driver
(http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx). Extract the *.zip file and
install the driver by launching the *.EXE file. For example for Windows, CP210xVCPInstaller_x86.exe.
Follow the wizard's instructions until the driver is fully installed.
13.2 Installation of the IF-USB Serial Adapter
Plug the IF-USB serial adapter into an available USB port on your computer.

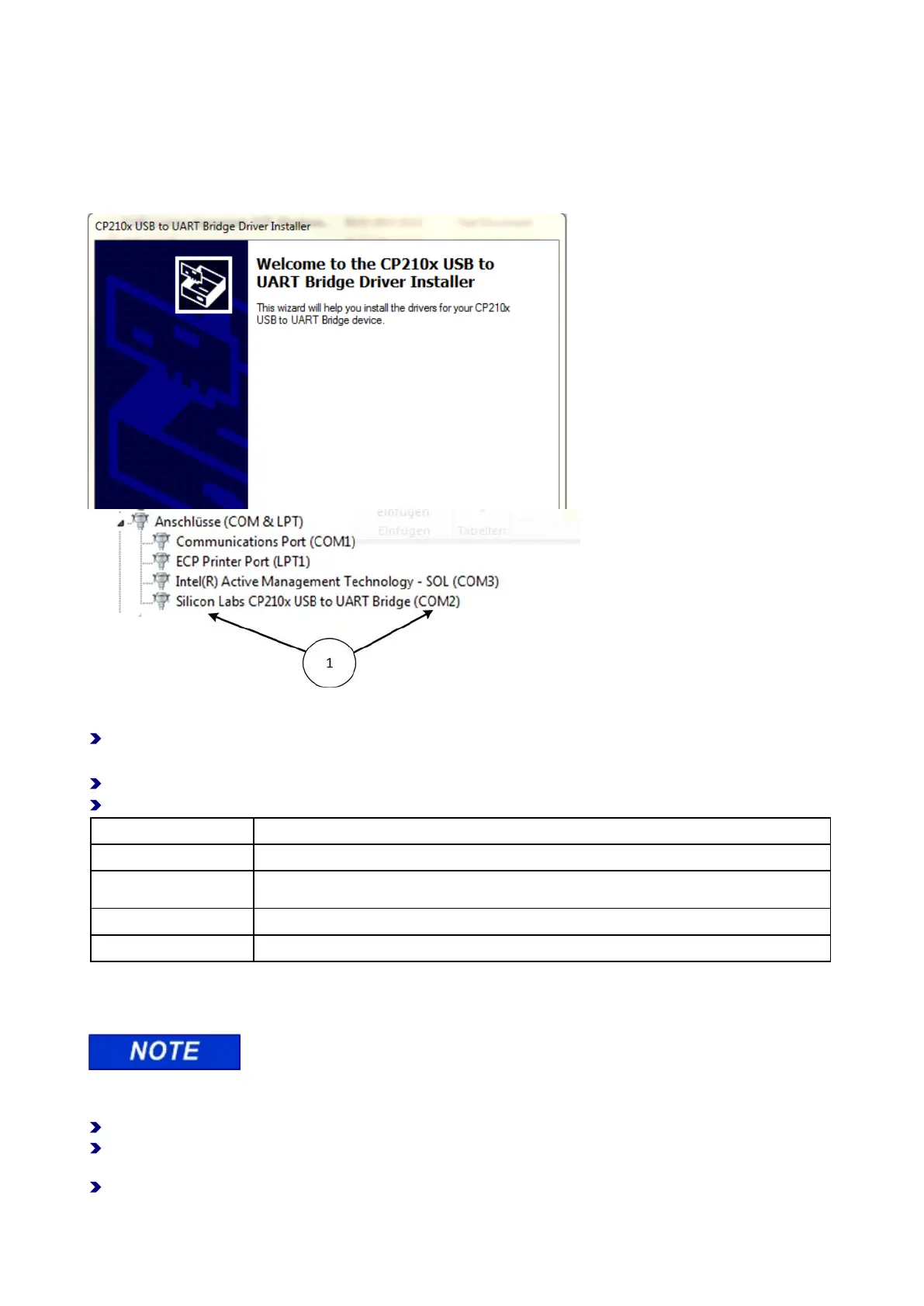

Your computer will recognize the IF-USB serial adapter and assign it to a free COM port. In the illustrated
example (1), the IF-USB serial adapter is assigned to COM2.
Using the device manager of your PC, find out which COM port the IF-USB serial adapter is using.
§ If your computer does not recognize the IF-USB serial adapter, you might have to reinstall the driver.
Now connect the serial interface of the IF-USB serial adapter with your IF-57xx master terminal.
Enter the following values in a terminal emulation software, such as Power Term or PuTTY:
Baud rate 115200 baud
Data bits / parity 8 / none
Stop bits 1
Flow control Xon / Xoff
Port Here, enter the COM port that is connected with the IF-USB serial adapter.
You can now access your IF-57xx master terminal with the terminal emulation software.
14 Initial Operation
Initial operation requires extensive system knowledge and may be carried out only by
authorized personnel.
Procedure:
Turn on the power after you have fastened the back panel of the housing and plugged in the device.
Wait until the display shows the logo, then the IP address followed by the symbols for IN / OUT (IF-5735)
or the time (IF-5721).
Then perform steps 1 to 6 in the specified order.
