Interflex IF-5725-0 Series User Manual

Interflex Datensysteme GmbH 13/23
Housing material Thermally tempered white glass in black or white on a polycarbonate body
Installation type Surface mounting with screws
Cable feed Flush-mounted
18 Accessories
The following items can be ordered as accessories.
§ Transformer for external power supply. 230 / 19 VAC 0.8 A. Order number: 41-10015
§ Transformer with DIN rail mounting for external power supply. Order number: 41-10106
§ USB - serial adapter for servicing. Order number: 75-99-0006
§ I/O controller board with one relay and 2 digital inputs. Order number: 75-700-0141
§ Black spacer (order no. 75-5735-0001) or white spacer (order no. 75-5735-0002 -> not for camera
terminal)
§ Interface expander as I/O expansion. Order number: 75-5735-0003
§ Serial expander for connection of a serial device, e.g. a barcode reader. Order number: 75-5735-0004
18.1 Interface Expansion
The Interface Expander is required for:
§ the connection of a slave terminal.
§ the connection of an I/O controller board.

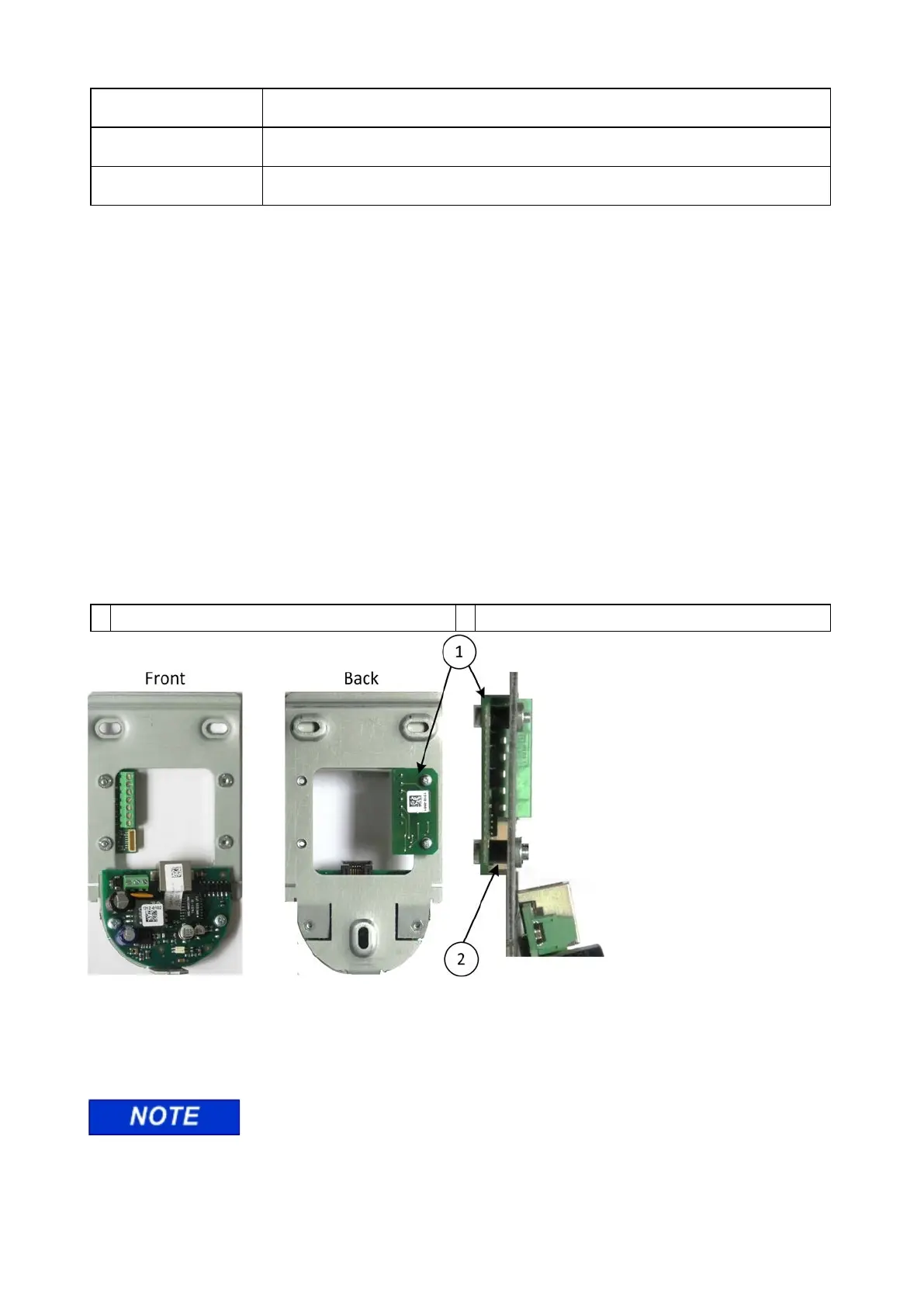

18.1.1 Mounting the Interface Expander
1
Interface expander
2
Distance spacers
Back panel of housing with interface expander
The interface expander is mounted to the back panel of the IF-57xx master terminal using 2 screws and 2
distance spacers. The distance spacers lie between the back panel of the housing and the interface
expander.
In order to install an IF-57xx master terminal with an interface expander to the wall,
you need an IF-57xx spacer. Order number 75-5735-0001 (black) / 75-5735-0002 (white).
