Interflex IF-5725-0 Series User Manual

Interflex Datensysteme GmbH 6/23

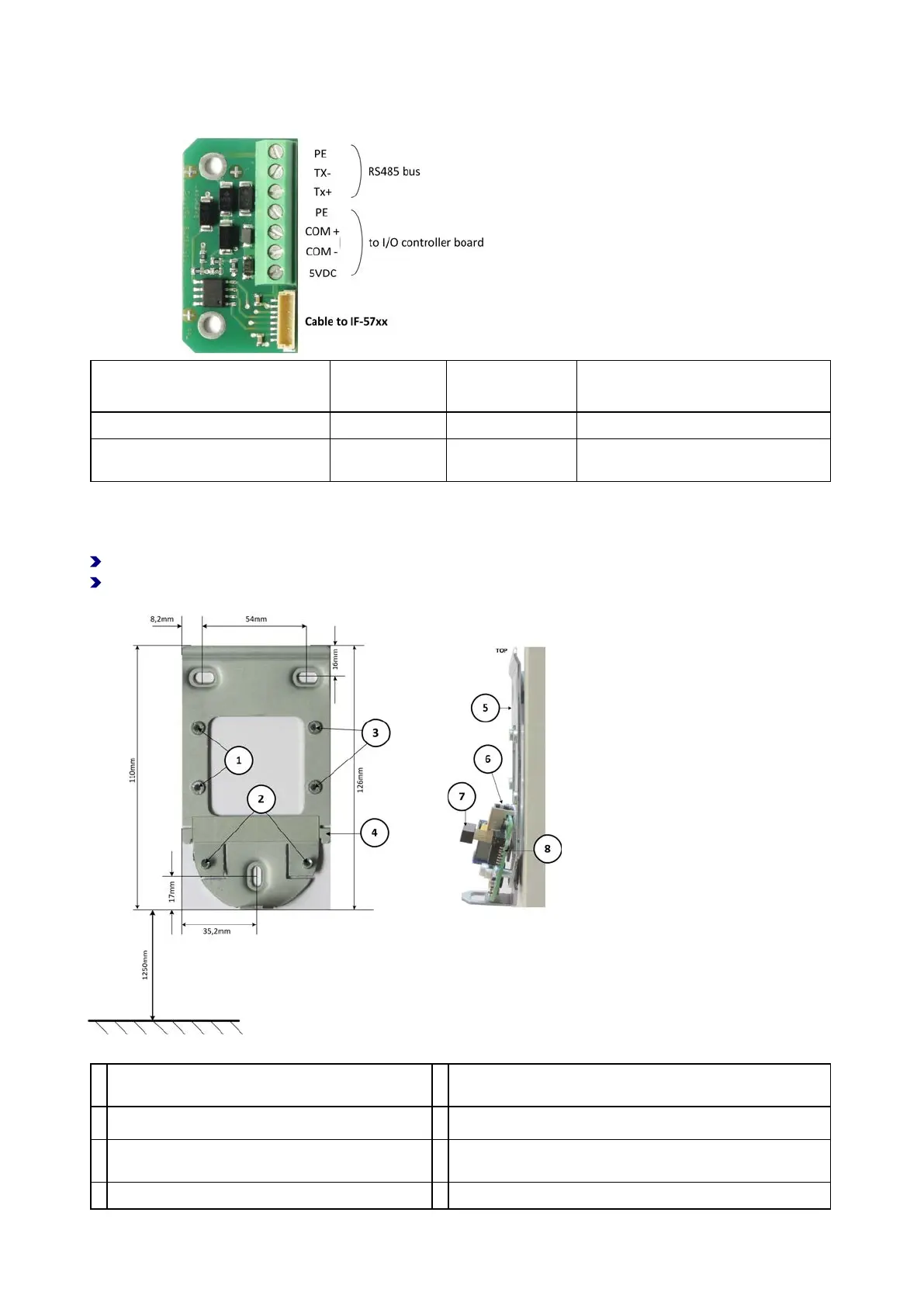

9.3.1 Cable Types Used in Conjunction with an Interface Expander
Use Connections Permissible
Length
Recommended Cable Type
RS485 BUS Tx+ Tx- PE 100 m J-Y(ST)Y 4x2x 0.6 mm²
to I/O controller board PE COM+ COM-
5 VDC
100 m J-Y(ST)Y 4x2x 0.6 mm²
More information can be found in the chapter "Interface Expansion".
10 Fastening the Back Panel of the Housing
Fasten the back panel of the housing only to an even surface.
If the cables are to be surface-mounted, a spacer is required (black, order no. 75-5735-0001 or white,
order no. 75-5735-0002).
Recommended installation height: 1,250 mm
1 Threaded bushing for fastening the interface
expander (accessory)
5 Back panel of housing
2 Threaded bolt for securing the PoE terminal board 6 RJ45 network connector
3 Threaded bushing for fastening an additional V24
interface (accessory)
7 14-pin connector between PoE terminal board and IF-5735
main board
4 Lugs for better fixation of the device 8 PoE terminal board
