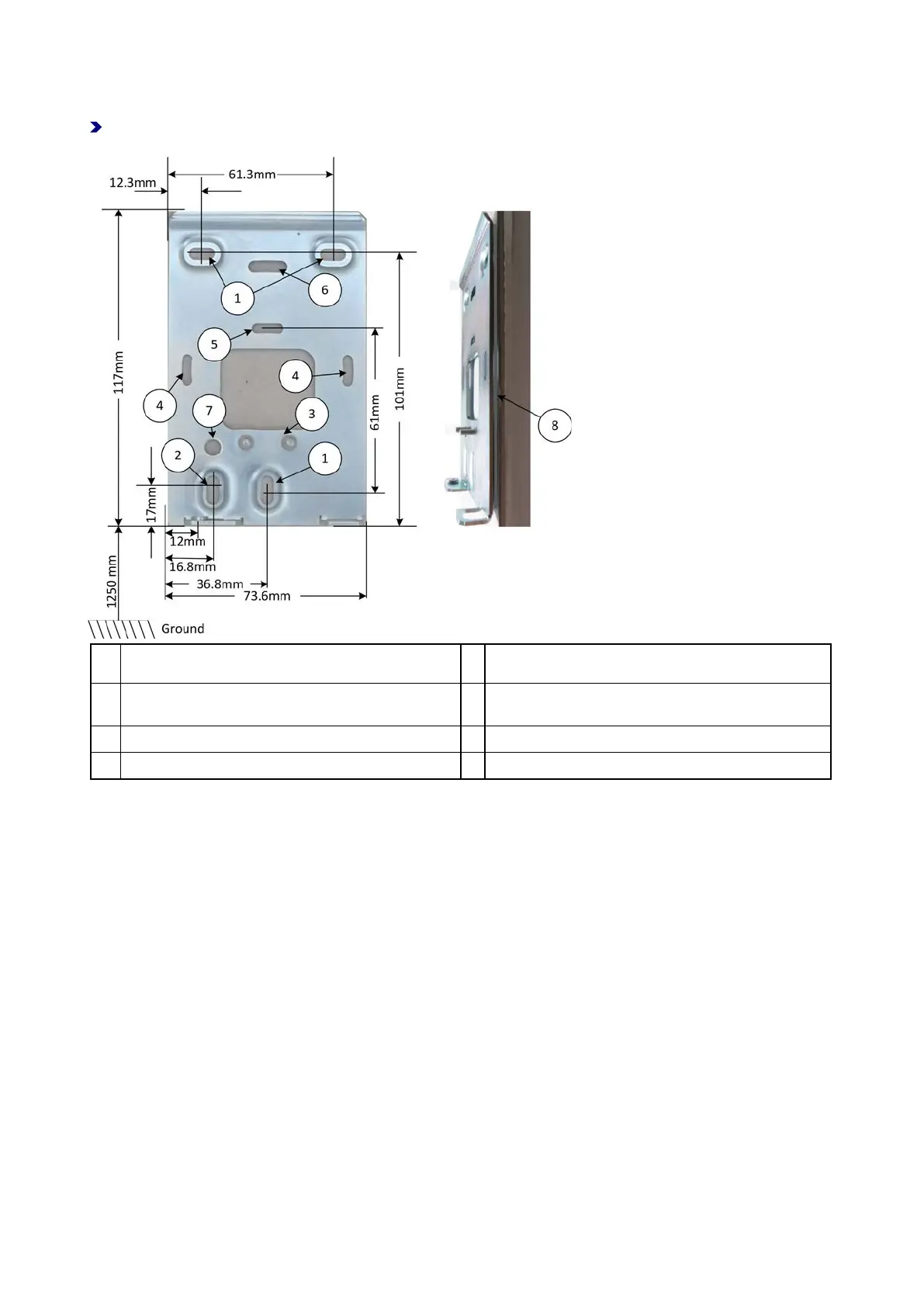

6.5.1 Mounting the IF-800 Outdoor/IF-801 Terminal
Recommendation: Install the terminal at a height of approx. 125 cm (distance from floor to bottom edge
of the terminal).
1 Mounting holes 5 Vertical mounting option with DIN appliance case
2 Alternative mounting hole for wall-mounted cable
inserted from the bottom
6 Mounting holes for US standard
3 Cable gland 7 Hole for adjusting the reader
4 Horizontal mounting option with DIN appliance case 8 Foam rubber
