Intergas Combi Compact HRE 36/30 User Manual

Intergas Heating Ltd 9

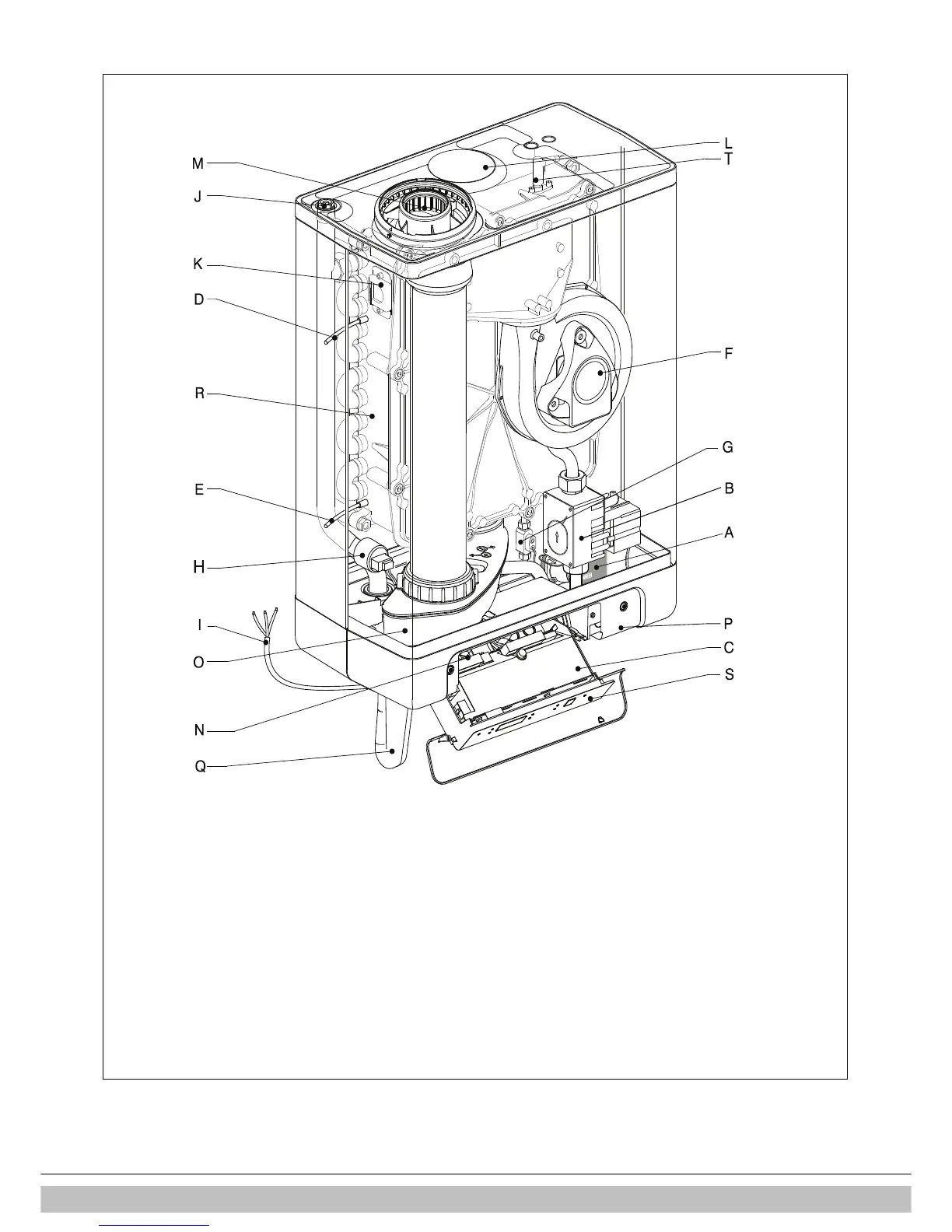

2.6 Components
03010092
A
CH pump L. Air supply cap (not te be removed)
B
Gas valve M. Flue pipe adapter (only to be used in combination
with the accompanying elbow in flue sets).
C
Boiler controller N. Connection block / terminal strip X4
D
Sensor S1 O. Condensate drain pan
E
Sensor S2 P. Hot water sensor S3
F
Fan Q. Condensate trap
G
Flow sensor R. Heat exchanger
H
CH pressure sensor S. Operating panel and read-out
I
Mains lead 230 V AC without plug (stripped) T. Ionisation / Ignition electrode
J
Manual air bleed U. Position of data plate
K
Sight glass

Intergas Combi Compact HRE 36/30 Specifications

General

Model	Combi Compact HRE 36/30
Category	Boiler
Weight	37 kg
Mounting	Wall-mounted
Max working pressure	3 bar
Fuel	Natural Gas
Domestic Hot Water Output	36.0 kW
Flue Options	Horizontal or vertical
Boiler Type	Combi
