Interklima II18SCV1 - Page 12

Interklima High wall unit
II/IO - SCV1
12
II-24 SCV1
IO-24 SCV1
NOTES

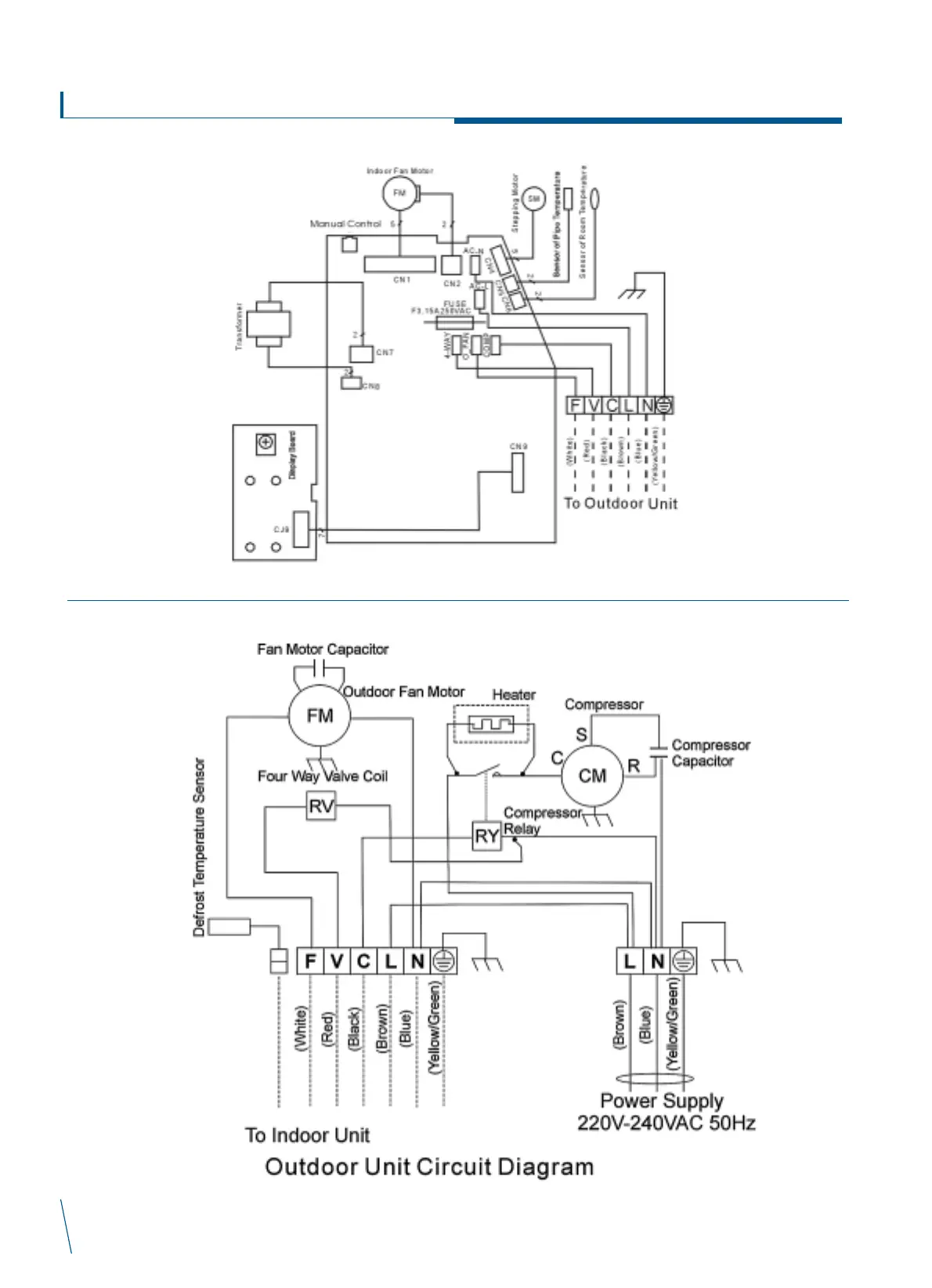

Note: Wiring diagrams on units
take precedence over manual
L - LINE
N - NEUTRAL
F - FAN MOTOR
V - 4 WAY VALVE
C - COMPRESSOR
