Interklima High wall unit
II/IO - SCV1
18
Reduction in capacity VS increase in pipe length
NOTES
1. The copper pipes must be installed level in both the horizontal and vertical
plane.
2. If actual distance above or below condenser exceeds 3 meters make a loop.
3. If actual piping length exceeds 5 meters add refrigerant 25 grams per meter
for sizes 9, 12, or until system pressures are balanced.
4. Performance reduction data is based on 10 meters height difference between
indoor and outdoor unit at standard test temperature conditions.
Operation temperature limits
Piping
Outdoor unit piping is connected after the indoor unit has been
installed.
1. For indoor unit piping, please use 2 spanners. The small
connection should not be overly tightened as it will result in
deformation. Always use spanners with torque limitation.
2. First place the tapered side onto the tapered connection, use
your hand to turn the tapered pipe to the end, then using the
spanner to secure tightly.
3. Refer to table below for recommended details.
Torques for tapered washers

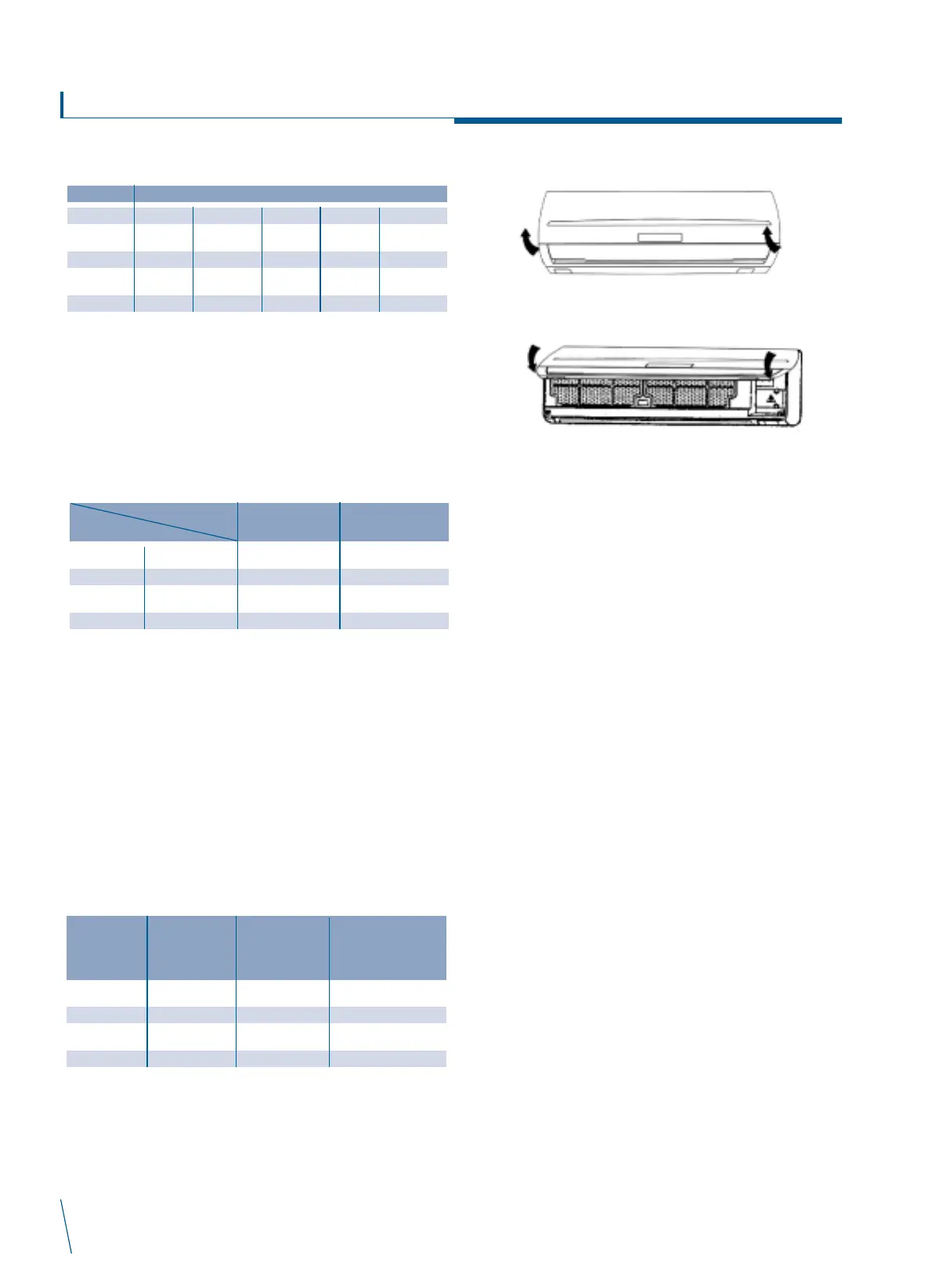

Opening & closing of lift up cover
Open the lift up cover by lifting up at the two positions as
indicated.
Close the lift up cover by pressing down at the two positions as
indicated until the cover is firmly closed.
How to remove the front cover assembly
2. Set the horizontal louver to horizontal position.
3. Remove the screw caps below the louver, and then remove
the mounting screws.
4. Open the lift up cover by grasping the panel at both sides as
shown above.
5. Remove the remaining screws located at the centers.
6. Grasp the lower part of the front cover and pull the entire
assembly out and up towards you.
MODEL PIPING DISTANCE
II-SCV1 5m. 10m. 15m. 20m. 25m.
09 0 1.10% 1.65% 2.30% 3.12%
12 0 1.15% 1.85% 2.45% 3.42%
18 0 1.15% 1.85% 2.45% 3.42%
22 0 1.25% 1.95% 2.65% 3.68%
Pipe Width of Required Conventional
Diameter Washer Torque of the Spanner
Spanner
6.35 mm. 17mm. 1.8 kg f.m 1.5~2.0 kg f.m
9.52 mm. 22 mm. 3.5 kg f.m 3.0~4.0 kg f.m
12.7 mm. 24 mm. 6.0 kg f.m 5.0~6.2 kg f.m
15.88mm 27mm 9.0 kg f.m 8.0-9.6 kg f.m
Temperature
Operation Indoor DB (
o
C) Outdoor DB (
o
C)
Cool Max 32 45
Min 18 7
Heat Max 30 24
Min 5 -5
