Interklima High wall unit
II/IO - SCV1
19

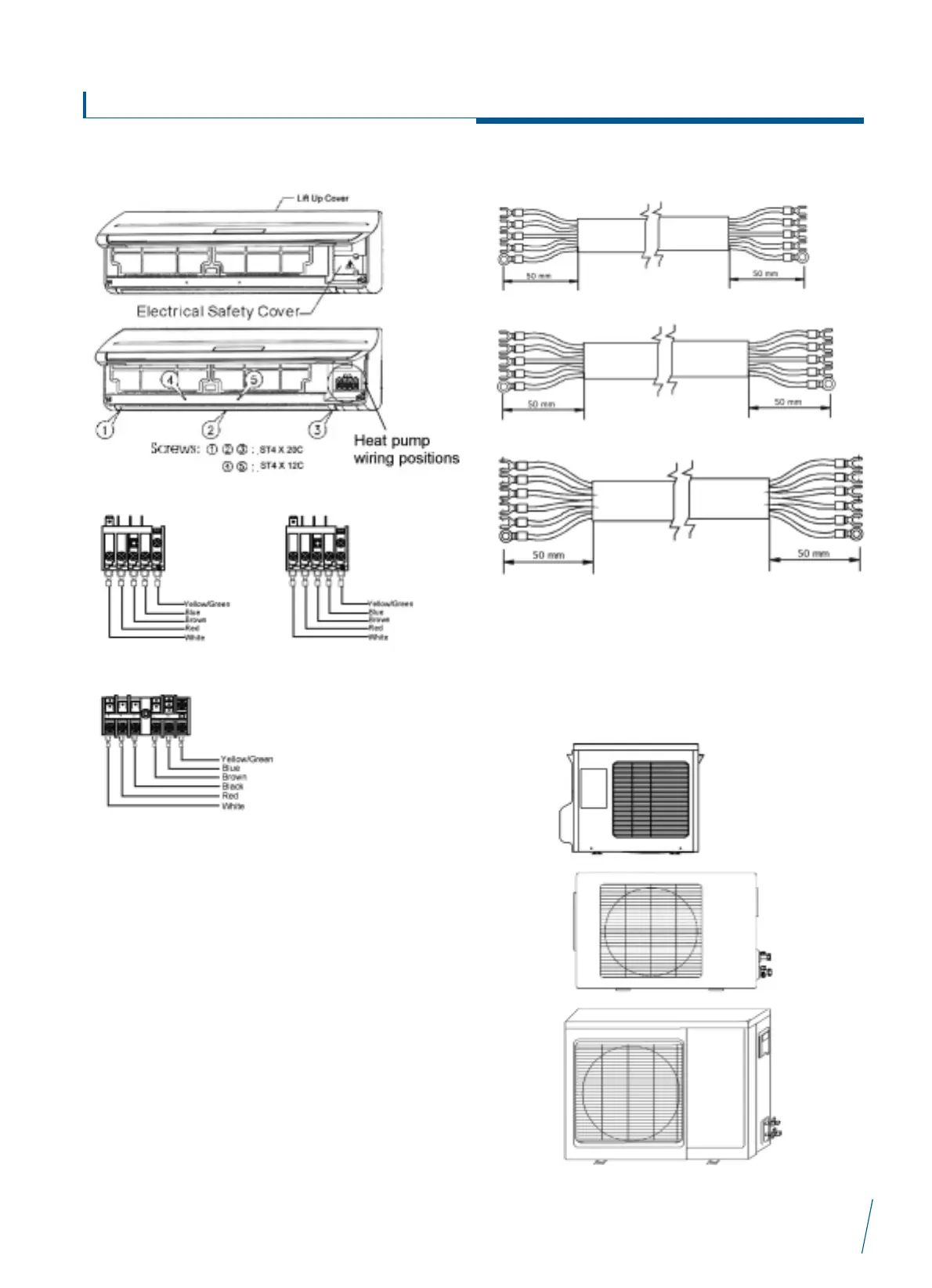

Control camble connections
II09/12SCV1
II 09/12SCV1 II 18 SCV1
II 22SCV1
1. Open the lift up cover.
2. Remove the electrical safety cover. The terminal block for
cable connecting is shown.
3. Connect the control cable plug to the extension wire socket if
provided or connect to terminal strip.
4. Replace the electrical safety cover after the cable connecting
is finished.
5. If the front cover assembly needs to be removed, see
previous heading.
Indoor unit wiring connections
Please note the colours and positions from the wiring diagram
before connecting control wiring.
Loosen the terminal screw, put the cable in place and secure the
screws tightly.
Note:
Wiring diagrams on units take precedence over manual.
Control camble connections for heat pump
II 09/12SCV1
II 18 SCV1
II 22SCV1
Connection of control wires
1. Take off the terminal cover at the right side of unit.
2. Fix control wires and power wires at the terminal block as
indicated.
3. Make sure wiring of indoor & outdoor units are securely fixed.
4. Put on the terminal cover.
IO09
IO-12
IO18/22
