ECM20/ECL60 Installation and Operation Manual

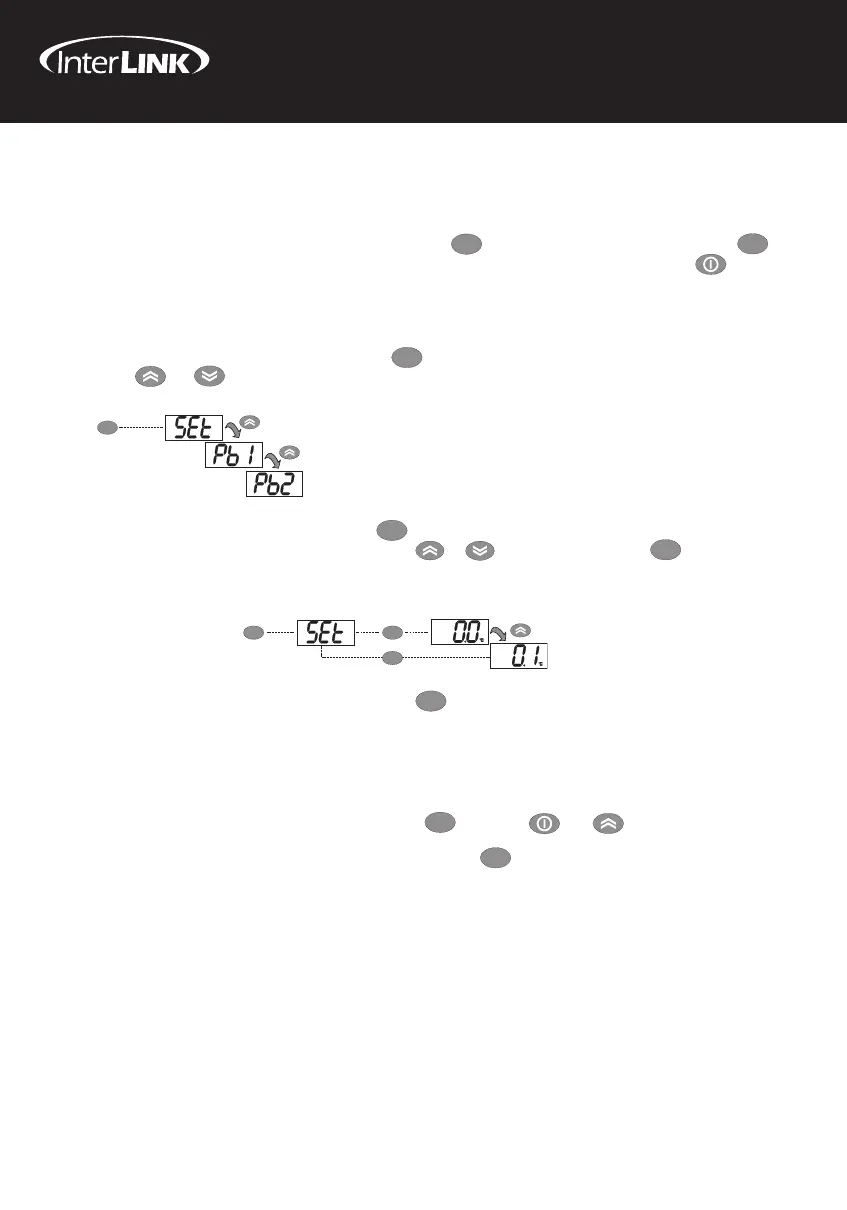

Accessing and Using the Menus
Resources are organised into menus which are accessed by briefly tapping the key (‘Basic Commands’ menu) or by keeping the
key pressed for more than 5 seconds (‘Programming’ menu). Either do not press any keys for 15 seconds (time-out) or press the
key once,to confirm the last value displayed and return to the previous screen.
Basic Commands Menu
Access the ‘Basic Commands’ menu by pressing and releasing the key. If no alarms are active, the ‘SEt’ label appears.
By pressing the and keys you can scroll all folders in the ‘Basic Commands’ menu:
- AL: alarms folder (only visible if an alarm is active);
- SEt: Set point setting folder.
- Pb1: probe 1 folder;
- Pb2: probe 2 folder **;
- dit: interval between defrosts folder;
- dEt: defrost timeout folder;
- dSt: defrost end temperature folder **;
(** models ID971 and ECL60 only)
Setting the Set point: To display the Set point value press the key when the ‘SEt’ label is displayed.The Set point value appears on the
display. To change the Set point value, press the and keys within 15 seconds. Press to confirm the
modification.
Change the value of the dit, dEt and dSt defrost parameters in the same way.
set
set
set
Displaying the probes: When the Pb1 or Pb2* label is displayed, press and the associated probe value will appear
(* Pb2 is only present on models ID971 and ECL60).
set
set set
set
set
Basic Commands Edit Lock
It is possible to disable the keypad on this device.
The keypad can be locked by entering the ‘Basic Commands’ menu using and pressing and within 2 seconds or by
programming the ‘LOC’ parameter (see ‘diS’ label folder)
With the keypad locked you can still access the ‘Basic Commands’ menu by pressing to display the Set point and dit, dEt and dSt
parameters, but you cannot edit them.
To disable the keypad lock, repeat the locking procedure.
set
set
set
set
