EN: Installation Sheet
Description
ATS7320 enables alarm reporting via GSM for the following
ATS panels:
• ATS Advisor Master: ATS1000, ATS2000, 3000, and 4000
series
• ATS Advisor Advanced: ATSx000A(-IP) series, ATSx500(-
IP) series
All reporting formats available through PSTN are fully
functional, including voice reporting and audio listen-in. The
GSM module can be used for primary reporting, as well as
backup reporting (using multiple central stations).
ATS7320 can establish a reliable connection for remote
up/downloading to and from the ATS panel.
Important notes
• ATS7320-SIM is an ATS7320 GSM module with a
preinstalled UltraSync SIM card. This module and its SIM
card should be used for UltraSync functionality only when
the panel is registered in the UltraSync portal. Registering
the panel in the UltraSync portal is linked to a monthly
service cost.
UTC reserves the right to check if the UTC SIM card is
used in the correct modem. Improper use of the modem or
SIM card can result in the product to stop operating with
the UltraSync infrastructure.
• Disable the PIN code request on your SIM card (via any
mobile telephone).
• For proper operation a GSM card with subscription is
mandatory (not prepaid).
• ATS7320 will only operate (dial/answer) when connected
to the home network.
• The product must be used only with the supplied antenna.
• Make sure the antenna itself is placed outside of the
control panel.
• The antenna must be mounted on an appropriate distance
from people, e.g. more than 200 mm.

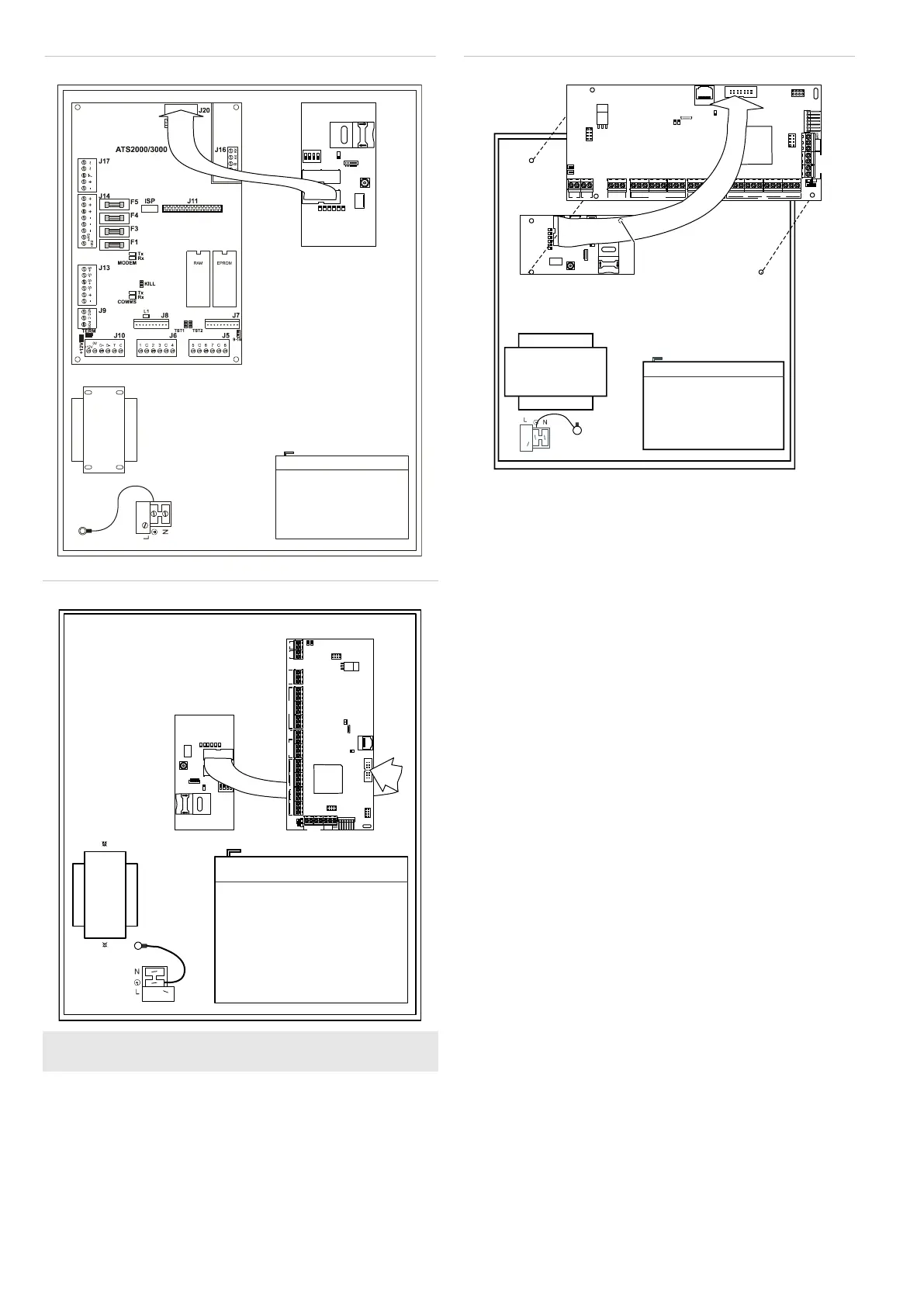

ON
1 2 3 4
(4)
(4)
(4) (4)
(2)
(4)
(4)
(3)
(3)
(5)
(1)
(1)
(1)
(1)
(4)
RxTx
USB
MI
IP
CON12
CON13
T1
T2
S4
S5
+ +
S1 C
+
S2 C
T C
+ + - -
1 C 2 3 C 4 5 C 6 7 C 8
~
~
+ -
AC
BATT
LC-OUTPUTS
HC-OUTPUTS
SIR TMP AUX POWER
INPUTS
CT
+
S3 C
CON16
NTC
COMMS
+12V 0VD+ D-
(2)
ON
1 2
3
4
ON
1 2
3
4
(4)
(4)
(4)
(2)
()5
RxTx
USB
MI
IP
CON12
CON13
T1 T2
S4
S5
+
+
S1 C
+
S2 C
T C
+
+
- -
1 C 2 3 C 4 5 C 6 7 C 8
~
~
+ -
AC
BATT
LC-OUTPUTS
HC-OUTPUTS
SIR TMP AUX POWER
INPUTS
CT
+
S3 C
CON16
NTC
COMMS
+12V 0VD+ D-
