Interlogix TVD-5303 - Page 14

8 Installation Guide
IP motorized lens bullet camera

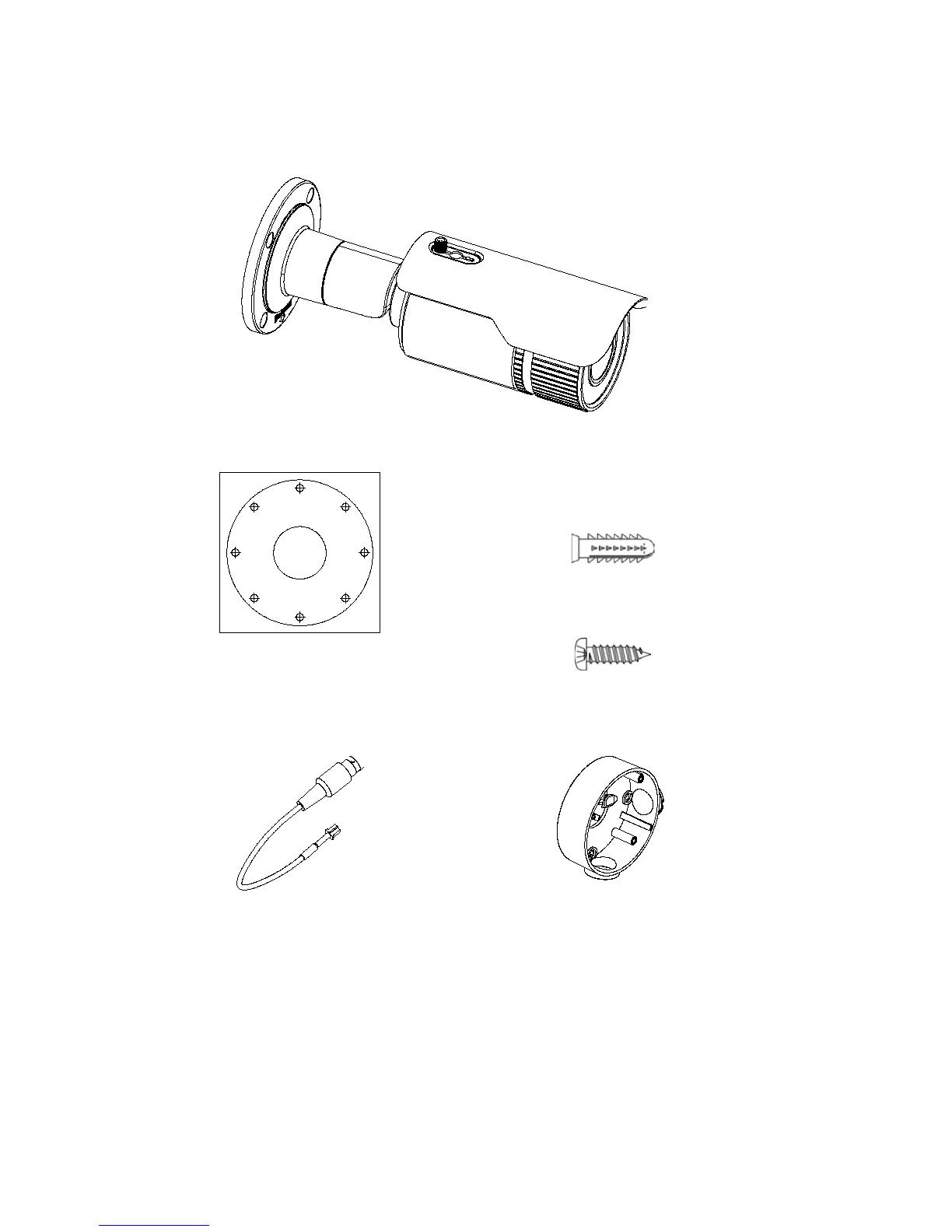

Camera:
Drill template: Screws:
Drywall anchor
7.5 × 24.5 mm (4 pcs)
Screw
M4 × 25 mm (4 pcs)
Video test cable: Back box:
Hole A: for cables routed through the wall
A
Drill Template
1
1
1
2
2
2
2
Screw hole 1: for integrative bracket
Screw hole 2: for conduit back box
