Intermatic Ascend STW700W User Manual

4

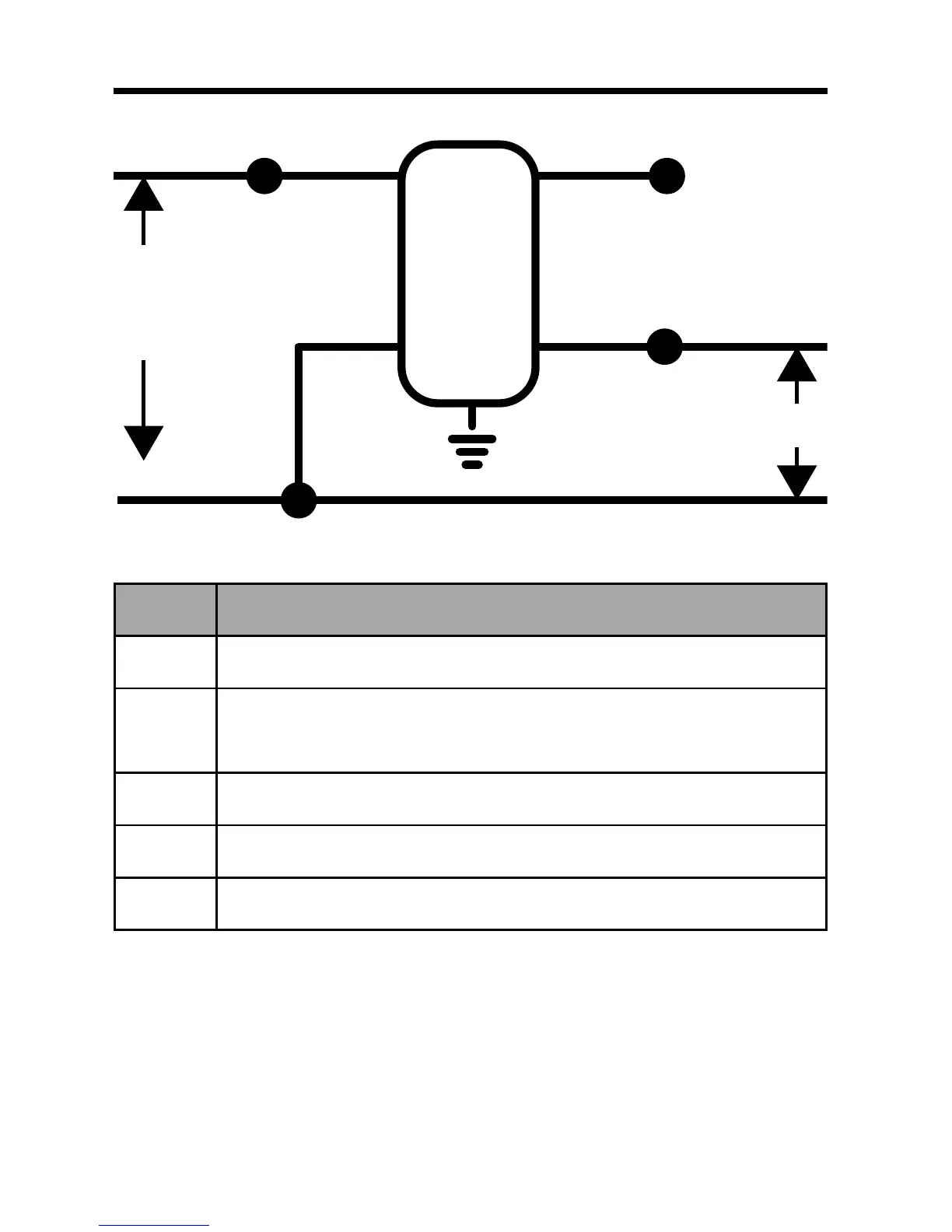

SINGLE-POLE WIRING
120 V
Power
Source
White
Black
Blue
Green
Red
Neutral
Line
Timer
Load
Wire Description
Blue Connects to black wire from Load
White Connects to white (neutral) wire from Load and Power
Source
Black Connects to black (hot) wire from Power Source
Green Connects to ground
Red Not used in single-pole installations
Note: To be installed in single- and double-gang with 2-1/2"
minimum depth. Please consult a qualified electrician for
specific wiring details.

Intermatic Ascend STW700W Specifications

General

Brand	Intermatic
Model	Ascend STW700W
Category	Timer
Language	English
