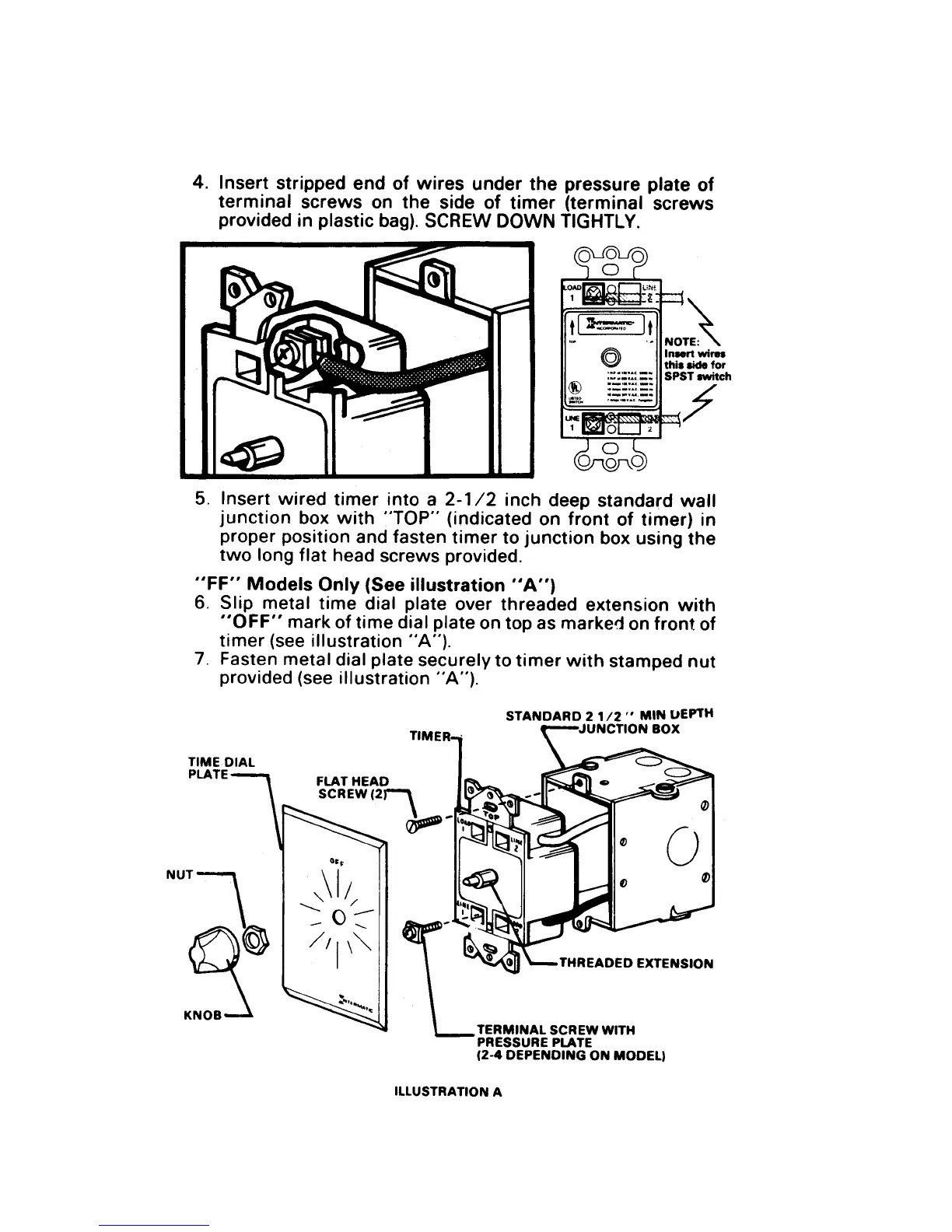

4.
Insert stripped end
of
wires
under
the
pressure
plate
of
terminal
screws on
the
side
of
timer
(terminal
screws
provided in
plastic
bag). SCREW
DOWN TIGHTLY.
tl~lt
-
..
5.
Insert
wired
timer
into a
2-1/2
inch deep standard
wall
junction
box
with
"TOP"
(indicated on
front
of
timer) in
proper position and fasten
timer
to
junction
box using
the
two
long
flat
head screws provided.
"FF"
Models
Only
(See
illustration
"A")
6.
Slip metal
time
dial plate
over threaded extension
with
"OFF"
mark of time dial plate on top as marke1 on
front
of
timer
(see illustration
"A").
7.
Fasten metal dial plate securely
to
timer
with
stamped
nut
provided (see
illustration
"A").
TIME DIAL
PLATE
NUT"]
.~~
STANDARD 2
1/2"
MIN
UEPTH
JUNCTION BOX
0
THREADED
EXTENSION
TERMINAL SCREW WITH
PRESSURE PLATE
(2-4
DEPENDING ON MODEL)
ILLUSTRATION
A
