Intermatic PE103 - Resetting the Timer; Clearing the Timer Memory; Specifications; Limited One-Year Warranty

LIMITED ONE-YEAR WARRANTY
If within the warranty period specied, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole op-
tion, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units
caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart
or otherwise modied; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s
and batteries; (f) the nish on any portion of the product,such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial
installation costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI-
DENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED
WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY
MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim online at
www.intermatic.com.
This warranty is made by: Intermatic Incorporated, Customer Service 7777 Winn Rd., Spring Grove, Illinois 60081-9698. For warranty service go to: http://www.
Intermatic.com or call 815-675-7000.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
158--01225

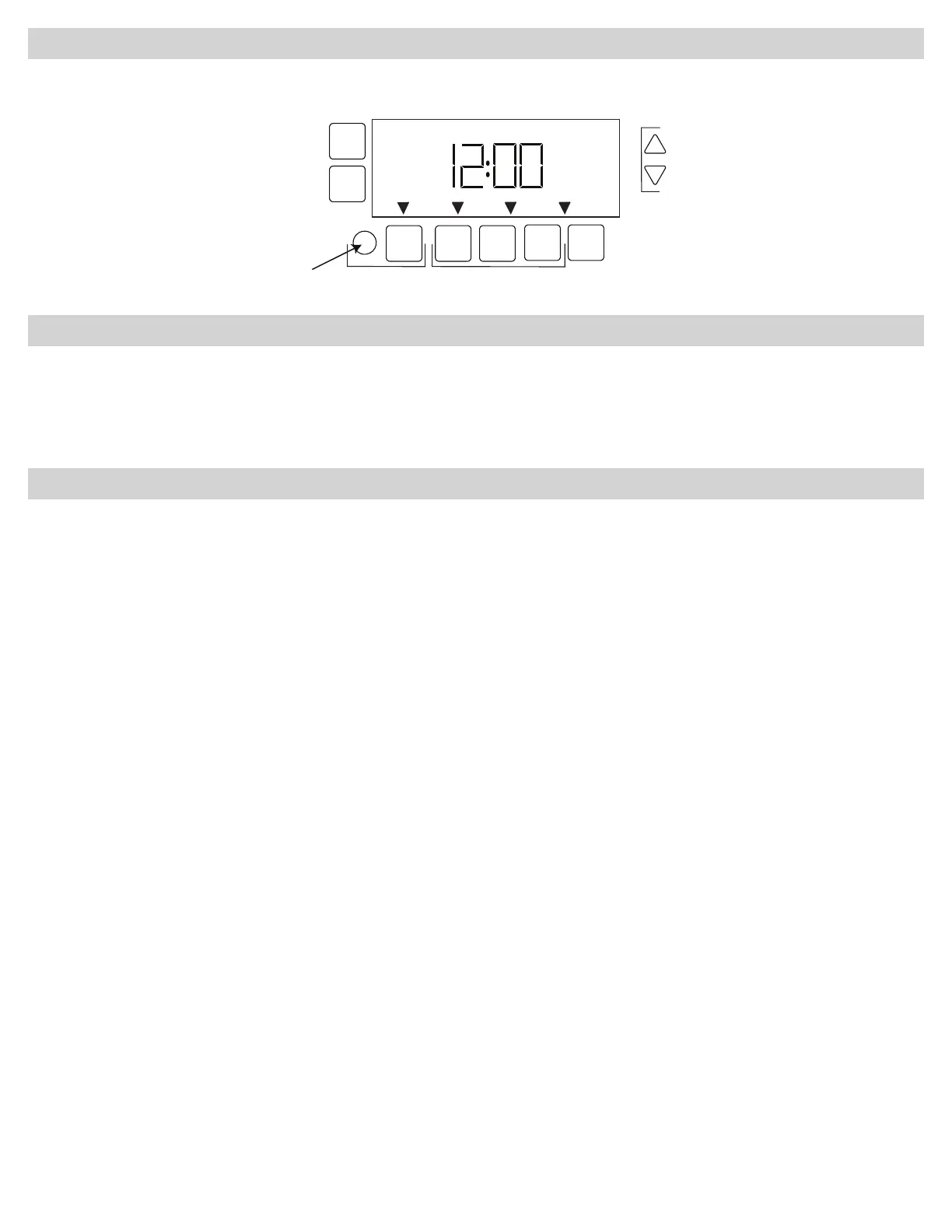

Resetting the Timer
The Reset command enables users to reboot the timer. To reset the timer, press the reset button.
NOTE: The timer does not erase the congured settings during a reset.
To clear the timer memory, press and release the reset button and then immediately press and hold the ENTER/NEXT until MEMCLR followed
by DONE appears on the screen. Release ENTER/NEXT. The following occurs:
• Allcalendarandclockinformationiserased
• Alleventsareerased
• TheSeasonalAdjustoffsetvalueiserased
• TheDSTcommandisautomaticallysettoON
Time Switch
• InputVoltage:120to277VAC,50/60Hz
• PowerConsumption”7wattsmaximum
Switch Ratings: 30 A Inductive & Resistive @ 24 VAC,
120-277 VAC, 16 FLA, 96 LRA @ 120 VAC;
17 FLA, 80 LRA @ 240 VAC 20A Resistive @ 28 VDC;
5 A Tungsten @ 120 VAC - 277 VAC
Events: Time switch can support up to 3 timed ON and 3 timed OFF events (1 ON/OFF event for high, low, and auxiliary circuits)
Clock Backup: Up to 100-hour Supercapacitor
Minimum ON or OFF time: 1 minute
Maximum ON or OFF time: 23 hours, 59 minutes
Shipping Weight: 2.5 lb. (1.1 kg)
Enclosures: Type 3R indoor/outdoor lockable metal enclosure
Knockouts: Combination 1/2 - 3/4 inch size, 1 on back and each side, 2 on bottom
Wire Size: AWG #10 through #18
Reset
Button
LOAD LOAD LOAD LOAD
1234
OFF OFFOFF
OFF
MODE
DAY
+
-
C
L
E
A
R
E
N
T
R
Y
HI LO
OFF
CLEAR MEM
AUX
ON/
OFF
ON/
OFF
ON/
OFF
ON/
OFF
ENTER
NEXT
EVENT
AUTO
Figure 9 Setting the LO speed pump ON event
Clearing the Timer Memory
Specifications
