Forklift RFID System Installation Guide 13

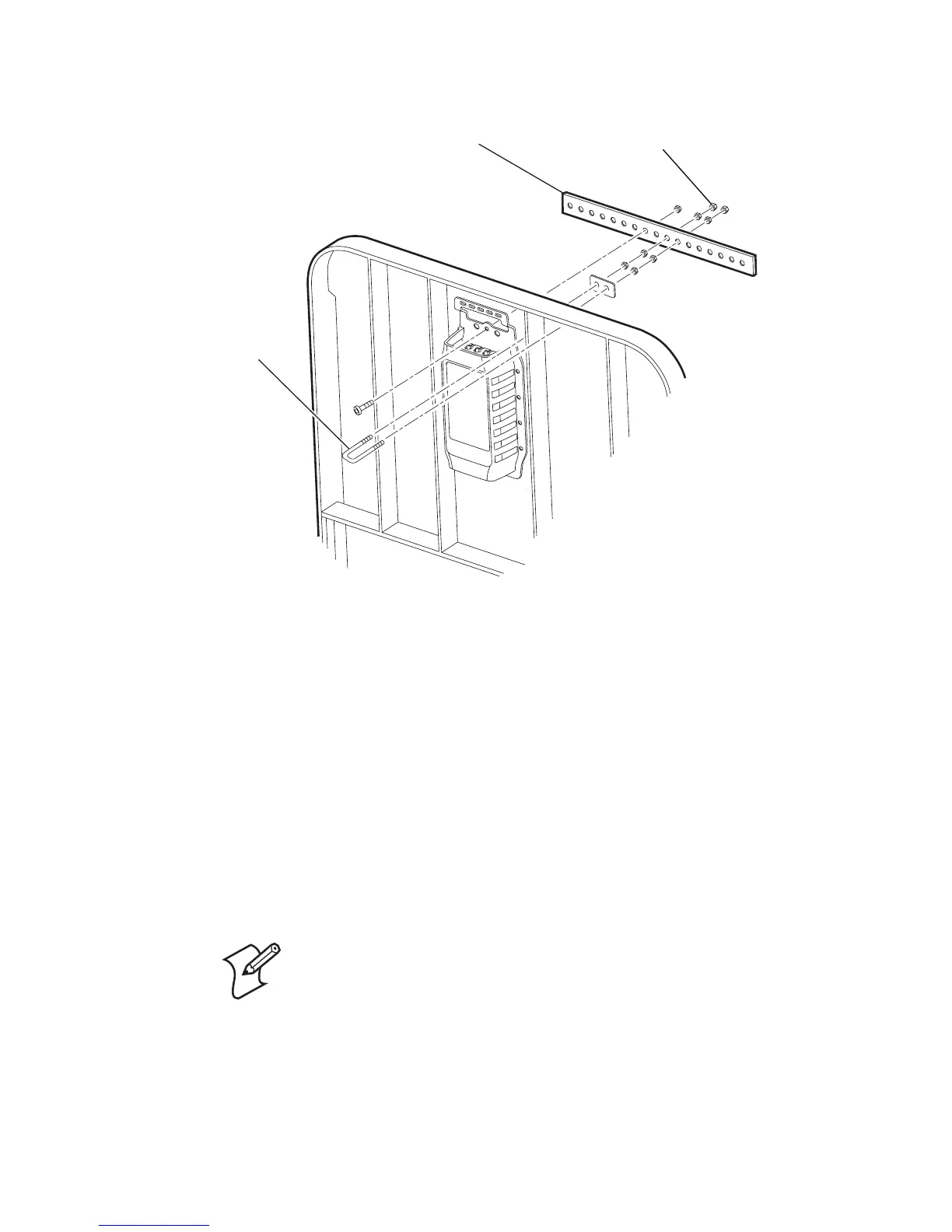

Installing an IV7: This illustration provides an example of how you can install
the IV7 to the forklift load backrest.
To install the IV7
1 Study the previous illustration.
2 Attach the top of the IV7 to one of the mounting straps (18.0
in). You can either use one screw that is inserted in the center
hole of the IV7 baseplate or you can use two screws that are
inserted in the outer holes.
3 Use two U-bolts to secure the mounting strap (with the IV7)
to the load backrest. You can either mount the IV7 so that it
faces the forks or it faces the driver.
4 Use two U-bolts to secure the other mounting strap to the
load backrest.
Note: You may need to use extra hex nuts on the
U-bolts to ensure that the IV7 does not extend into
the area where a pallet or container could damage it.
Cap
(12 places)
Mounting strap
(2 places)
U-bolt
(4 places)
